Product Description

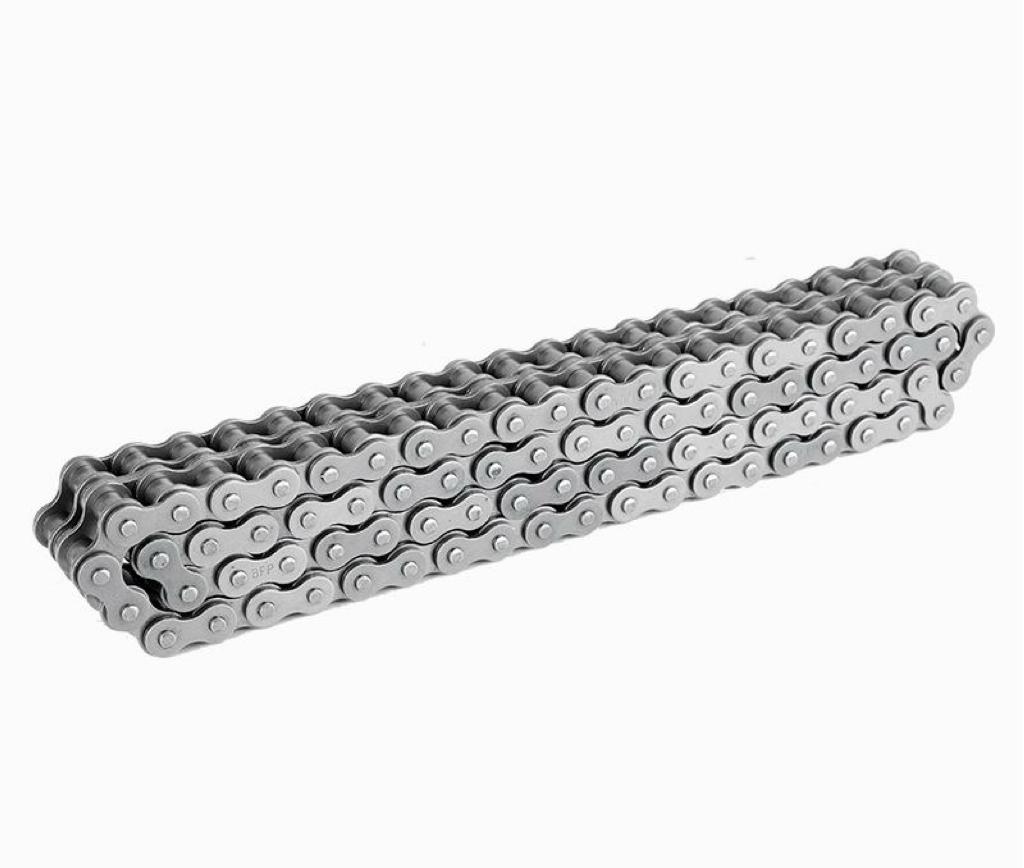

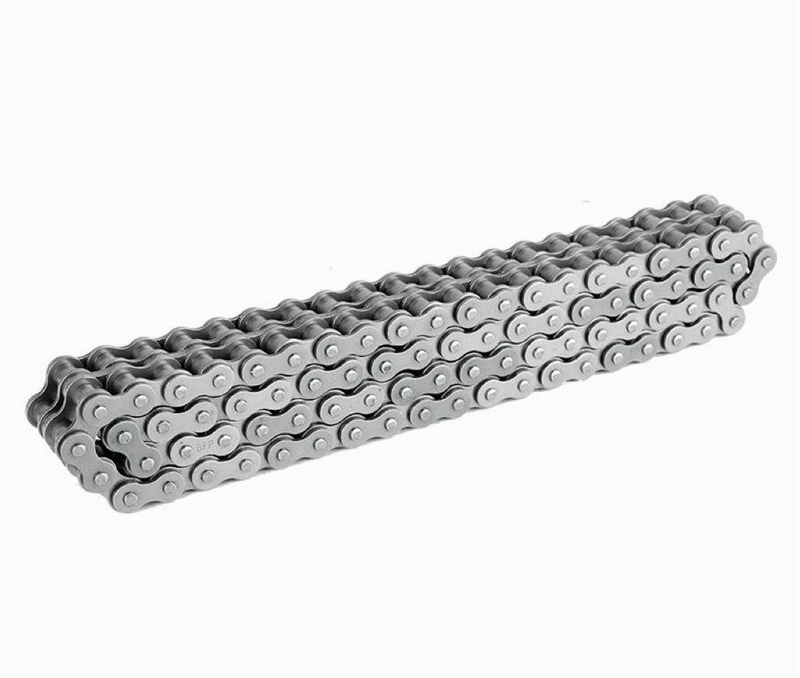

X3 series high performance roller chains are based on optimized design , advanced technology and excellent quality control, fatigue strength is 60 percent more than IS0 606 standard roller chain of the same specification, and the wear resistant is increased.
Technical Data Sheet
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d max | L max | Lc max | h2 max | t/T | Pt | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| *06BX3-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | - | 10.0/2248 | 11.00 | 0.43 |
| 08BX3-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | - | 21.0/4721 | 23.10 | 0.74 |
| 10BX3-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | - | 28.5/6407 | 31.35 | 1.00 |
| 12BX3-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | - | 33.0/7418 | 36.30 | 1.23 |
| 16BX3-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.10 | - | 70.0/15736 | 77.00 | 2.90 |
| 20BX3-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.50 | 4.50/3.50 | - | 106.7/23986 | 117.37 | 3.96 |
| 24BX3-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.00/4.80 | - | 176.0/39565 | 193.60 | 7.60 |
| 28BX3-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.50/6.00 | - | 230.0/51704 | 253.00 | 9.10 |
| 32BX3-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.00/6.00 | - | 280.0/62944 | 308.00 | 10.97 |
| 06BX3-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.40 | 24.40 | 8.20 | 1.30 | 10.24 | 18.5/4159 | 20.35 | 0.82 |
| 08BX3-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.00 | 32.20 | 11.80 | 1.60 | 13.92 | 36.0/8093 | 39.60 | 1.43 |
| 10BX3-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.50 | 14.70 | 1.70 | 16.59 | 55.6/12499 | 61.16 | 1.97 |
| 12BX3-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.00 | 43.60 | 16.00 | 1.85 | 19.46 | 63.5/14275 | 69.85 | 2.47 |
| 16BX3-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.00 | 69.30 | 21.00 | 4.15/3.10 | 31.88 | 121.9/27403 | 134.09 | 5.80 |
| 20BX3-2 | 31.750 | 19.05 | 19.56 | 10.19 | 7.80 | 81.50 | 26.50 | 4.50/3.50 | 36.45 | 211.2/47478 | 232.32 | 7.70 |
| 24BX3-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.70 | 106.20 | 33.20 | 6.00/480 | 48.36 | 308.0/69238 | 338.80 | 14.34 |
| 28BX3-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.60 | 129.10 | 36.70 | 7.50/6.00 | 59.56 | 414.0/93067 | 455.40 | 17.76 |
| 32BX3-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.60 | 129.60 | 42.00 | 7.00/6.00 | 58.55 | 504.0/113299 | 554.40 | 22.47 |
| *Straight side plates | ||||||||||||
