S4.5M Type Timing Belt

Availability:

Quantity:



Inquire Add to Basket

Product Description

The S4.5M Type Timing Belt is a high - performance power transmission solution designed to meet the exacting requirements of modern industrial and mechanical applications. With its advanced design and use of premium materials, it offers reliable and efficient motion transfer, making it an essential component in a wide range of systems.

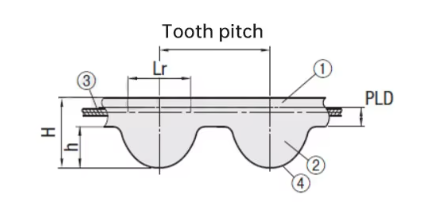

Technical Data Sheet

微信图片_20250220131638

Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number
S4.5M-180	180	40	S4.5M-347	347	77	S4.5M-504	504	112
S4.5M-198	198	44	S4.5M-351	351	78	S4.5M-518	518	115
S4.5M-203	203	45	S4.5M-360	360	80	S4.5M-558	558	124
S4.5M-225	225	50	S4.5M-369	369	82	S4.5M-563	563	125
S4.5M-252	252	56	S4.5M-387	387	86	S4.5M-567	567	126
S4.5M-275	275	61	S4.5M-396	396	88	S4.5M-612	612	136
S4.5M-279	279	62	S4.5M-414	414	92	S4.5M-630	630	140
S4.5M-284	284	63	S4.5M-437	437	97	S4.5M-653	653	145
S4.5M-297	297	66	S4.5M-441	441	98	S4.5M-675	675	150
S4.5M-315	315	70	S4.5M-450	450	100	S4.5M-711	711	158
S4.5M-329	329	73	S4.5M-468	468	104	S4.5M-801	801	178
S4.5M-333	333	74	S4.5M-486	486	108	S4.5M-864	864	192
S4.5M-338	338	75	S4.5M-500	500	111	S4.5M-905	905	201

China Belt manufacturer, Chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts, step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
