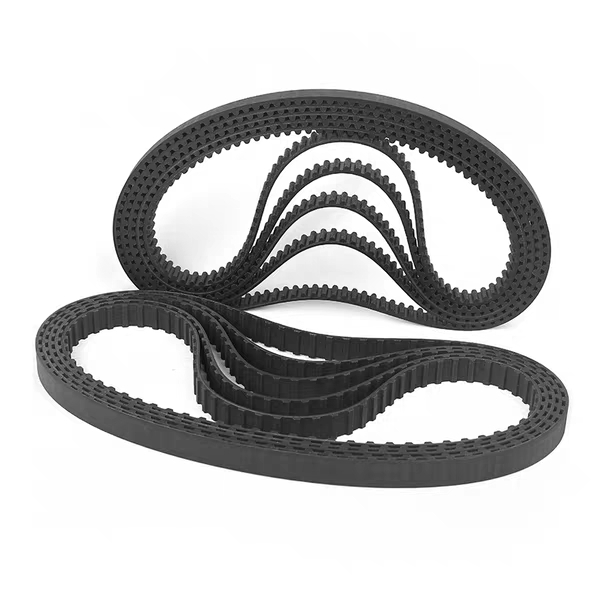

T Type Timing Belt

Availability:

Quantity:



Inquire Add to Basket

Product Description

The T20 Type Timing Belt is a high - performance power transmission solution engineered to meet the demands of applications that require substantial power transfer, precision, and reliability. With its advanced design and use of top - grade materials, it serves as a crucial component in a wide variety of industrial and mechanical systems.

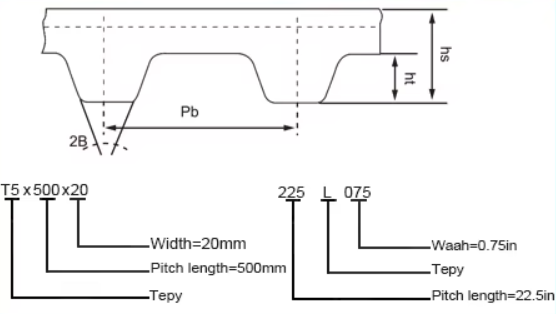

Technical Data Sheet

Type	Pitch (mm) pb	Tooth height (mm) ht	Belt thickness (mm) hs	Angle 2B°
MXL	2.032	0.51	1.22	40
XXL	3.175	0.76	1.52	50
XL	5.080	1.27	2.30	50
L	9.525	1.91	3.6	40
H	12.70	2.29	4.3	40
XH	22.225	6.35	11.2	40
XXH	31.750	9.53	15.7	40
T2.5	2.5	0.7	1.30	40
T5	5	1.2	2.2	40
T10	10	2.5	4.5	40
T20	20	5	8	40
AT5	5	1.5	2.7	50
AT10	10	2.5	5	50
AT20	20	5	8	50

China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
