H Type Timing Belt

Availability:

Quantity:



Inquire Add to Basket

Product Description

This round tooth belt enables distribution of load stress uniformy over the entire belt tooth.Since the belt tooth engages with the pulley groove without any interference, stress concentration at the root of the belt tooth can be eliminated. This belt can be used as an alternative for chains and gears.

Technical Data Sheet

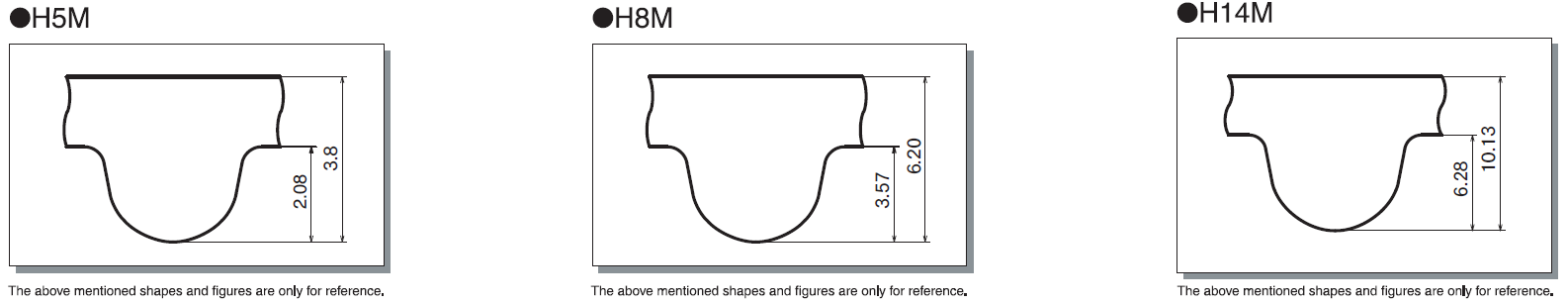

10001

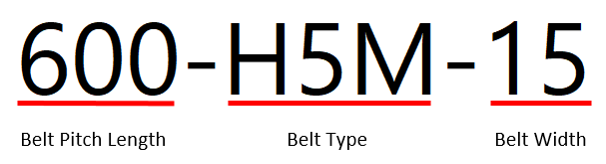

10002

Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number
145 H	368	29	430 H	1092.2	86	760 H	1930.4	152
185 H	470	37	435 H	1104.9	87	770 H	1955.8	154
200 H	508	40	440 H	1117.6	88	780 H	1981.2	156
210 H	533	42	445 H	1130.3	89	800 H	2032	160
220 H	559	44	450 H	1143	90	810 H	2032	162
225 H	572	45	460 H	1168.4	92	830 H	2108.2	166
230 H	584	46	465 H	1181.1	93	840 H	2133.6	168
240 H	610	48	470 H	1193.8	94	850 H	2159	170
245 H	622	49	480 H	1219.2	96	870 H	2209.8	174
250 H	635	50	485 H	1231.9	97	880 H	2235.2	176
255 H	648	51	490 H	1244.6	98	900 H	2286	180
260 H	660	52	500 H	1270	100	940 H	2387.6	188
270 H	686	54	510 H	1295.4	102	950 H	2413	190
280 H	711	56	515 H	1308.1	103	960 H	2438.4	192
285 H	724	57	520 H	1320.8	104	980 H	2489.2	196
290 H	737	58	525 H	1333.5	105	1000 H	2540	200
300 H	762	60	530 H	1346.2	106	1020 H	2590.8	204
310 H	787	62	540 H	1371.6	108	1050 H	2667	210
315 H	800	63	550 H	1397	110	1070 H	2717.8	214
320 H	813	64	560 H	1422.4	112	1100 H	2794	220
330 H	838	66	570 H	1447.8	114	1120 H	2844.8	224
340 H	864	68	580 H	1473.2	116	1130 H	2870.2	226
345 H	876	69	590 H	1498.6	118	1140 H	2895.6	228
350 H	889	70	600 H	1524	120	1150 H	2921	230
360 H	914	72	630 H	1600.2	126	1160 H	2946.4	232
365 H	927	73	640 H	1625.6	128	1180 H	2997.2	236
370 H	940	74	650 H	1651	130	1200 H	3048	240
375 H	953	75	660 H	1676.4	132	1250 H	3175	250
380 H	966	76	670 H	1701.8	134	1325 H	3365.5	265
385 H	978	77	680 H	1727.2	136	1350 H	3429	270
390 H	991	78	700 H	1778	140	1400 H	2556	280
395 H	1003	79	710 H	1803.4	142	1450 H	3683	290
400 H	1016	80	720 H	1828.8	144	1560 H	3962.4	312
405 H	1029	81	725 H	1841.5	145	1600 H	4064	320
410 H	1041	82	730 H	1854.2	146	1630 H	4140.2	326
420 H	1067	84	740 H	1879.6	148	1700 H	4318	340
425 H	1080	85	750 H	1905	150	2200 H	5588	440

Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number	Type	Pich Length	Teeth Number
145 H	368	29	430 H	1092.2	86	760 H	1930.4	152
185 H	470	37	435 H	1104.9	87	770 H	1955.8	154
200 H	508	40	440 H	1117.6	88	780 H	1981.2	156
210 H	533	42	445 H	1130.3	89	800 H	2032	160
220 H	559	44	450 H	1143	90	810 H	2032	162
225 H	572	45	460 H	1168.4	92	830 H	2108.2	166
230 H	584	46	465 H	1181.1	93	840 H	2133.6	168
240 H	610	48	470 H	1193.8	94	850 H	2159	170
245 H	622	49	480 H	1219.2	96	870 H	2209.8	174
250 H	635	50	485 H	1231.9	97	880 H	2235.2	176
255 H	648	51	490 H	1244.6	98	900 H	2286	180
260 H	660	52	500 H	1270	100	940 H	2387.6	188
270 H	686	54	510 H	1295.4	102	950 H	2413	190
280 H	711	56	515 H	1308.1	103	960 H	2438.4	192
285 H	724	57	520 H	1320.8	104	980 H	2489.2	196
290 H	737	58	525 H	1333.5	105	1000 H	2540	200
300 H	762	60	530 H	1346.2	106	1020 H	2590.8	204
310 H	787	62	540 H	1371.6	108	1050 H	2667	210
315 H	800	63	550 H	1397	110	1070 H	2717.8	214
320 H	813	64	560 H	1422.4	112	1100 H	2794	220
330 H	838	66	570 H	1447.8	114	1120 H	2844.8	224
340 H	864	68	580 H	1473.2	116	1130 H	2870.2	226
345 H	876	69	590 H	1498.6	118	1140 H	2895.6	228
350 H	889	70	600 H	1524	120	1150 H	2921	230
360 H	914	72	630 H	1600.2	126	1160 H	2946.4	232
365 H	927	73	640 H	1625.6	128	1180 H	2997.2	236
370 H	940	74	650 H	1651	130	1200 H	3048	240
375 H	953	75	660 H	1676.4	132	1250 H	3175	250
380 H	966	76	670 H	1701.8	134	1325 H	3365.5	265
385 H	978	77	680 H	1727.2	136	1350 H	3429	270
390 H	991	78	700 H	1778	140	1400 H	2556	280
395 H	1003	79	710 H	1803.4	142	1450 H	3683	290
400 H	1016	80	720 H	1828.8	144	1560 H	3962.4	312
405 H	1029	81	725 H	1841.5	145	1600 H	4064	320
410 H	1041	82	730 H	1854.2	146	1630 H	4140.2	326
420 H	1067	84	740 H	1879.6	148	1700 H	4318	340
425 H	1080	85	750 H	1905	150	2200 H	5588	440

China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
