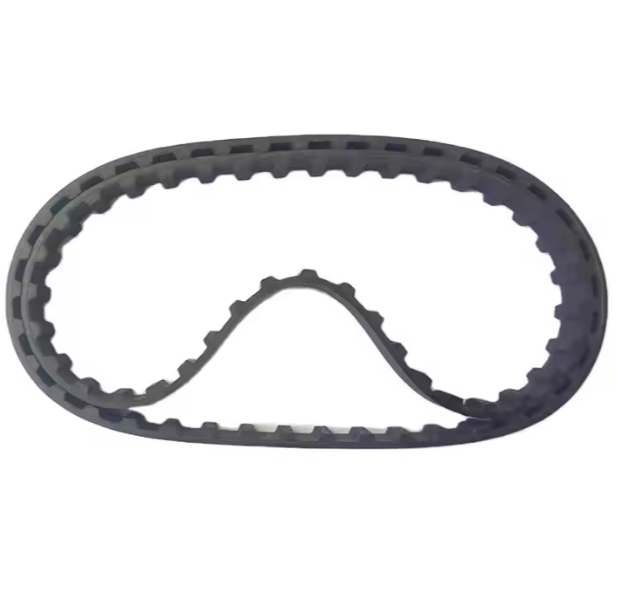

XL Timing Belt

Availability:
Quantity:

Product Description

BELT.pdf

XL Timing Belt

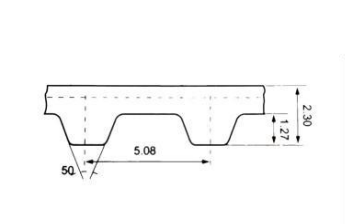

Technical Data Sheet



XL  037(9.5mm)
ITEM TEETH STRUCTURE Dp  O.D.(De) W L K X Dm  d E  Flange I.D. Flange Type
10XL 10 A\B 16.17 15.66 15 23 11 - 9.5 6 - 23 12 F-102312
11XL 11 A\B 17.79 17.28 15 23 11 - 9.5 6 - 23 13 F-102313
12XL 12 A\B 19.4 18.9 15 23 11 - 10 6 - 25 14 F-102514
14XL 14 A\B 22.64 22.13 15 23 11 - 15 6 - 28 18 F-102818
15XL 15 A\B 24.26 23.75 15 23 11 - 15 6 - 28 18 F-102818
16XL 16 A\B 25.87 25.36 15 23 11 - 16 6 - 31 20 F-103120
18XL 18 A\B 29.11 28.6 15 23 11 - 22 6 - 33 22 F-103322
19XL 19 A\B 30.72 30.22 15 23 11 - 24 6 - 35 22 F-103522
20XL 20 A\B 32.34 31.83 15 23 11 - 27 6 - 38 26 F-103826
21XL 21 A\B 33.96 33.45 15 23 11 - 28 6 - 38 26 F-103826
22XL 22 A\B 35.57 35.07 15 23 11 - 29 6 - 43 28 F-104328
24XL 24 A\B 38.81 38.3 15 23 11 - 33 8 - 44 32 F-104432
25XL 25 A\B 40.43 39.92 15 23 11 - 38 8 - 44 32 F-104432
26XL 26 A\B 42.04 41.53 15 23 11 - 38 8 - 47 34 F-104734
28XL 28 A\B 45.28 44.77 15 23 11 - 38 8 - 48 36 F-104836
30XL 30 A\B 48.51 48 15 23 11 - 38 8 - 55 39 F-105539
32XL 32 A\B 51.74 51.24 16 23 11 - 38 8 - 57 41 F-155741
34XL 34 A\B 54.98 54.47 16 23 11 - 38 8 - 61 41 F-156141
36XL 36 A\B 58.21 57.7 16 25 11 - 38 8 - 61 41 F-156141
38XL 38 A\B 61.45 60.94 16 25 11 - 38 8 - 65 50 F-156550
40XL 40 A\B 64.68 64.17 16 25 11 - 38 8 - 69 50 F-156950
42XL 42 A\B 67.91 67.41 16 25 11 - 38 8 - 74 53 F-157453
44XL 44 A\B 71.15 70.64 16 25 11 5 38 8 - 78 58 F-157858
45XL 45 W 72.77 72.26 16 25 11 5 38 10 60 - - -
48XL 48 W 77.62 77.11 16 25 11 5 38 10 64 - - -
50XL 50 W 80.85 83.58 16 25 11 5 38 10 67 - - -
57XL 57 W 90.55 91.66 16 25 11 5 38 10 74 - - -
60XL 60 W 97.02 96.51 16 25 11 5 38 10 83 - - -
70XL 70 W 113.19 112.68 16 25 11 5 38 10 100 - - -
72XL 72 W 116.43 115.92 16 25 11 5 38 10 102 - - -


China  Belt  manufacturer, chinese  Belt  supplier, produce:  v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products. . We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
