Product Description

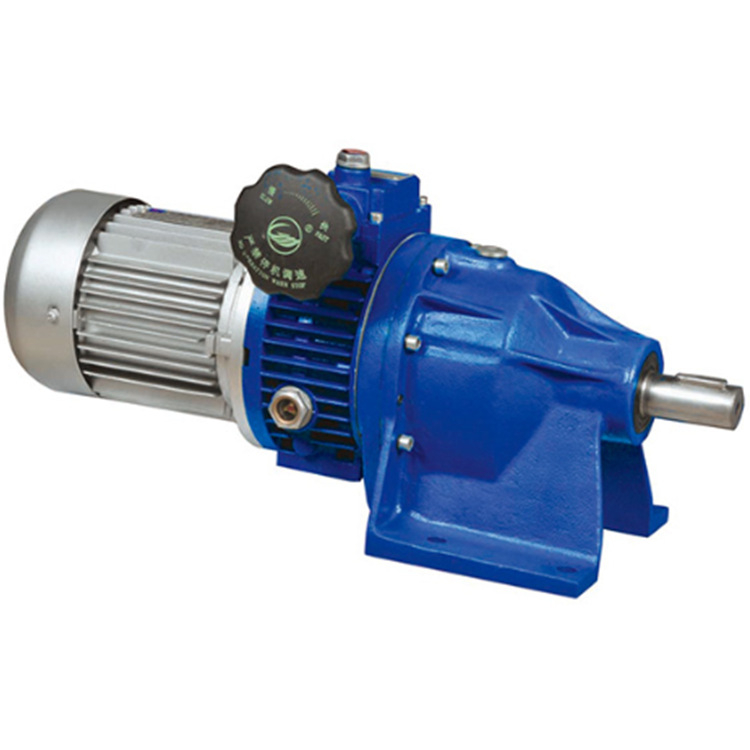

UD series planet cone-disk stepless speed variator
1.Brief introduction

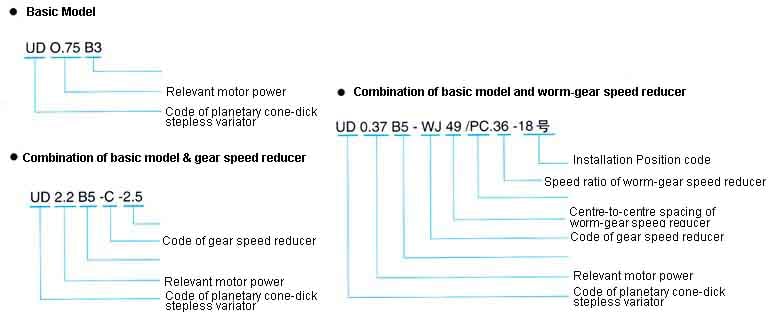

2.Model & mark
3.Performance parameter
4.Outline & installation size
5.Notice
6.WJ/F install the sketch map in hanging type
Technical Data Sheet
| Basic character table | ||||||
| TYPE | Power of motor kw | Input Speed r.p.m | Output Speed r.p.m | Output torque N.m | Skit possibility % | Temperature Increase |
| UD0.18 | 0.18 | 1500 | 950-165 | 1.5-3 | 3-8.8 | 46 |
| UD0.25 | 0.25 | 1 500 | 950-165 | 2-4 | 3-8.8 | 46 |
| UD0.37 | 0.37 | 1500 | 950-165 | 3-6 | 3-8.8 | 46 |
| UD0.55 | 0.55 | 1500 | 950- 165 | 4-8 | 3-8.8 | 46 |
| UD0.75 | 0.75 | 1500 | 950-165 | 6-12 | 3-8.8 | 46 |
| UD1.1 | 1.1 | 1500 | 950-165 | 9-18 | 3-8.8 | 46 |
| UD1.5 | 1.5 | 1500 | 950-165 | 12-24 | 3-8.8 | 46 |
| UD2.2 | 2.2 | 1500 | 1000-200 | 18-36 | 3-8.8 | 48 |
| UD3 | 3 | 1500 | 1000-200 | 24-48 | 3-8.8 | 48 |
| UD4 | 4 | 1500 | 1000-200 | 32-64 | 3-8.8 | 48 |
| UD5.5 | 5.5 | 1500 | 1000-200 | 45-90 | 3-8.8 | 50 |
| UD7.5 | 7.5 | 1500 | 1000-200 | 59-118 | 3-8.8 | 50 |
| Characteristic table of basic model &NMRV worm-gear speed reducer | Table 2 | ||||||
| Input power (w) | 22 | 3 | 4 | 55 | 75 | ||
| Input rotation Tmm | 1500r/min | ||||||
| tmm | Allowable output torque | ||||||
| UDC | 25 | 80-400 | 00-44 | 118-50 | 157-78 | 216-108 | 294-147 |
| 3.3 | 60-300 | 118-56 | 158-75 | 212-100 | 298-140 | 398-196 | |
| 5 | 40-200 | 176-88 | 235-118 | 314-157 | 441-216 | 558-294 | |
| Charactericstic table of basic model & first gear speed reducer Table 3 | |||||
| TYPE | Matching motor | Output rotation r/min | Output torque N.m | Weight kg | |
| Type | Power kw | ||||
| UD0.55-40D | Y801-4B5 | 0.55 | 195-35 | 19-38 | 50 |
| UD0.75-40D | Y802-4B5 | 0.75 | 28-56 | 50 | |

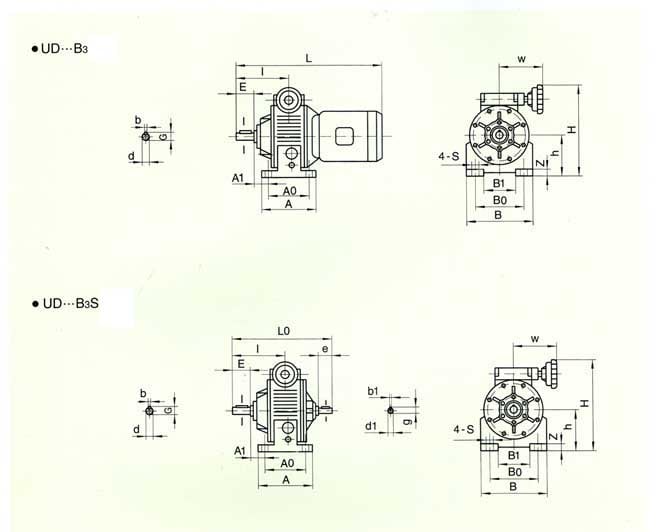

| Figure size &installation size for UD--Bs &B3S | Table 5 | |||||||||||||||||||||
| Type | Installation size Output shaft size | Input shaft size | Figure size | |||||||||||||||||||
| h | A0 | A1 | B0 | B1 | Z | S | d(k6) | b | G | E | d,(k6) | b1 | g | e | A | B | I | W | H | L0 | L | |
| UD0.18 | 66 | 85 | 2 | 80 | 50 | 10 | 9 | 11 | 4 | 12.5 | 30 | - | - | - | - | 105 | 109 | 74 | 95 | 170 | - | 312 |
| UD0.25 | 70 | 94 | 48 | 106 | 70 | 10 | 9 | 14 | 5 | 16 | 30 | 14 | 5 | 16 | 30 | 120 | 136 | 94 | 105 | 185 | 208 | 346 |
| UD0.37 | 75 | 94 | 48 | 110 | 75 | 10 | 9 | 14 | 5 | 16 | 30 | 14 | 5 | 16 | 30 | 120 | 145 | 94 | 105 | 195 | 208 | 346 |
| UD0.55 | 90 | 105 | 72 | 130 | 90 | 15 | 11 | 19 | 6 | 21.5 | 40 | 19 | 6 | 21.5 | 40 | 135 | 170 | 121 | 110 | 230 | 240 | 400 |
| UD0.75 | 90 | 105 | 72 | 130 | 90 | 15 | 11 | 19 | 6 | 21.5 | 40 | 19 | 6 | 21.5 | 40 | 135 | 170 | 121 | 110 | 230 | 240 | 400 |
| UD1.1 | 106 | 125 | 85 | 160 | 104 | 15 | 13 | 24 | 8 | 27 | 40 | 22 | 6 | 24.5 | 40 | 150 | 200 | 141 | 135 | 250 | 270 | 455 |
| UD1.5 | 125 | 140 | 95 | 180 | 130 | 18 | 13 | 24 | 8 | 27 | 50 | 22 | 6 | 24.5 | 50 | 170 | 230 | 154 | 135 | 290 | 305 | 500 |
| UD2.2 | 150 | 230 | 25 | 245 | 190 | 25 | 14 | 30 | 8 | 33 | 60 | 24 | 8 | 27 | 50 | 270 | 300 | 191 | 166 | 350 | 387 | 588 |
| UD3 | 588 | |||||||||||||||||||||
| UD4 | 608 | |||||||||||||||||||||
| UD5.5 | 200 | 250 | 33 | 315 | 225 | 30 | 18 | 35 | 10 | 38 | 70 | 32 | 10 | 35 | 60 | 290 | 365 | 201 | 194 | 447 | 428 | 714 |
| UD7.5 | 754 | |||||||||||||||||||||

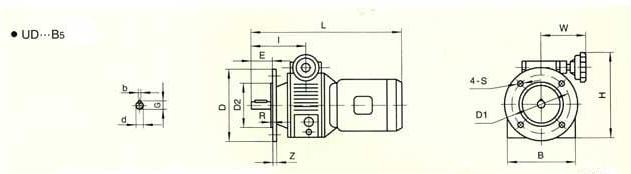

| UD B5 | Table 6 | ||||||||||||||
| Type | Installation Size | Output shaft size | Figure size | ||||||||||||
| D1 | D2(g6) | Z | R | S | d(k6) | b | G | E | D | B | - | w | H | L | |
| UD0.18 | 75 | 60 | - | 3 | M5 | 11 | 4 | 12.5 | 30 | 90 | 109 | 74 | 95 | 156 | 312 |
| UD0.25 | 115 | 95 | 10 | 3 | 9 | 14 | 5 | 16 | 30 | 140 | 136 | 94 | 105 | 183 | 346 |
| UD0.37 | 115 | 95 | 10 | 3 | 9 | 14 | 5 | 16 | 30 | 140 | 145 | 94 | 105 | 188 | 346 |
| UD0.55 | 165 | 130 | 13 | 3.5 | 11 | 19 | 6 | 21.5 | 40 | 200 | 170 | 121 | 110 | 225 | 400 |
| UD0.75 | 165 | 130 | 13 | 3.5 | 11 | 19 | 6 | 21.5 | 40 | 200 | 170 | 121 | 110 | 225 | 400 |
| UD1.1 | 165 | 130 | 13 | 3.5 | 11 | 24 | 8 | 27 | 40 | 200 | 200 | 141 | 135 | 240 | 455 |
| UD1.5 | 165 | 130 | 13 | 3.5 | 11 | 24 | 8 | 27 | 50 | 200 | 230 | 154 | 135 | 285 | 500 |
| UD2.2 | 215 | 180 | 16 | 4 | 15 | 28 | 8 | 33 | 60 | 250 | 300 | 191 | 166 | 350 | 588 |
| UD3 | 215 | 180 | 16 | 4 | 15 | 28 | 8 | 33 | 60 | 250 | 300 | 191 | 166 | 350 | 608 |
| UD4 | 215 | 180 | 16 | 4 | 15 | 28 | 8 | 33 | 60 | 250 | 300 | 191 | 166 | 350 | 608 |
| UD5.5 | 265 | 230 | 20 | 5 | 19 | 38 | 10 | 38 | 70 | 300 | 365 | 201 | 194 | 474 | 714 |
| UD7.5 | 265 | 230 | 20 | 5 | 19 | 38 | 10 | 38 | 70 | 300 | 365 | 201 | 194 | 474 | 754 |

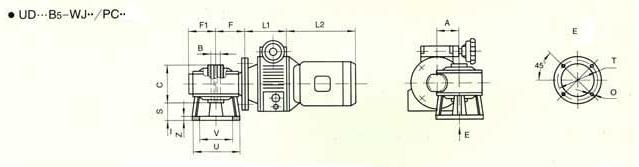

| UD Bs WJ/PC | Table 7 | ||||||||||||
| Type | A | B (H7) | C | F | F1 | L1 | L2 | U | V (H8) | T | Z | S | O |
| UD0.18B5-WJ40/PC | 40 | 19 | 64 | 60 | 56 | 73 | 225 | 110 | 60 | 87 | 9 | 29 | 4x9 |
| UD0.25B5-WJ49/PC | 49 | 25 | 82 | 68 | 64 | 102 | 242 | 125 | 70 | 105 | 10 | 44 | 4x9 |
| UD0.37B5-WJ49PC | 49 | 25 | 82 | 68 | 64 | 102 | 242 | 125 | 70 | 105 | 10 | 44 | 4x9 |
| UD0.55B5 -WJ62/PC | 62 | 25 | 120 | 90 | 86 | 132 | 257 | 180 | 115 | 150 | 11 | 57 | 4x11 |
| UD0.75B5-WJ62/PC | 62 | 25 | 120 | 90 | 86 | 132 | 257 | 180 | 115 | 150 | 11 | 57 | 4x11 |
| UD1.1B5-WJ87/PC | 87 | 35 | 140 | 121 | 116 | 158 | 262 | 210 | 152 | 180 | 15 | 80 | 4x13 |
| UD1.5B5-WJ87/PC | 87 | 35 | 140 | 121 | 116 | 169 | 287 | 210 | 152 | 180 | 15 | 80 | 4x13 |
