Product Description
Type:A Type Steel Agricultural Chains
Material:steel
Configuration:roller
Other characteristics:lube-free, heat-resistant
Chain pitch:41.4MM,42.01MM
Model: A550/A555/A557/A620
Surface treatment: shot peening, zinc plating.
Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.

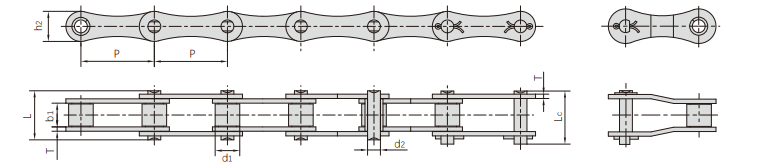

Parameter
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Tensile strength | Average tensile strength | Weight per meter | ||
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
A550 | 41.40 | 16.87 | 19.81 | 7.19 | 35.0 | 38.0 | 19.3 | 2.80 | 39.10/8886 | 51.2 | 1.79 |
A555 | 41.40 | 16.87 | 12.70 | 7.19 | 29.1 | 32.0 | 19.3 | 3.10 | 39.10/8886 | 56.0 | 1.60 |
A557 | 41.40 | 17.78 | 20.24 | 8.00 | 37.4 | 40.6 | 23.1 | 3.10 | 55.61/12639 | 74.3 | 2.45 |
A620 | 42.01 | 17.91 | 24.51 | 7.19 | 41.8 | 45.2 | 20.2 | 3.25 | 39.10/8886 | 55.1 | 2.18 |
