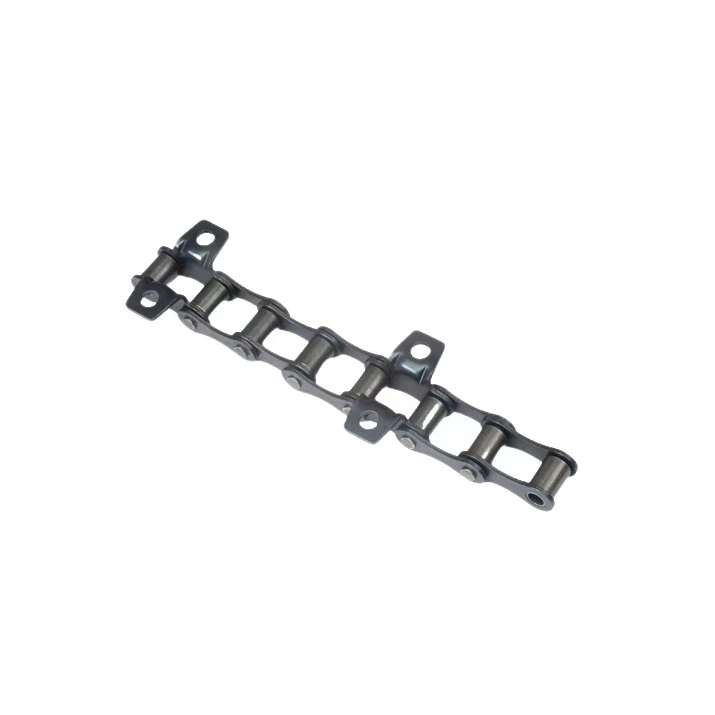

O-Ring Agricultural Chains

Availability:
Quantity:

Product Description

Type:O-Ring agricultural chains

Material:steel

Model:C2040HOR-WK1F1,C2060F77OR,C2062HORSDF1

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:30.0MM-40.2MM

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.




Parameter

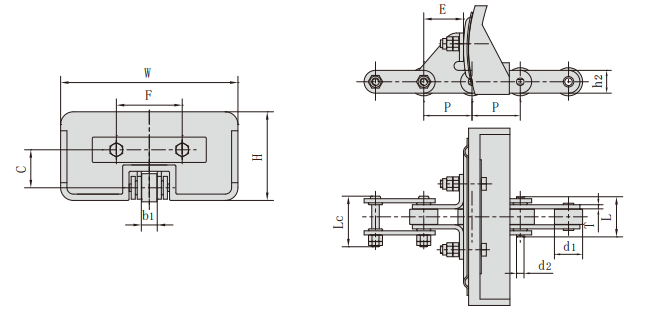

产品图纸1

Chain No Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Plate
dimension
Attachment
dimension
Tensile
strength
P d1
max
b1
min
d2
max
L
ma x
Lc
max
h2
max
T
max
C  W F H E Q
min
mm mm mm mm mm mm mm mm mm   mm mm mm mm kN/lbf
C2062H     ORSDF1 38.1 22.23 12.57 5.94 31.7 40.0 18.0 3.25 30.0 140.0 52.0 70.0 31.4 31.8/7150

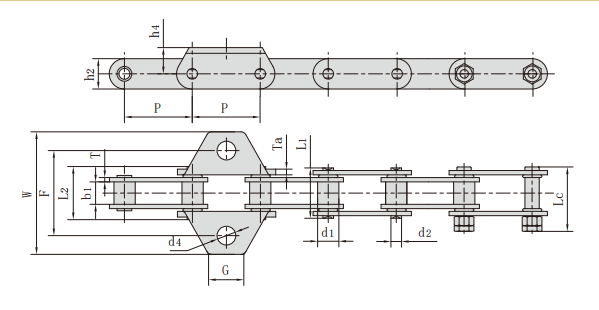

产品图纸2

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Plate
dimension
Tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L1
max
L2
max
Lc
max
h2
  max
T
max
Q
min
q
mm mm mm mm mm mm mm   mm mm kN/lbf kg/m
C2040HOR-WK1F1 25.4 7.95 7.85 3.96 20.5 20.5 26.0 12 2.03 14.1/3170 0.78
C2060F77 OR 38.1 11.91 12.57 5.95 28.5 30.1 37.1 17 2.42 39.2/8813 1.41
Chain No. P Ta G F W h4 d4
mm mm mm mm mm mm mm
C2040HOR-WK1F1 25.4 2.03 37.4 62.0 80.0 9.5 7.0
C2060F77 OR 38.1 3.25 20.0 48.0 69.0 14.7 10.5
