Product Description

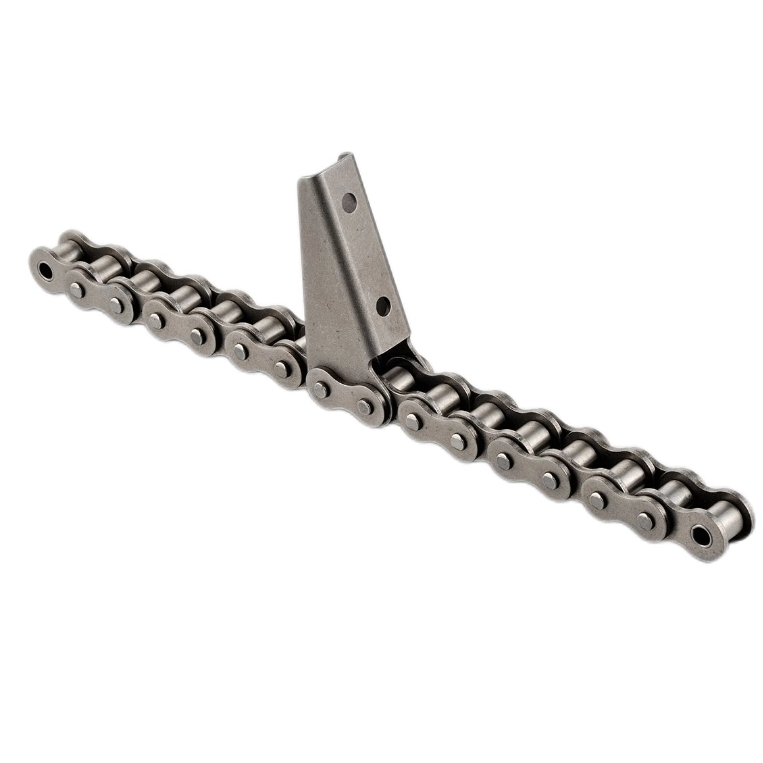

Type:ZGS38 combine chain with attachments
Material:steel
Configuration:roller
Other characteristics:lube-free, heat-resistant
Chain pitch:30.0MM-40.2MM

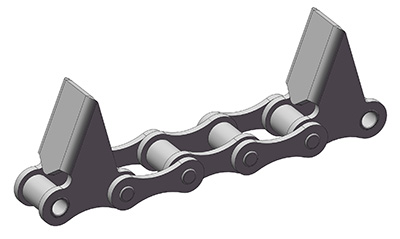

Model: ZGS38,ZGS38HF7,ZGS38F42,CZGS38F10,CZGS38F11,CZGS38F13,CZGS38HF36,ZGS38F2,ZGS38F6K1,ZGS38F10K1,ZGS38HF13K1F1,ZGS38HF12K1F1,ZGS38F18,ZGS38F42K1,ZGS38F43K1,ZGS38F46,CZGS38F10K1,CZGS38F13K1F1,ZGS38F5,ZGS38F8,ZGS38F145D,ZGS38F44,ZGS38SDF4,ZGS38F35,ZGS38SDF4,ZGS38F35,ZGS38F47,ZGS38F1,ZGS38F3,ZGS38SDF1,ZGS38SDF5,ZGS38SDF6,ZGS38F32SD,ZGS38K11,CZGS38F10SD,CZGS38F11SDF1,ZGS38-C6E,ZG538-C6EF1,ZG538-C6EF2,ZG538-C6EF3,ZG538-C6EF4,ZG538-CPEF6,ZGS38-CPEF3,ZGS38-CPEF1
Surface treatment: shot peening, zinc plating.
Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.

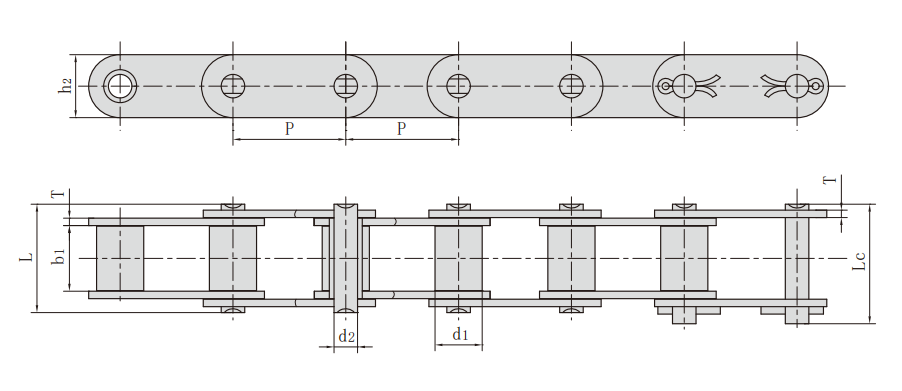

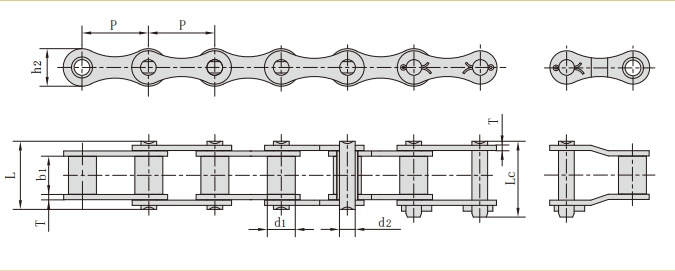

Parameter
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| ZGS38 | 38.0 | 16.00 | 22.0 | 9.00 | 39.0 | 43.0 | 21.5 | 3.0 | 45.0/10116 | 54.0 | 2.00 |
| ZGS38HF7 | 38.0 | 16.00 | 22.0 | 9.00 | 47.0 | 51.0 | 21.5 | 5.0 | 80.0/18000 | 88.0 | 2.74 |
| ZGS38F42 | 38.0 | 16.00 | 22.0 | 9.00 | 43.2 | 46.5 | 21.5 | 4.0 | 45.0/10116 | 54.0 | 2.43 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 ma x | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| m m | m m | m m | m m | m m | m m | m m | m m | kN/lbf | kN | kg/m | |
| CZG S38F10 | 38.0 | 15.88 | 22.0 | 7.92 | 39.0 | 43.0 | 21.3 | 3.0 | 45.0/10116 | 54.0 | 2.39 |
| CZG S38F11 | 38.0 | 15.88 | 22.0 | 7.92 | 37.1 | 41.0 | 21.2 | 2.5 | 30.0/6745 | 33.0 | 2.10 |
| CZGS38HF12 | 38.0 | 15.88 | 22.0 | 7.92 | 39.9 | 42.7 | 21.2 | 3.2 | 45.0/10116 | 54.0 | 2.42 |
| CZGS38F13 | 38.0 | 16.00 | 22.0 | 9.00 | 39.0 | 43.0 | 21.5 | 3.0 | 45.0/10116 | 54.0 | 2.42 |
| CZGS38HF36 | 38.0 | 15.88 | 22.0 | 7.92 | 40.5 | 44.0 | 21.3 | 3.5 | 50.0/11241 | 55.0 | 2.63 |

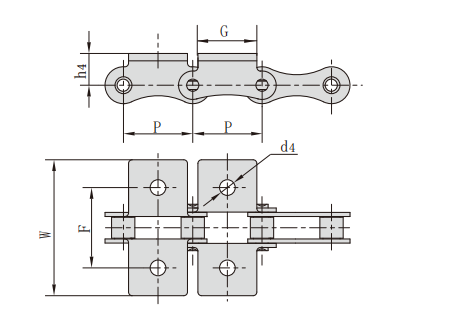

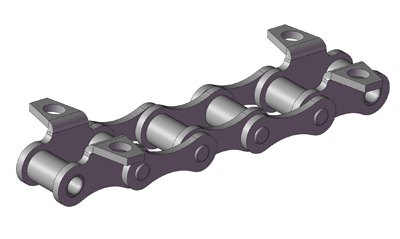

Chain No. | P | G | F | W | h4 | d4 |
| m m | m m | m m | m m | m m | m m | |
| ZG S38F2 | 38.0 | 16.0 | 52.0 | 71.5 | 19.6 | 11.0 |
| ZG S38F6K1 | 38.0 | 16.0 | 52.0 | 74.6 | 19.6 | 8.5 |
| ZG S38F10K1 | 38.0 | 20.0 | 52.0 | 72.0 | 17.0 | 8.4 |
| ZG S38F13K1F1 | 38.0 | 20.0 | 52.0 | 80.0 | 17.0 | 8.6 |
| ZG S38HF12K1F1 | 38.0 | 25.0 | 52.0 | 72.0 | 17.0 | 8.4 |
| ZG S38F18 | 38.0 | 16.0 | 52.0 | 69.6 | 19.6 | 8.5 |
| ZG S38F42K1 | 38.0 | 16.0 | 52.0 | 74.6 | 19.6 | 8.5 |
| ZG S38F43K1 | 38.0 | 16.0 | 52.0 | 74.6 | 19.6 | 11.0 |
| ZG S38F46 | 38.0 | 16.0 | 52.0 | 74.6 | 20.0 | 8.5 |

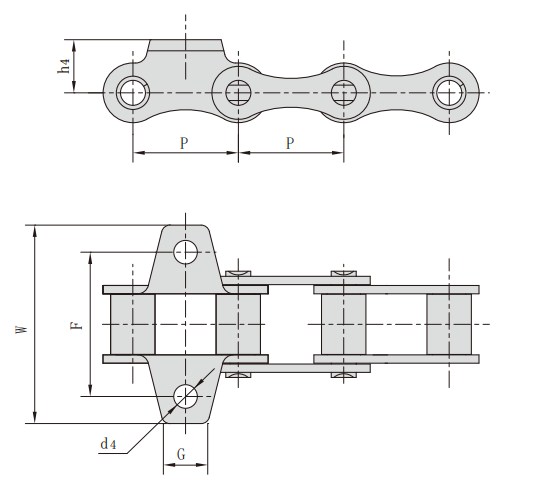

Chain No. | P | G | F | W | h4 | d4 |
| m m | m m | m m | m m | m m | m m | |
| CZGS38F10K1 | 38.0 | 20.0 | 52.0 | 72.0 | 17.0 | 8.4 |
| CZGS38F13K1F1 | 38.0 | 26.5 | 52.0 | 80.0 | 17.0 | 8.6 |

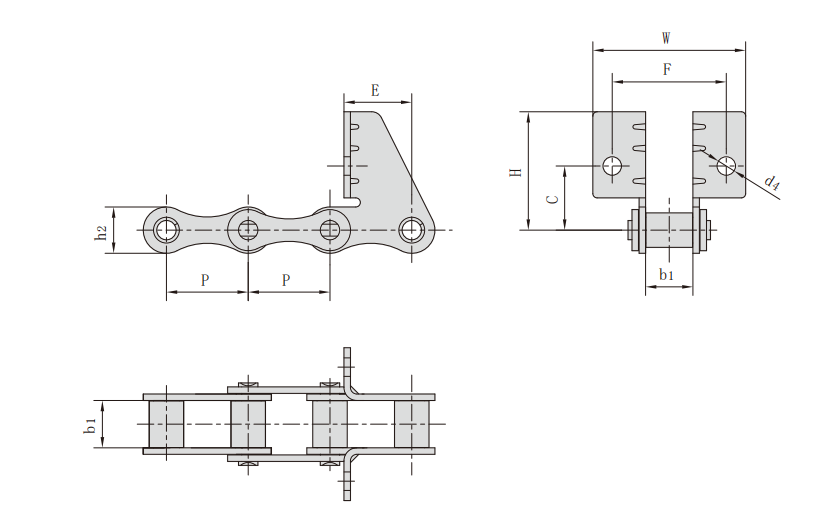

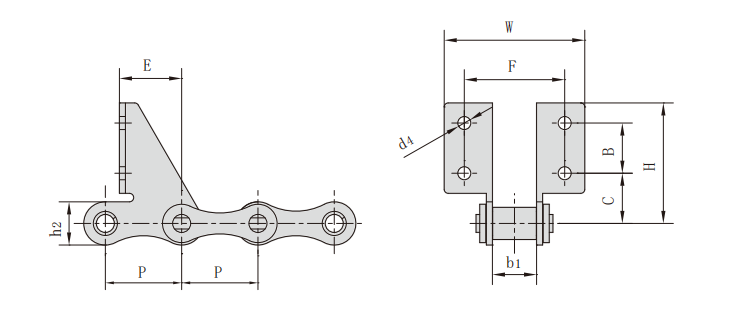

Chain No. | P | b1 | C | B | F | W | d4 | E | H | h2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| ZGS38F5 | 38.0 | 22.0 | 32.0 | 25.0 | 52.0 | 72.0 | 7.0 | 31.0 | 67.0 | 21.5 |
| ZGS38F8 | 38.0 | 22.0 | 32.0 | 25.0 | 52.0 | 68.0 | 7.0 | 31.0 | 67.0 | 21.5 |
| ZGS38F14SD | 38.0 | 22.0 | 25.0 | 25.0 | 50.0 | 70.0 | 6.5 | 31.0 | 60.0 | 21.5 |
| ZGS38F44 | 38.0 | 22.0 | 25.0 | 25.0 | 52.0 | 72.0 | 7.2 | 30.0 | 60.0 | 21.5 |
Chain No. | P | b1 | C | F | W | d4 | E | H | h2 |
| m m | m m | m m | m m | m m | m m | m m | m m | m m | |
| ZGS38SDF4 | 38.0 | 22.0 | 30.0 | 52.0 | 70.0 | 8.5 | 31.8 | 55.0 | 21.5 |
| ZGS38F35 | 38.0 | 22.0 | 29.8 | 53.0 | 71.0 | 8.7 | 31.3 | 55.0 | 21.5 |

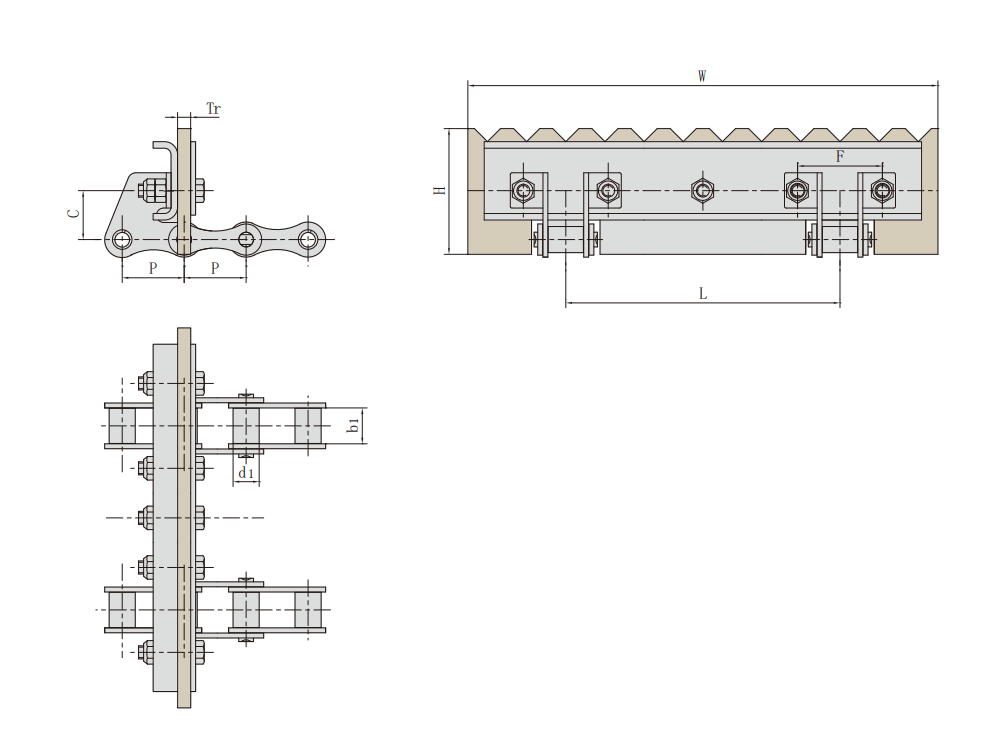

Chain No. | Pitch | Roller diameter | Width between inner plates | Rubber attachment dimension | ||||
| P | d1 max | b1 max | W max | L | H max | F | Tr | |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| ZGS38F47 | 38.0 | 16.0 | 22.0 | 480.0 | 360.0 | 77.0 | 52.0 | 8.0 |

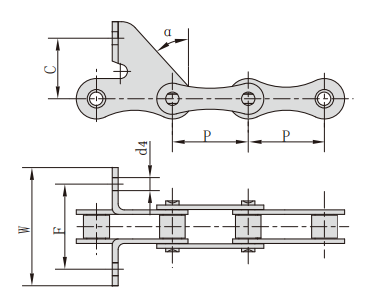

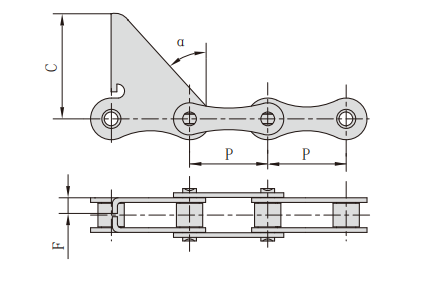

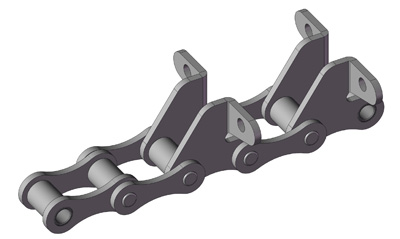

Chain No. | P | C | F | a |
| m m | m m | m m | ||
| ZGS38F1 | 38.0 | 60.0 | 14.0 | 32.5° |
| Chain No. | P | C | F | W | d4 | a |
| m m | m m | m m | m m | m m | ||
| ZGS38F3 | 38.0 | 30.0 | 52.0 | 68.4 | 6.50 | 43.5 |
| ZGS38SDF1 | 38.0 | 30.0 | 52.0 | 68.4 | 8.50 | 43.5° |
| ZGS38SDF5 | 38.0 | 30.0 | 52.0 | 68.0 | 8.60 | 40.5° |
| ZGS38SDF6 | 38.0 | 30.0 | 52.0 | 68.0 | 8.50 | 40.5° |
| ZGS38F32SD | 38.0 | 30.0 | 52.0 | 68.4 | 6.50 | 43.5° |

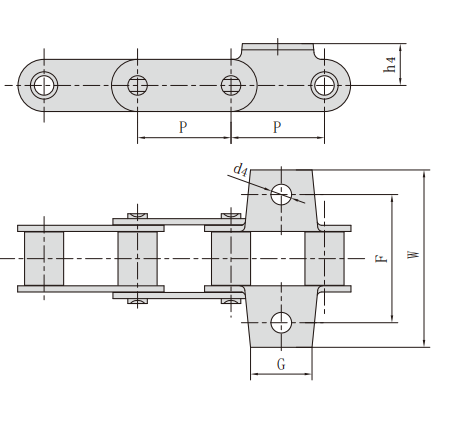

Chain No. | P | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| ZGS38K1 | 38.0 | 32.0 | 53.0 | 83.2 | 20.0 | 8.5 |
