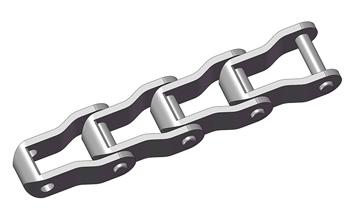

Steel Pintle Chains

Availability:
Quantity:

Product Description

Type:Steel pintle chains

Model:662,667H,667X,667XH,667K,667J,88K,88C,308,662F7,662HF2,667KF2SS,667KF3SS,88KF10,662F4,662HF3,667X-ASF10,667-ASF11,667K-ASF9,662F1,667X-ASF3

Material:steel

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:42.27MM-78.1MM

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.


Parameter

产品图纸1

Chain No. Pitch Width
between
inner plates
Pin
diameter
Pin
length
Plate
depth
Plate
thickness
Tensile
strength
Average
tensile
strength
Weight
per
meter
P b1
min
d2
max
L
max
Lc
max
h2
max
T Q
min
Q0 q
mm mm mm mm mm mm mm kN/lbf kN kg/m
662 42.27 22.9 7.19 41.2 44.2 18.8 3.2 37.80/8591 49.8 1.63
667H 58.75 25.4 7.94 43.7 46.7 22.2 3.2 42.30/9614 59.3 1.87
667X 57.15 26.6 11.10 50.2 55.0 23.8 4.3 66.70/15159 96.5 2.98
667XH 57.15 27.4 11.91 58.0 62.0 27.3 5.7 124.50/28295 138.6 4.34
667K 57.15 27.4 11.10 55.5 60.0 27.3 5.1 89.00/20227 123.2 3.91
667J 57.15 26.6 9.53 50.2 55.0 27.3 4.3 62.28/14155 84.1 2.81
88K 66.27 27.4 11.10 55.5 60.0 27.3 5.1 89.00/20227 123.2 3.73
88C 66.27 31.4 12.70 64.6 69.0 28.9 6.4 133.36/30309 160.5 5.17
308 78.10 32.5 15.88 72.6 78.0 38.1 8.0 227.00/51030 249.7 8.40

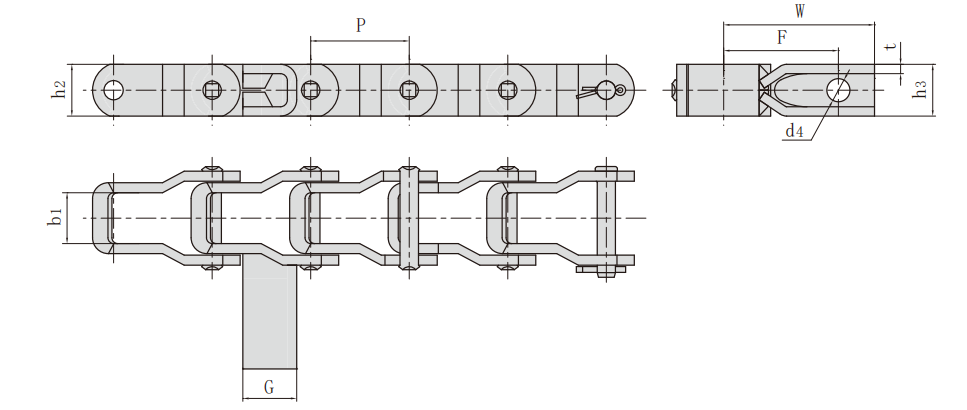

产品图纸2

Chain No. Pitch Width
between
inner plates
Plate depth Attachment
dimension
Tensile
strength
P b1
min
h2
max
G F W h3 d4 t Q
min
mm mm mm mm mm mm mm mm mm kN/lbf
662F7 42.27  22.9  18.8  23.1  49.2  64.7  22.2  9.9  4.0  37.80/8597
662HF2 42.27  21.8  22.2  23.1  49.2  64.7  22.2  9.9  4.0  50.80/11420

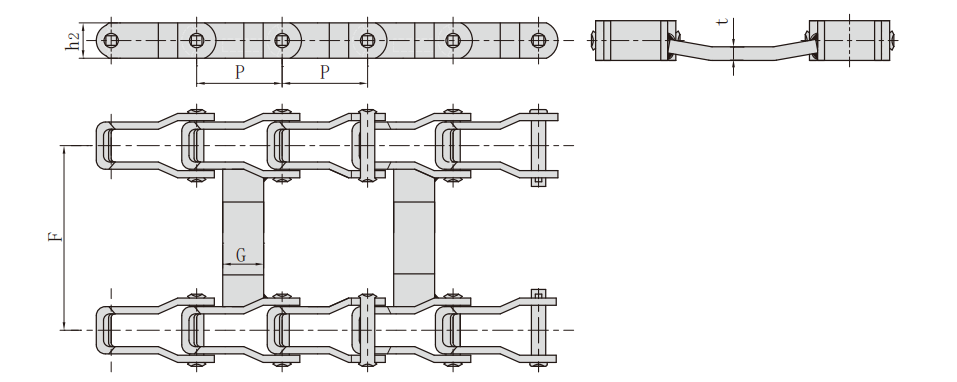

产品图纸3

Chain No. Pitch Width
between
inner plates
Plate depth Attachment
dimension
 Tensile
strength
P b1
min
h2
  max
G F t Q
min
mm mm mm mm mm mm kN/lbf
667KF2SS 57.15  27.80  27.30  38.10  536.70  9.70  67.00/15062
667KF3SS 57.15  27.80  27.30  38.10  714.20  9.70  67.00/15062
88KF10 66.27  27.40  27.30  31.75  604.20  9.50  37.80/8497

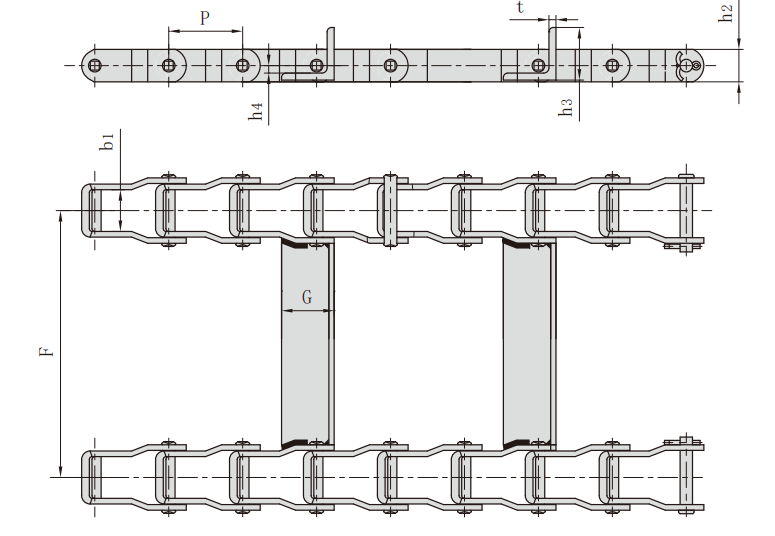

产品图纸4

Chain No. Pitch Width
between
inner plates
Plate depth Attachment
dimension
Tensile
strength
P b1
min
h2
max
G F t h3 h4 Q
min
mm mm mm mm mm mm mm mm kN/lbf
662F4 42.27  22.9  18.8  30.0  539.75  3.0  30.00  5.25  37.80/8597
662HF3 42.27  21.8  22.2  30.0  487.35  3.0  30.00  7.10  50.80/11420

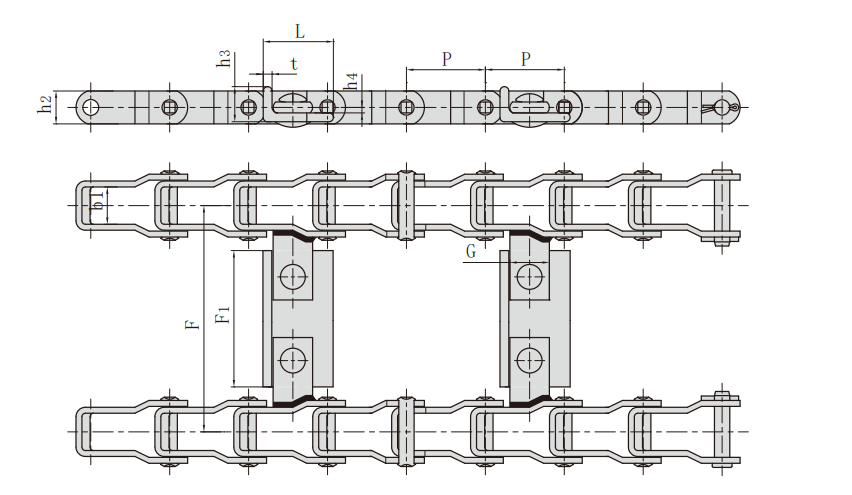

产品图纸5

Chain No. Pitch Width
between
inner plates
Plate depth Attachment
dimension
 Tensile
strength
P b1
min
h2
  max
G F F1 L t h3 h4 Q
min
mm mm mm mm mm mm mm mm mm mm kN/lbf
667X-ASF10 57.15  27.00  23.80  28.60  814.40  749.30  50.80  4.80  25.40  4.00  66.70/14994
667X-ASF11 57.15  27.00  23.80  28.60  1450.9 1385.80  50.80  4.80  25.40  4.00  66.70/14994
667K-ASF9 57.15  27.80  27.00  31.75  1736.7 1671.60  50.80  6.40  38.10  4.80  66.70/14994

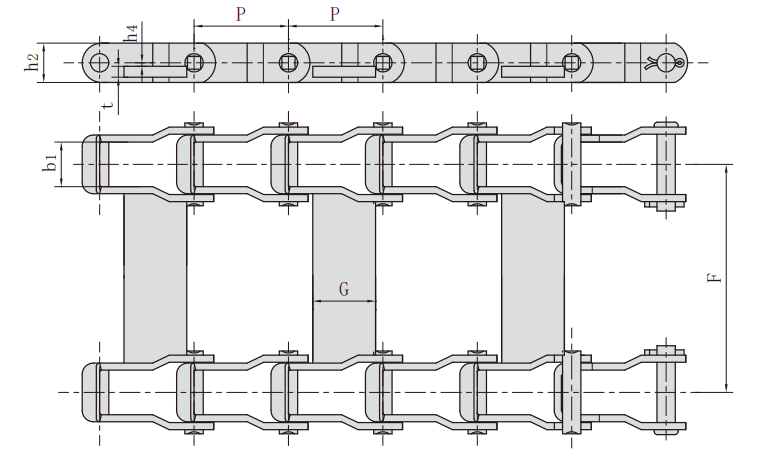

产品图纸6


Chain No. Pitch Width
between
inner plates
Plate depth Attachment
dimension
 Tensile
strength
P b1
min
h2
max
G F t h4  Q
min
mm mm mm mm mm mm mm kN/lbf
662F1 42.27  26.6  18.8  19.0  343.5  5.0  4.40  37.80/8597
667X-ASF3 57.15  26.6  23.8  38.0  514.4  7.0  0.00  66.70/14994
