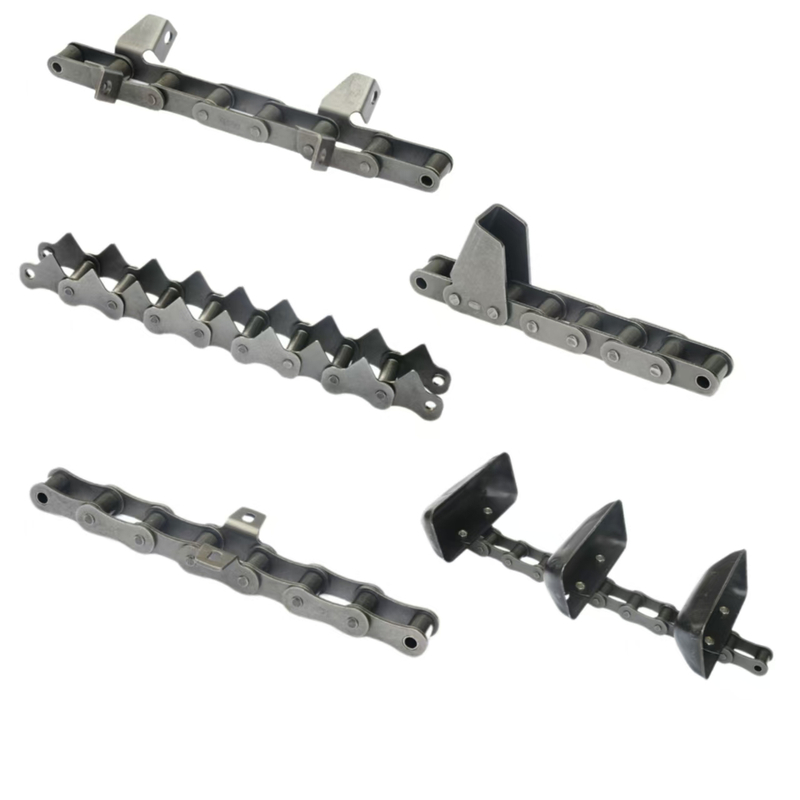

Special Agricultural Chains And Attachments

Availability:
Quantity:

Product Description

Type:Special Agricultural Chains And Attachments

Material:steel

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:40MM-50.8MM

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.



Parameter

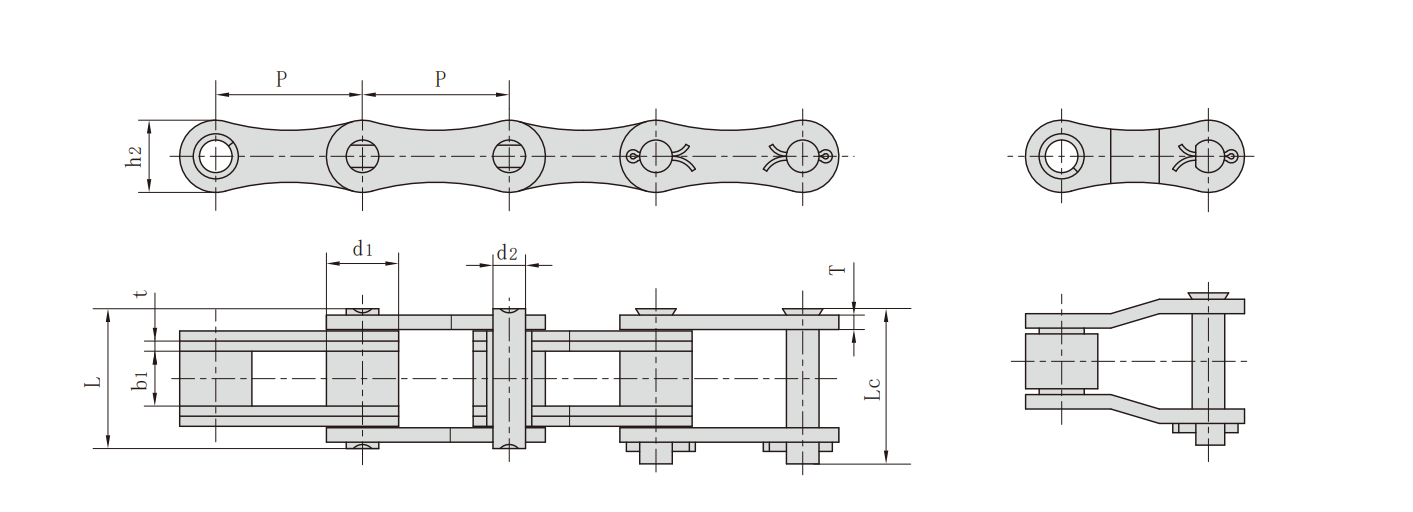

产品图纸1

Chain No. Pitch   Roller
diameter
Width
between
inner plates
   Pin
diameter
Pin
length
Inner
plate
depth
  Plate
thickness
   Tensile
strength
Average
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
t/T
max
Q
min
Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
55VF1H2 41.4  17.9  22.23  8.22  45.3  48.4  21.4  3.0  60.0/11858 65.0  2.92
CA650F1 50.8  25.0  19.00  11.28  49.2  53.7  25.0  3.5/5.0 138.0/27273 140.0  4.36

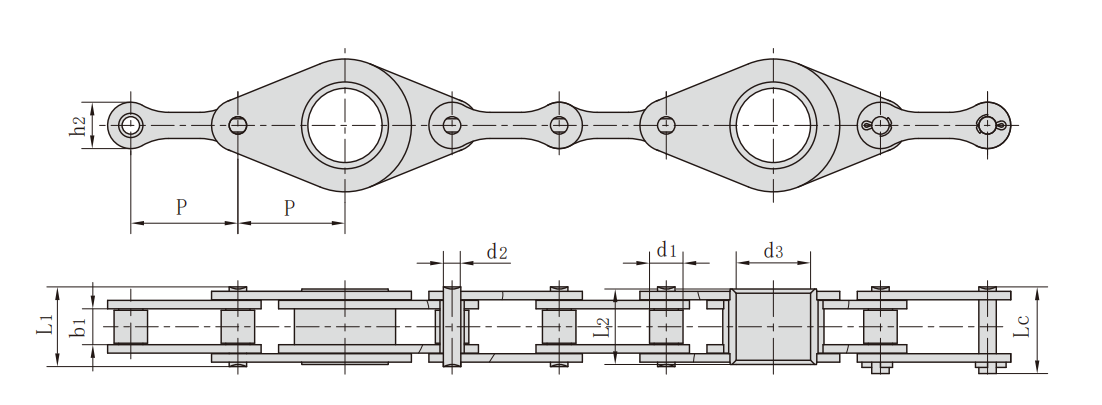

产品图纸2

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Hollow pin
  inner
diameter
Pin
length
Inner
plate
depth
 Tensile
strength
Average
tensile
strength
P d1
max
b1
min
d2
max
d3
min
L1
max
L2
max
Lc
max
h2
max
Q
min
Q0
mm mm mm mm mm mm mm mm mm kN/bf kN
216BF1 50.8  15.88  17.02  8.28  35.3  37.8  35.8  41.3  22.0  60.0/13636 70.8
CA650F3 50.8  19.05  19.05  9.53  35.3  40.4  37.8  44.7  25.0  90.0/20454 99.0

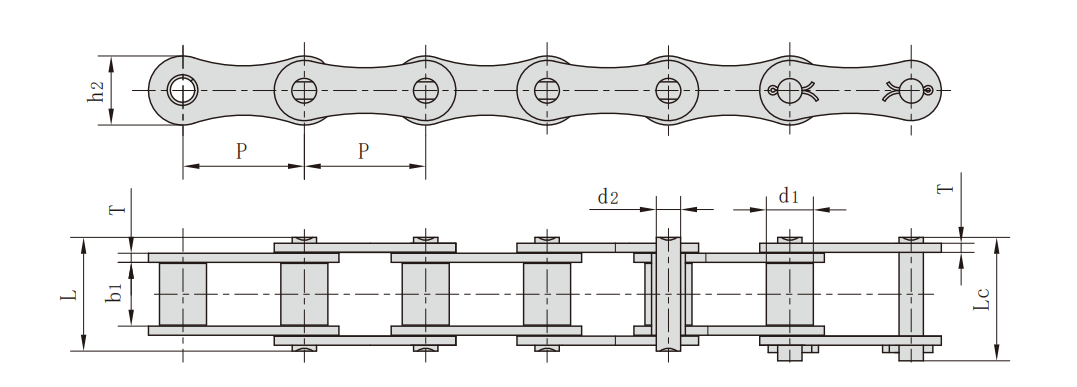

产品图纸3

Chain No. Pitch  Roller
diameter
Width
between
inner plates
   Pin
diameter
Pin
length
Plate
dimension
Tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
q
mm mm mm mm mm mm mm mm kN/lbf kg/m
P41.3 41.30  16.00  21.40  8.28  39.0  42.0  23.5  3.10  50.0/11363 2.27
CA620F4 42.01  19.05  27.90  10.19  44.9  46.5  25.0  3.00  45.0/10277 2.95
CA642 41.40  15.88  19.00  8.28  36.1  39.1  21.2  3.00  50.0/11363 1.98
CA645F1 41.40  17.78  22.23  8.22  41.3  44.4  21.4  1.33  71.7/16120 2.43
CA650 50.80  25.00  18.90  9.53  40.4  44.7  25.0  4.00  90.0/20454 3.49
CA650F2 50.80  20.00  18.90  9.53  40.4  44.7  25.0  4.00  90.0/20454 2.98
CA650F4 50.80  19.05  19.05  5.93  40.4  44.7  25.0  4.00  90.0/20454 2.85

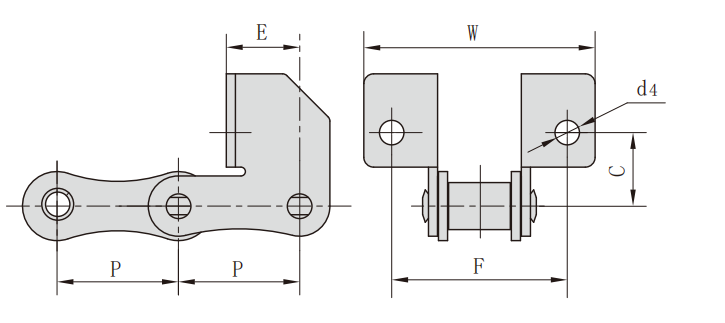

产品图纸4

Chain No. P C E F W d4
mm mm mm mm mm mm
P41.3SD 41.3  25  25.0  60  79  6.4
P41.3SDF4 41.3  25  25.0  60  79  6.4
P41.3SDF5 41.3  25  52.3  55  80  8.5
P41.3SDF6 41.3  25  25.0  60  79  8.4

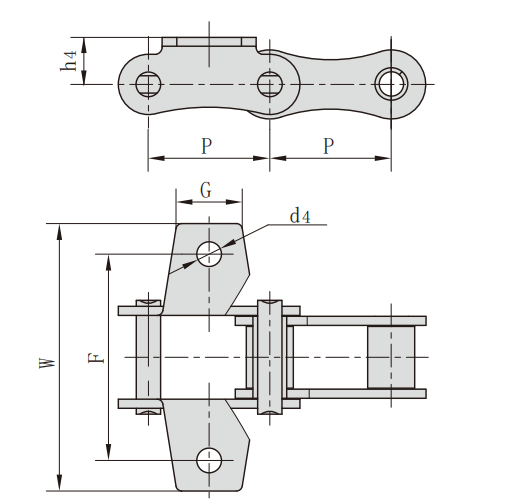

产品图纸5

Chain No. P G F W h4 d4
mm mm mm mm mm mm
P41.3K1 41.3  22.0  70.5  91.3  16.0  8.4

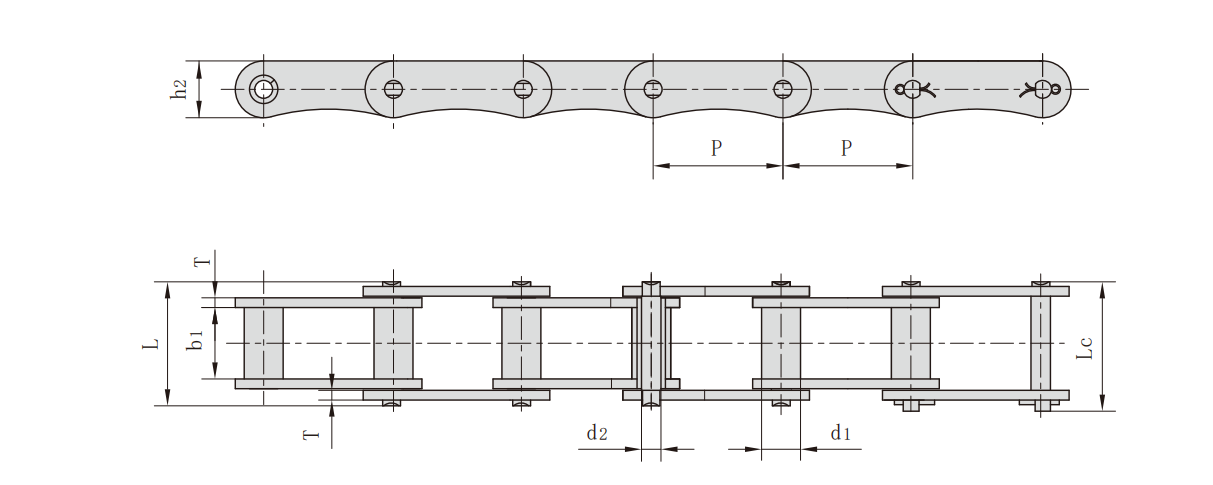

产品图纸6

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Plate
depth
Plate
thickness
Tensile
strength
Weight

per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
q
mm mm mm mm mm mm mm mm kN/lbf kg/m
LV40 40  12.0  22.0  6.0  38.2  41.0  17.5  3.0  31.4/7136 1.53
