Product Description

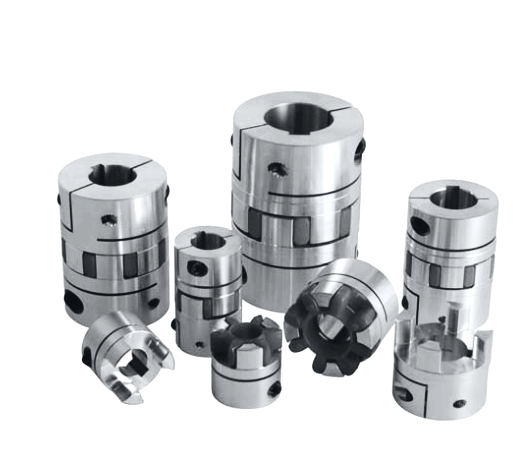

GEH-A Type Couplings is a type of gear coupling, whose product range includes GEH-A models according to DIN standards. This type of coupling is suitable for various industrial applications and can provide stable and reliable connection methods, ensuring performance and stability in various industrial environments.
Specifically, the design of GEH-A Type Couplings aims to seamlessly interface with flat surfaces and achieve a sturdy connection through bolt fixation. In addition, these couplings come in various size specifications to meet different market demands.
In summary, GEH-A Type Couplings are a versatile and reliable gear coupling widely used in various industrial applications, providing stable and efficient transmission solutions.
parameter

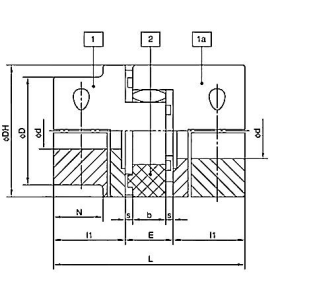

DIN GEH-A Type Couplings图纸
DIN GEH-A Type Couplings
| Material: Steel, Aluminum | ||||||||||||||||||
| Catalog | part | Basic dimensions | screw | rated torque(N.m) | Maximum speed (rpm) | Moment of inertia (kg.cm²) | weight (kg) | |||||||||||
| L | l1 | E | b | S | DH | D | N | max | specifications | TA （N.m） | SHA92 | SHA96 | ||||||
| GEH-A19 | 1a | 66 | 25 | 16 | 12 | 2 | 40 | - | - | 20 | M6X16 | 14 | 10 | 17 | 10000 | 0.48 | 0.18 | |
| GEH-A24 | 1a | 78 | 30 | 18 | 14 | 2 | 55 | - | - | 28 | M6X20 | 14 | 35 | 60 | 7300 | 1.99 | 0.37 | |
| GEH-A28 | 1a | 90 | 35 | 20 | 15 | 2.5 | 65 | - | - | 38 | M8X25 | 35 | 95 | 160 | 6100 | 4.58 | 0.64 | |
| GEH-A38 | 1a | 114 | 45 | 24 | 18 | 3 | 80 | - | - | 45 | M8X30 | 35 | 190 | 325 | 5000 | 12.70 | 1.17 | |
| GEH-A42 | 1 | 126 | 50 | 26 | 20 | 3 | 95 | 85 | 28 | 50 | M10X30 | 69 | 265 | 450 | 4200 | 24.63 | 1.56 | |
| 1a | - | - | 55 | M10X35 | 30.00 | 1.88 | ||||||||||||
| GEH-A48 | 1 | 140 | 56 | 28 | 21 | 3.5 | 105 | 95 | 32 | 55 | M12X35 | 120 | 310 | 525 | 3800 | 40.43 | 2.15 | |
| 1a | - | - | 60 | M12X40 | 49.56 | 2.55 | ||||||||||||
| GEH-A55 | 1 | 160 | 65 | 30 | 22 | 4 | 120 | 110 | 37 | 65 | M12X40 | 120 | 410 | 685 | 3300 | 79.64 | 3.25 | |
| 1a | - | - | 70 | M12X45 | 94.56 | 5.20 | ||||||||||||
| GEH-A65 | 1 | 185 | 75 | 35 | 26 | 4.5 | 135 | 115 | 47 | 70 | M12X40 | 120 | 625 | 940 | 3000 | 127.38 | 4.96 | |
| 1a | - | - | 80 | M12X45 | 190.00 | 5.85 | ||||||||||||
| GEH-A75 | 1 | 210 | 85 | 40 | 30 | 5 | 160 | 135 | 53 | 80 | M16X50 | 295 | 1280 | 1920 | 2500 | 276.50 | 7.82 | |
| 1a | - | - | 90 | 400.00 | 9.06 | |||||||||||||
| GEH-A90 | 1 | 245 | 100 | 45 | 34 | 5.5 | 200 | 160 | 62 | 90 | M20X60 | 580 | 2400 | 3600 | 2000 | 768.89 | 13.40 | |
| 1a | - | - | 110 | 1170.00 | 17.00 | |||||||||||||
| GEH-A100 | 1 | 270 | 110 | 50 | 38 | 6 | 225 | 180 | 89 | 110 | M16X50 | 295 | 3300 | 4950 | 1800 | 1157 | 16.8 | |
| GEH-A110 | 1 | 295 | 120 | 55 | 42 | 6.5 | 255 | 200 | 96 | 120 | M20X60 | 580 | 4800 | 7200 | 1600 | 2073 | 23.9 | |
| GEH-A125 | 1 | 340 | 140 | 60 | 46 | 7 | 290 | 230 | 112 | 140 | M24X70 | 1000 | 6650 | 10000 | 1400 | 4071 | 35.6 | |
