GF Type Coupling

Availability:

Quantity:



Inquire Add to Basket

Product Description

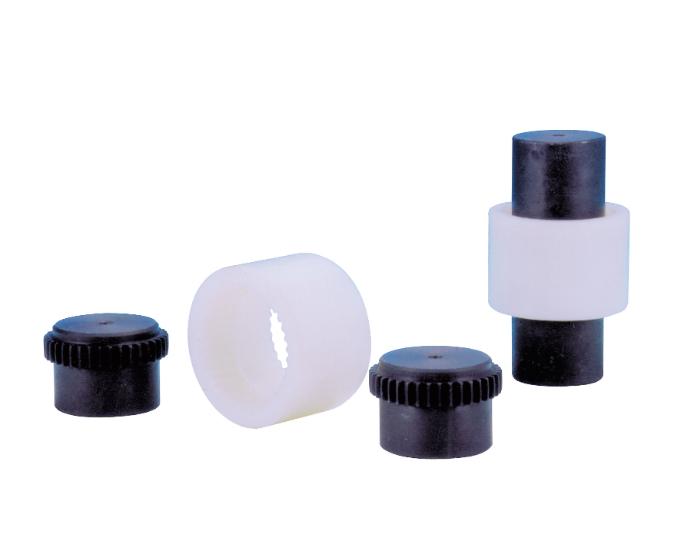

GF Type Couplings are a wide range of couplings used in a wide range of mechanical engineering and hydraulics.

Its features include: flexible installation methods: the coupling can be installed horizontally or vertically to adapt to different installation needs; Shaft plug-in assembly: The shaft plug-in design is adopted, which makes it very convenient for users to use; Avoid stress concentration: Curved drum teeth are used in the design to avoid stress concentration when installation tolerances occur; Material combination: steel gears are assembled with nylon sleeves, which can reduce maintenance and improve product reliability; Applications: GF Type Couplings are used in a wide range of mechanical engineering and hydraulic systems and are suitable for a wide range of industrial environments.

GF Type Couplings are used in a wide range of applications in the fields of mechanical engineering and hydraulics due to their flexible installation, efficient design and excellent material combination.

parameter

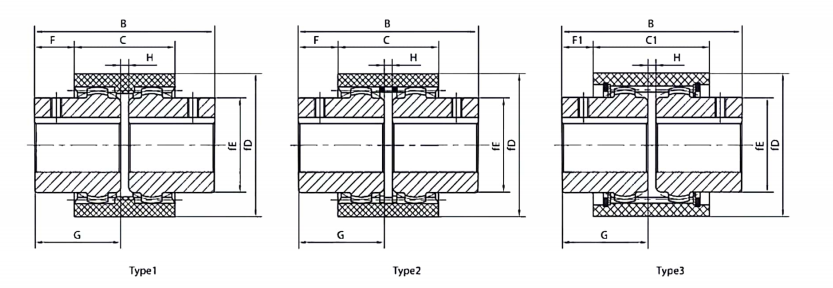

ANSI GF-Coupling Standard Series (Type1 &Type2)

Catalog

Fundamenlal Dimensions

Bore

Max Torque Ft.lb

Max Revolution (rpm)

Moment of inertia (kg.㎠)

Wl Lbs

D

E

B

C

F

G

H

Pilot

Max

GF-14

15/8

-

2

11/2

1/4

15/16

3/16

1/4

9/16

16.96

14000

0.092

0.48

GF-19

17/8

11/4

23/16

11/2

5/16

-

3/16

5/16

3/4

27.29

12000

0.218

0.83

GF-24

21/16

17/16

21/4

15/8

5/16

11/16

3/16

3/8

15/16

33.93

10000

0.314

1 .06

GF-28

25/8

13/4

33/8

17/8

3/4

15/8

3/16

3/8

11/8

75.96

8000

1.176

2.50

GF-32

215/16

2

31/16

17/8

11/16

19/16

3/16

1/2

11/4

101.78

7100

1.715

3.05

GF-38

33/8

21/4

35/16

2

5/8

19/16

3/16

9/16

11/2

129.80

6300

3.270

4.26

GF-42

33/4

21/2

37/16

2

3/4

15/8

3/16

3/4

15/8

162.25

6000

4.453

5.11

GF-48

315/16

25/8

41/16

2

11/16

2

3/16

3/4

17/8

227.15

5600

6.189

6.85

GF-55

43/4

31/4

47/8

29/16

13/16

23/8

3/16

-

23/16

420.37

4800

16.859

12.00

GF-65

51/2

33/4

55/8

27/8

17/16

23/4

3/16

1

25/8

619.50

4000

36.260

18.50

ANSI GF-Coupling Standard Series (Type3)

Catalog

Fundamenlal Dimensions

Bore

Max Torque Ft.Lb

Max Revolution (rpm)

Moment of inertia (kg.㎠)

wl L bs

D

E

B

C1

F1

G

H

Pilot

Max

GF-24

21/16

17/16

21/4

21/16

3/32

11/16

3/16

3/8

15/16

33.93

10000

0.314

1.06

GF-28

25/8

13/4

33/8

21/4

9/16

15/8

3/16

3/8

11/8

75.96

8000

1.176

2.50

GF-32

215/16

2

35/16

21/4

1/2

19/16

3/16

1/2

11/4

101.78

7100

1.715

3.05

GF-38

33/8

21/4

35/16

27/16

9/16

19/16

3/16

9/16

11/2

129.80

6300

3.270

4.26

GF-42

33/4

21/2

37/16

27/16

9/16

15/8

3/16

3/4

15/8

162.25

6000

4.453

5.11

GF-48

315/16

25/8

41/16

29/16

9/16

2

3/16

3/4

17/8

227.15

5600

6.189

6.85

GF-55

43/4

31/4

47/8

33/16

5/8

23/8

3/16

-

23/16

420.37

4800

16.859

12.0

GF-65

51/2

33/4

55/8

37/16

5/8

23/4

3/16

-

29/16

619.50

4000

36.260

18.5

ANSI GF-coupling lengthen series (Type1 Type2)

Catalog

Fundamental Dimensions

Bore

Max Torque Ft-Lbs

Max Revolution (rpm)

Moment of inertia (kg.㎠)

Wt L bs

D

E

B

C

F

G

H

min

max

GF-14L

15/8

1

21/2

11/2

1/2

13/16

3/16

1/4

9/16

16.96

1 4000

0.092

0.60

GF-19L

17/8

11/4

35/16

11/2

7/8

19/16

3/16

5/16

3/4

27.29

12000

0.218

1.26

GF-24L

21/16

17/16

41/16

15/8

11/4

2

3/16

3/8

15/16

33.93

10000

0.314

1.88

GF-28L

25/8

13/4

47/8

17/8

11/2

23/8

3/16

3/8

11/8

75.96

8000

1.176

3.57

GF-32L

215/16

2

47/8

17/8

11/2

23/8

3/16

1/2

11/4

101.78

7100

1.715

4.38

GF-38L

23/8

21/4

67/16

2

21/4

31/8

3/16

9/16

11/2

129.80

6300

3.270

8.12

GF-42L

33/4

21/2

813/16

2

37/16

43/8

3/16

3/4

15/8

162.25

6000

4.453

12.2

GF-48L

315/16

25/8

813/16

2

37/16

43/8

3/16

3/4

17/8

227.15

5600

6.189

14.07

GF-55L

43/4

31/4

813/16

29/16

31/8

43/8

3/16

1

23/16

420.37

4800

16.859

29.12

GF-65L

51/2

33/4

813/16

213/16

3

43/8

3/16

1

29/16

619.50

4000

36.260

35.2

ANSI GF-coupling lengthen series (Type3)

Catalog

Fundamental Dimensions

Bore

Max Torque Ft-L bs

Max Revolution (rpm)

Moment of inerlia (kg.㎠)

wt Lbs

D

E

B

C1

F1

G

H

Pilot

Max

GF-24L

21/16

17/16

41/16

21/16

1

2

3/16

3/8

7/8

33.93

10000

0.314

1.88

GF-28L

25/8

13/4

47/8

21/4

11/4

23/8

3/16

3/8

11/8

75.96

8000

1.176

3.57

GF-32L

215/16

2

47/8

21/4

11/4

23/8

3/16

1/2

11/4

101.78

7100

1.715

4.38

GF-38L

33/8

21/4

67/16

27/16

21/16

33/16

3/16

9/16

11/2

129.80

6300

3.270

8.12

GF-42L

33/4

21/2

813/16

27/16

31/4

43/8

3/16

3/4

15/8

162.25

6000

4.453

12.2

GF-48L

315/16

25/8

813/16

29/16

31/4

43/8

3/16

3/4

17/8

227.15

5600

6.189

14.2

GF-55L

43/4

31/4

813/16

33/16

113/16

43/8

3/16

1

23/16

420.37

4800

16.859

29.1

GF-65L

51/2

33/4

813/16

37/16

211/16

51/2

3/16

1

29/16

619.50

4000

36.260

35.2

DIN GF-Coupling Standard Series (Type1 &Type2)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
Catalog	D	E	B	C	F	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
GF-14	41	25	51	38	6.5	23.5	4	6	14	23	1.4000	0.27	0.222
GF-19	48	32	55	38	8.5	25.5	4	8	19	37	12000	0.64	0.388
GF-24	52	36	57	42	7.5	26.5	4	10	24	46	10000	0.92	0.497
GF-28	68	45	86	48	19	41	4	10	28	103	8000	3.45	1.166
GF-32	75	50	84	48	18	40	4	12	32	138	7100	5.03	1.424
GF-38	85	58	84	50	17	40	4	14	38	176	6300	9.59	1.991
GF-42	95	63	88	50	19	42	4	20	42	220	6000	13.06	2.387
GF-48	100	68	104	50	27	50	4	20	48	308	5600	18.15	3.198
GF-55	120	82	124	65	29.5	60	4	25	55	570	4800	49.44	5.617
GF-65	140	95	144	72	36	70	4	25	65	840	4000	106.34	8.635

DIN GF-Coupling Standard Series (Type3)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
Catalog	D	E	B	C1	F1	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
GF-24	52	36	57	52	2.5	26.5	4	10	24	46	10000	0.92	0.497
GF-28	68	45	86	58	14	41	4	10	28	103	8000	3.45	1.166
GF-32	75	50	84	58	13	40	4	12	32	138	7100	5.03	1.424
GF-38	85	58	84	62	14	40	4	14	38	176	6300	9.59	1.991
GF-42	95	63	88	62	14	42	4	20	42	220	6000	13.06	2.387
GF-48	100	68	104	66	14	50	4	20	48	308	5600	18.15	3.198
GF-55	120	82	124	81	15	60	4	25	55	570	4800	49.44	5.617
GF-65	140	95	144	88	15	70	4	25	65	840	4000	106.34	8.635

ANSI GF-coupling lengthen series (Type1 Type2)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution (rpm)	Moment of inertia (kg.㎠)	G (kg)
Catalog	D	E	B	C	F	G	H	min	max	Max Torque (Nm)	Max Revolution (rpm)	Moment of inertia (kg.㎠)	G (kg)
GF-14L	41	25	64	38	13	30	4	6	14	23	14000	0.32	0.282
GF-19L	48	32	84	38	23	40	4	8	19	37	12000	0.9	0.588
GF-24L	52	36	104	42	31	50	4	10	24	46	10000	1.7	0.877
GF-28L	68	45	124	48	38	60	4	10	28	103	8000	5.1	1.666
GF-32L	75	50	124	48	38	60	4	12	32	138	7100	7.68	2.044
GF-38L	85	58	164	50	57	80	4	14	38	176	6300	17.45	3.791
GF-42L	95	63	224	50	87	110	4	20	42	220	6000	32.15	5.707
GF-48L	100	68	224	50	87	110	4	20	48	308	5600	42.9	6.618
GF-55L	120	82	224	65	79.5	110	4	25	55	570	4800	92.97	13.597
GF-65L	140	95	224	72	76	140	4	25	65	840	4000	211.84	16.435

ANSI GF-coupling lengthen series (Type3)

Catalog	fundamental dimensions							Bore		Max Torque (Nm)	Max Revolution (rpm)	Moment of inertia (kg.㎠)	G (kg)
Catalog	D	E	B	C1	F1	G	H	Pilot	Max	Max Torque (Nm)	Max Revolution (rpm)	Moment of inertia (kg.㎠)	G (kg)
GF-24L	52	36	104	52	26	50	4	10	24	46	10000	1.7	0.877
GF-28L	68	45	124	58	33	60	4	10	28	103	8000	5.1	1.666
GF-32L	75	50	124	58	33	60	4	12	32	138	7100	7.68	2.044
GF-38L	85	58	164	62	52	80	4	14	38	176	6300	17.45	3.791
GF-42L	95	63	224	62	82	110	4	20	42	220	6000	32.15	5.707
GF-48L	100	68	224	66	82	110	4	20	48	308	5600	42.9	6.618
GF-55L	120	82	224	81	71.5	110	4	25	55	570	4800	92.97	13.597
GF-65L	140	95	224	88	68	140	4	25	65	840	4000	211.84	16.435
