Product Description

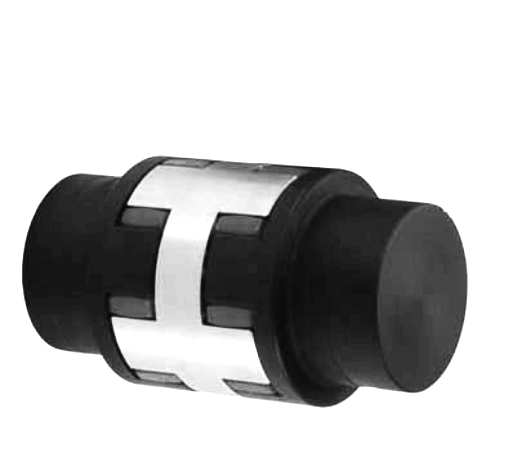

GEM Type Couplings are a type of coupling widely used in industrial and hydraulic systems. Its main features include: the series of products have multiple size specifications, suitable for different market demands. Specifically, products are classified according to ANSI and DIN standards, offering inch sizes (applicable to the ANSI market) and metric sizes (applicable to the DIN market) respectively.
GEM Type Couplings have undergone preliminary drilling treatment at the factory and can provide completed drilling services according to customer needs. These connectors are widely used in various industrial pipeline systems, especially in situations where high precision and reliability are required. In addition, they are also suitable for hydraulic systems in agriculture, industry, public works, or construction machinery.
In summary, GEM Type Couplings are renowned for their diverse size specifications, flexible design options, and widespread use across multiple industries.
parameter

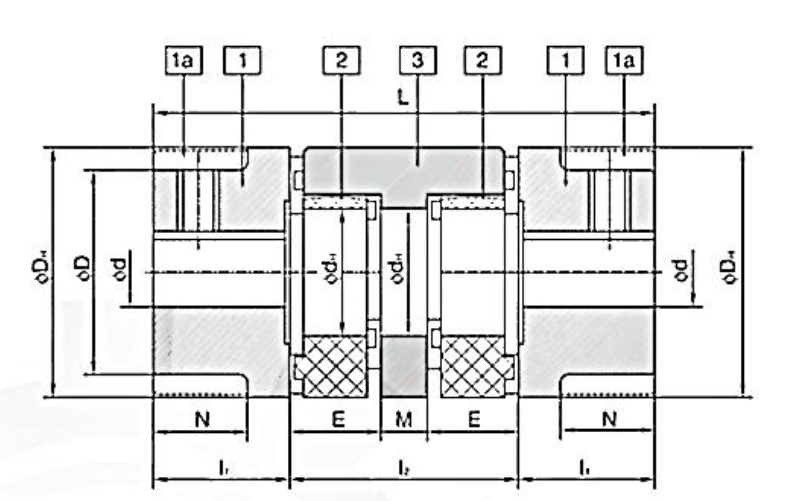

DIN GEM Type-Couplings图纸
DIN GEM Type-Coupling
| Catalog | Part | Rating, Moment (Nm) | I | E | M | l2 | L | D: | dr | Max Displacement at n=1500 rpm | Max.Axial Displacement | Moment of inertia (kg.cm²) | G (kg) | |||
| Rating | Max | Radial | Angular | |||||||||||||
| GEM-19 GEM-24 GEM-28 GEM-38 GEM-42 | 3 3 3 3 3 | 10 35 95 190 265 | 20 70 190 380 530 | 25 30 35 45 50 | 16 18 20 24 26 | 10 16 18 20 22 | 42 52 58 68 74 | 92 112 128 158 174 | 40 55 65 80 95 | 18 27 30 38 46 | The rest dimensions see GE Couplings | 0.65 0.89 1.00 1.15 1.26 | 1.5* | 1.1 1.4 1.5 1.8 2.0 | 0.25 0.60 1.30 3.50 7.00 | 0.07 0.14 0.22 0.35 0.51 |
| GEM-48 GEM-55 GEM-65 GEM-75 GEM-90 | 3 3 3 3 3 | 310 410 625 1280 2400 | 620 820 1250 2560 4800 | 56 65 75 85 100 | 28 30 35 40 45 | 24 28 32 36 40 | 80 88 102 116 130 | 192 218 252 286 330 | 105 120 135 160 200 | 51 60 68 80 100 | 1 .36 1.52 1.75 2.00 2.50 | 2.1 2.2 2.6 3.0 3.4 | 10.00 20.00 40.00 90.00 250.00 | 0.67 0.97 1.43 2.20 3.90 | ||

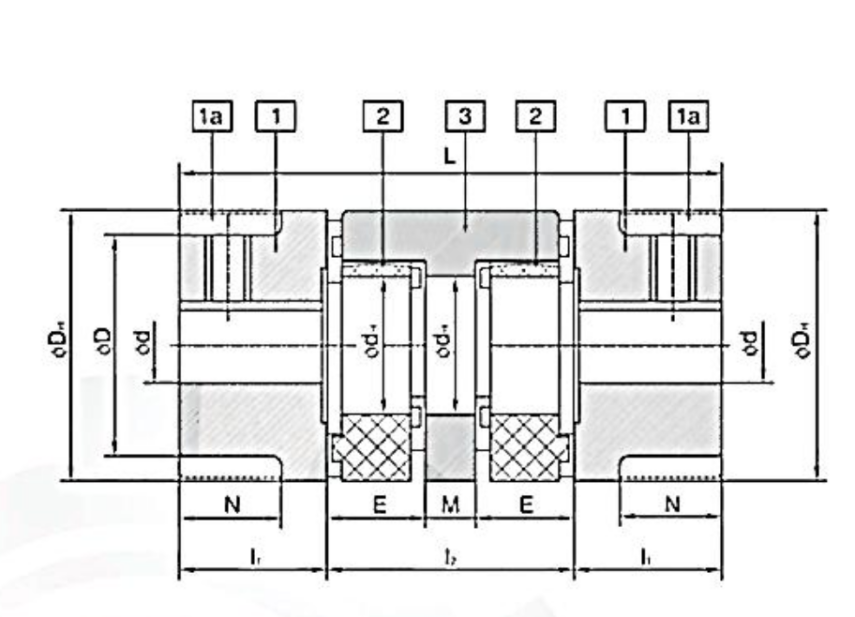

ANSI GEM Type-Couplings图纸
ANSI GEM Type-Coupling
| Catalog. | Part | Rating. Moment ft-bs | I | E | M | l2 | L | Dh | dh | Max Displacement aln=1500 rpm | MaxAcial Dsplacerment | Moment of Ineria Lbin² | Wt Lbs | |||
| Rating | Max | Radial | Angular | |||||||||||||
| GEM-19 GEM-24 GEM-28 GEM-38 GEM-42 | 3 3 3 3 3 | 7.375 25.810 70.060 140.100 195.400 | 14.75 51.63 140.13 280.25 390.88 | 0.98 11/8 1.38 1.77 1.97 | 0.63 0.71 0.79 0.95 1.02 | 3/8 5/8 11/16 13/16 7/8 | 1.65 2.05 2.28 2.68 2.91 | 35/8 43/8 5.00 61/4 67/8 | 19/16 23/16 29/16 31/8 33/4 | 11/16 11/16 13/16 11/2 17/8 | The rest dimensions see GE Couplings | 0.025 0.035 0.039 0.045 0.050 | 1.5* | 0.043 0.055 0.059 0.071 0.079 | 0.085 0.205 0.443 1.194 2.387 | 0.15 0.30 0.47 0.75 1.09 |
| GEM-48 GEM-55 GEM-65 GEM-75 GEM-90 | 3 3 3 3 3 | 228.600 302.400 460.900 944.000 1770.000 | 457.30 604.80 921.90 1888.00 3540.00 | 2.20 2.56 2.95 3.35 3.94 | 1.10 1.18 1.3/8 1.57 1.77 | 15/16 11/8 11/4 17/16 19/16 | 3.15 3.46 4.02 4.57 5.12 | 79/16 89/16 9.15 111/4 13.0 | 41/8 43/4 55/16 61/4 77/8 | 2 23/8 211/16 33/16 315/16 | 0.054 0.060 0.069 0.079 0.098 | 0.083 0.086 0.102 0.118 0.134 | 3.410 6.820 13.640 30.690 85.250 | 1.44 2.08 3.06 4.71 8.50 | ||
