Product Description
GET type coupling is a device used to connect two or more shafts together, mainly for transmitting torque and rotation angle. It consists of two parts: the inner part is divided into hexagonal screws and bolts, and the outer part is divided into the coupling body. This type of coupling can withstand certain radial, angular, and axial deviations, ensuring smooth operation of the equipment under different working conditions.
GET type couplings also have the function of absorbing vibration and impact, which is particularly important during equipment operation because vibration and impact can directly affect the service life of motors, reducers, or screws. When selecting, specific information such as model, size, and partition length needs to be provided to ensure that the selected product can meet practical application requirements.
In summary, GET type couplings play an important role in the field of industrial automation due to their excellent performance and reliability, making them an ideal choice for connecting different rotating bodies and transmitting torque.
parameter

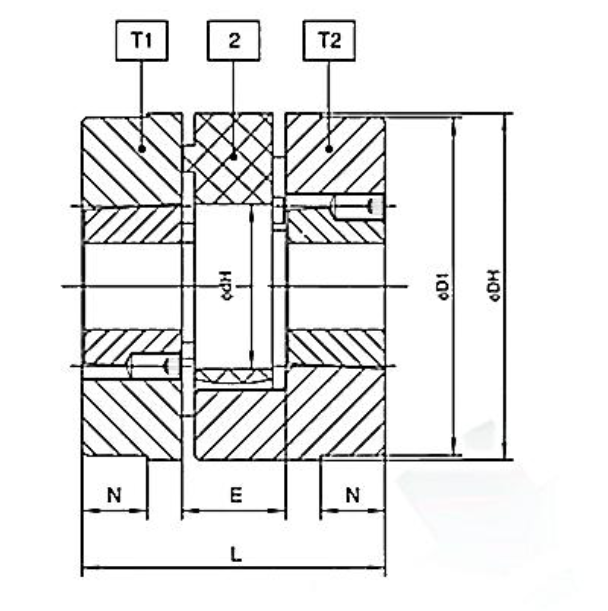

GET Type Couplings图纸
| catalog | Cone sleeve model | component | Basic dimensions | rated torque(N.m) | Maximum speed (rpm) | Moment of inertia (kg.cm²) | weight (kg) | ||||||
| DH | D1 | dH | E | L | N | SHA92 | SHA96 | ||||||
| GET24 | 1008 | T1 | 55 | - | 27 | 18 | 64 | - | 35 | 60 | 8500 | 1.87 | 0.46 |
| T2 | |||||||||||||
| GET-28 | 1108 | T1 | 65 | - | 30 | 20 | 66 | - | 95 | 160 | 7100 | 3.68 | 0.66 |
| T2 | |||||||||||||
| GET-38 | 1108 | T1 | 80 | 78 | 38 | 24 | 70 | 15 | 190 | 325 | 5900 | 8.30 | 1.00 |
| T2 | |||||||||||||
| GET-42 | 1610 | T1 | 95 | 94 | 46 | 26 | 78 | 16 | 265 | 450 | 5000 | 19.19 | 1.60 |
| T2 | |||||||||||||
| GET-48 | 1615 | T1 | 105 | 104 | 51 | 28 | 106 | 28 | 310 | 525 | 4500 | 40.64 | 2.82 |
| T2 | |||||||||||||
| GET-55 | 2012 | T1 | 120 | 118 | 60 | 30 | 96 | 20 | 410 | 685 | 3900 | 60.06 | 3.19 |
| T2 | |||||||||||||
| GET-65 | 2012 | T1 | 135 | 115 | 68 | 35 | 101 | 19 | 625 | 940 | 3500 | 79.47 | 3.62 |
| T2 | |||||||||||||
| GET-75 | 2517 | T1 | 160 | 135 | 80 | 40 | 144 | 36 | 1280 | 1920 | 2980 | 205.37 | 7.17 |
| T2 | |||||||||||||
| 3020 | T2 | 204.58 | 7.01 | ||||||||||
| GET-90 | 3020 | T1 | 200 | 160 | 100 | 45 | 149 | 33 | 2400 | 3600 | 2380 | 492.31 | 10.89 |
| T2 | |||||||||||||
| GET-125 | 3535 | T1 | 290 | 230 | 147 | 60 | 240 | 62 | 6650 | 10000 | 1610 | 3576.66 | 38.71 |
| T2 | |||||||||||||
| 4545 | T1 | 288 | 86 | 4084.01 | 45.05 | ||||||||
| T2 | |||||||||||||
