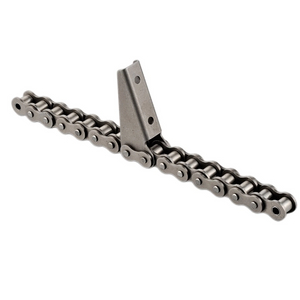

CA Type Steel Agricultural Chains

CA627,CA550D,CA555D,CA557D,CA620D,CA2062H,CA627F1
Availability:
Quantity:

Product Description

Type:CA Type Steel Agricultural Chains

Material:steel

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:30.0MM-40.2MM

Model: CA627,CA550D,CA555D,CA557D,CA620D,CA2062H,CA627F1

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.


Parameter

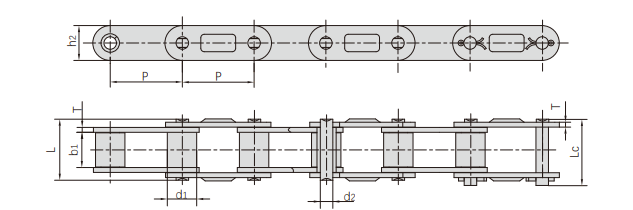

CA type steel agricultural chains 产品图纸2

Chain No. Pitch Roller
diameter
Width
between
inner  plates
Pin
diameter
Pin
length
Plate
dimension
Tensile
strength
Average
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
Q0 q
mm mm mm mm mm    mm mm mm kN/lbf kN kg/m
CA627 30.00 15.88 19.05 8.28 36.1 39.4  20.5 3.00 50.00/11247 55.0 2.51
CA550D 41.40 16.87 19.81 7.19 35.0 38.0  19.3 2.80 39.10/8886 51.2 1.94
CA555D 41.40 16.87 12.70 7.19 29.1 32.0  19.3 3.10 39.10/8886 56.0 1.72
CA557D 41.40 17.78 20.24 8.00 37.4 40.6  23.1 3.10 55.61/12639 74.3 2.60
CA620D 42.01 17.91 24.51 7.19 41.8 45.2  20.2 3.25 39.10/8886 55.1 2.35
CA2062H 38.10 22.23 12.57 5.94 29.2 31.6  18.0 3.25 31.10/6992 35.0 2.30
CA627F1 30.00 15.88 19.60 8.28 36.1 39.7  20.5 3.00 50.00/11241 55.0 2.55

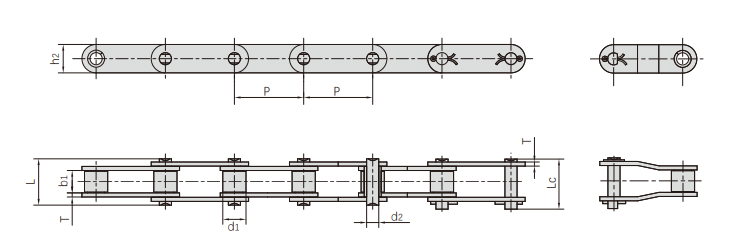

CA type steel agricultural chains 产品图纸3

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Plate
dimension
 Tensile
strength
Ayerage
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
Q
min
Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
38.4R 38.400  15.88  19.05  6.92  33.8  36.4  17.30  2.50  33.00/7480 41.2  1.70
38.4V 38.400  15.88  18.00  6.92  35.0  38.0  17.30  3.00  40.00/9091 50.0  1.83
38.4VB 38.400  15.88  19.05  8.28  36.1  39.4  20.50  3.00  50.00/11363 62.5  2.17
55VD 41.400  17.90  23.00  8.22  39.3  42.4  20.00  2.80  42.00/9546 45.0  2.34
CA2060H 38.100  11.91  12.70  5.94  29.2  31.6  18.00  3.25  31.10/6996 40.5  1.45
CA550 41.400  16.87  19.81  7.19  35.0  38.0  19.30  2.80  39.10/8886 51.2  1.94
CA550(U) 41.400  16.86  19.80  7.19  35.5  28.3  19.50  2.80  48.91/10996 53.8  1.98
CA550F4 41.400  14.35  20.24  7.14  35.0  38.5  19.05  2.80  50.00/11363 52.0  1.76
CA550F5 41.400  16.66  20.24  7.14  35.0  38.5  19.05  2.80  45.00/10227 52.0  1.97
CA550H 41.400  16.74  20.00  7.14  36.0  39.1  19.10  3.00  57.82/13000 60.8  2.00
CA550V 41.400  16.80  19.05  8.28  36.1  39.1  22.00  3.00  55.00/12499 68.7  2.24
CA550VF2 41.400  16.80  19.05  8.28  36.1  38.8  20.00  3.00  55.00/12499 68.7  2.13
CA555 41.400  16.87  12.70  7.19  29.1  32.0  19.30  3.10  39.10/8886 56.0  1.72
CA557 41.400  17.78  20.24  8.00  37.4  40.6  23.10  3.10  55.61/12639 74.3  2.60
CA557(U) 41.400  17.78  19.50  8.00  37.5  40.6  23.30  3.10  64.50/14501 71.0  2.55
CA620 42.010  17.91  24.51  7.19  41.8  45.2  20.20  3.25  39.10/8886 55.1  2.35
CA960 41.400  17.78  22.61  8.90  40.1  43.0  23.10  3.00  66.00/15160 72.6  6.94
CAE44151 28.575  15.88  16.20  7.92  33.5  36.9  22.20  3.25  58.80/13363 64.5  2.73
S62F3 41.910  19.05  25.40  8.00  42.0  44.6  26.00  3.00  47.00/10796 58.7  3.12
