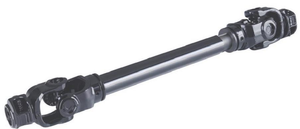

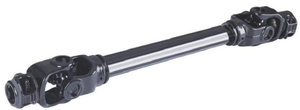

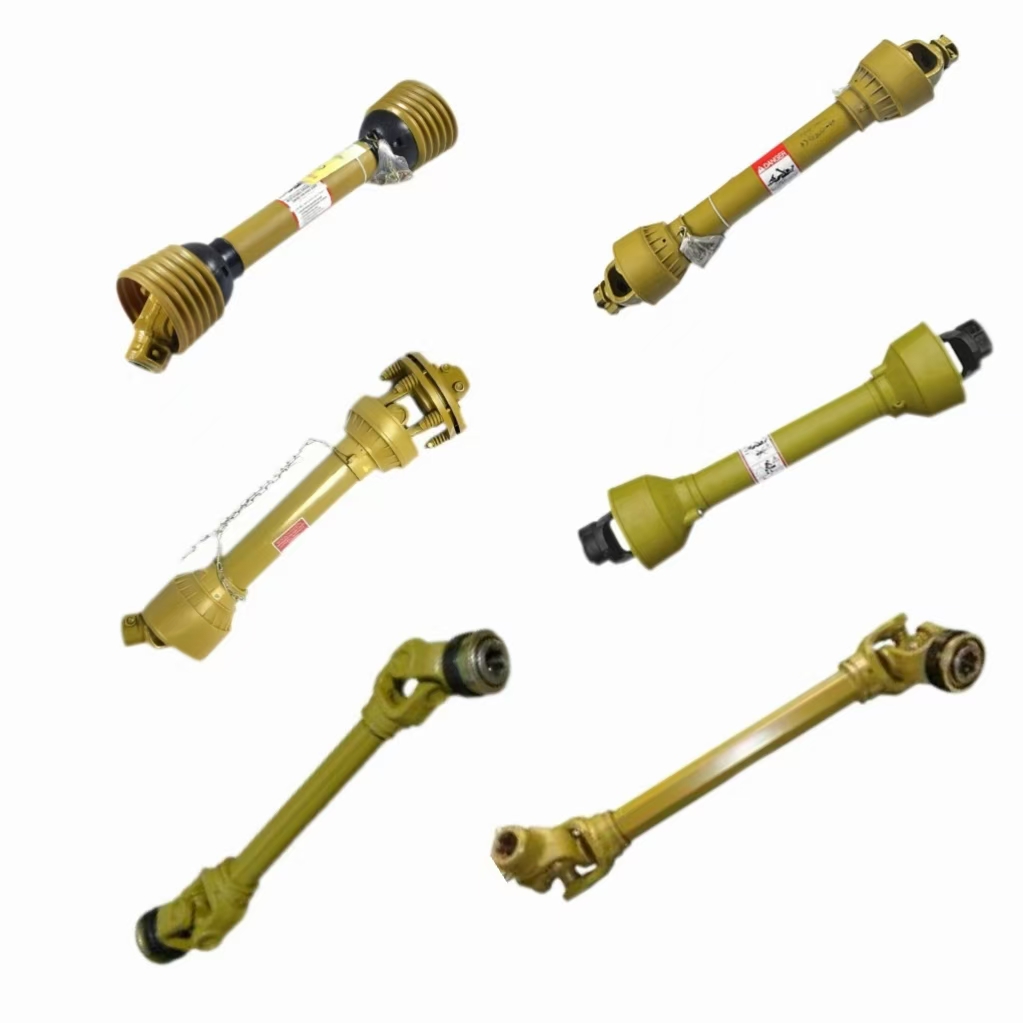

PTO Shaft

1. General Information

2. Product Features

2.1 High - Strength Construction

• Our PTO shafts are made from top - grade alloy steel. This material choice provides exceptional strength, allowing the shafts to withstand high torque loads without deformation or breakage. Whether it's in heavy - duty agricultural tilling or industrial machinery operation, the robust construction ensures long - term performance.

2.2 Superior Flexibility

• Equipped with flexible couplings, our PTO shafts can accommodate misalignments between the power source and the driven equipment. This flexibility not only helps to reduce stress on the shaft and connected components but also enables smooth power transfer even when the operating conditions cause slight shifts in the alignment of the two ends.

2.3 Versatile Speeds

• Available in different speed - rated models, including the commonly used 540 RPM and 1000 RPM versions. This versatility makes our PTO shafts suitable for a wide range of applications. The 540 RPM shafts are ideal for smaller agricultural implements and light - duty industrial equipment, while the 1000 RPM shafts are designed for heavy - duty machinery that requires higher power transfer.

3. Applications

3.1 Agricultural Applications

• In the agricultural sector, our PTO shafts are extensively used. They can be connected to tractors to power a variety of implements. For example, they drive plows for soil tilling, helping farmers prepare the land for sowing. They are also used with seeders to ensure accurate and efficient seed distribution. Additionally, PTO shafts power hay balers, which compress and bale hay for storage and transportation.

3.2 Industrial Applications

• In industrial settings, our PTO shafts play a vital role in powering various machinery. They can be used to connect motors to pumps, facilitating the transfer of fluids in manufacturing processes. They are also used to drive conveyor belts, which are essential for the movement of materials within factories. In addition, PTO shafts are used in small - scale power generation systems, where they transfer power from engines to generators.

3.3 Specialized Vehicle Applications

• For specialized vehicles like fire trucks, PTO shafts are used to transfer power from the vehicle's engine to auxiliary equipment. For instance, they power the water pumps on fire trucks, enabling the delivery of high - pressure water for firefighting. In ambulances, PTO shafts can be used to power onboard generators, which supply electricity for medical equipment.

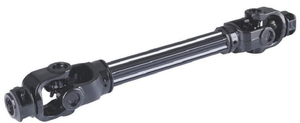

PTO drive shaft Series S

Type	U-joint		Joint simple				Splined yoke		Tube yo ke				Tube
			Inner		outer				Inner		outer		Inner		outer
	1		2		3		4		5		6		7		8
S230	2000723 30.18×106.3		40023001		40023002		101G723138		102S23251		103S23261		301S510		301S614
S240	2000824 34.9×106.3		40024001		40024002		101G824138		102S24251		103S24261		301S510		301S614
S2500 (036)	2000036 36×89		40036001		40036002		101G036138		102S036251		103S036261		301S510		301S614
S2600 (026)	2000026 42×104		40026001		40026002		101G026138		102S026261		103S026271		301S614		302S715
Operating torque
Type		540 tr./min						1000 tr./min						Nm
		kw		pk		Nm		kw		pk		Nm
		CV						CV
S230		36		56		780		75		92		550		3400
S240		45		77		890		82		110		780		4200
S2500		66		90		1175		102		139		975		6000
S2600		79		107		1400		122		166		1165		7800

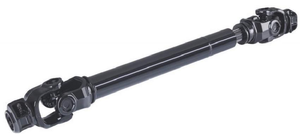

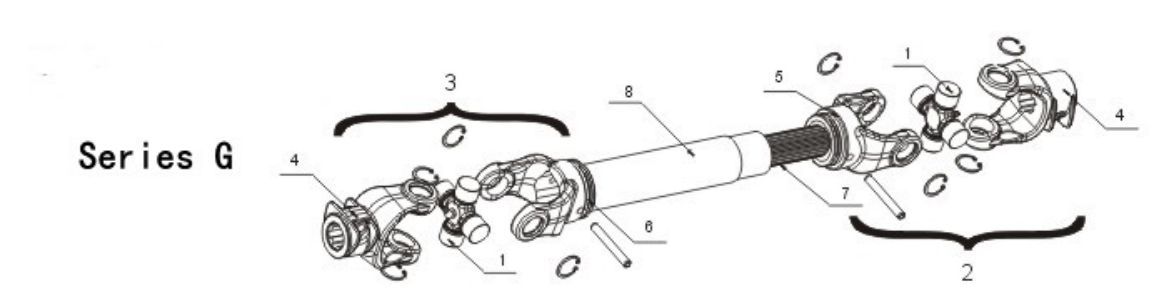

PTO drive shaft Series G

Type	U-joint		Joint simple				Splined yoke		Tube yoke				Tube
			Inner		outer				Inner		outer		Inner		outer
	1		2		3		4		5		6		7		8
G50	2000500 30.22×80		4005001		4005002		101500138		102G35012		312G35Z12		301G35Z12		300C553
G60	2000600 30.22×92		4006001		4006002		101622138		102G35012		312G35Z12		301G35Z12		300C553
G70	20007N 35×94		4007001		4007002		1017N138		102G35012		312G40Z14 a		301G40Z14		300C613
G80	2000824 34.9×106.3		4008001		4008002		101824138		102G35012		312G45Z16 1		301G45Z16		300C613
G90	2000900 41×108		4009001		4009002		101900138		102G35012		312G45Z16		301G45Z16		300C695
Operating torque
Type		540tr./min						1000tr./min						Nm
		kw		pk		Nm		kw		pk		Nm
		CV						CV
G05		35		47		620		54		74		520		1050
G06		47		64		830		74		100		710		1450
G07		55		75		970		87		118		830		1800
G08		70		95		1240		110		150		1050		2250
G09		88		120		1560		140		190		1340		2900
