Splined Yoke 07

Availability:

Quantity:



Inquire Add to Basket

Product Description

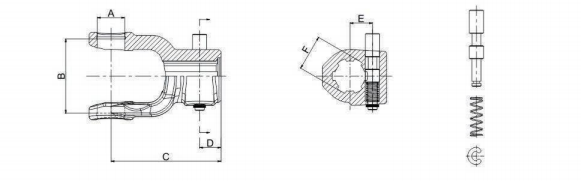

Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F
1.0507B	22	54	93	23	22	13/8"Z6
1.0507D						13/8"Z21
1.0507G					23.8	8-32X38X6
2.0507B	23.8	61.3	102	21	22	13/8"Z6
2.0507D						13/8"Z21
2.0507G					23.8	8-32X38X6
3.0507B	27	70	108	21	22	13/8"Z6
3.0507D						13/8"Z21
3.0507G					23.8	8-32X38X6
4.0507B	27	74.6	108	21	22	13/8"Z6
4.0507D						13/8"Z21
4.0507G					23.8	8-32X38X6
5.0507B	30.2	80	108	21	22	13/8"Z6
5.0507D						13/8"Z21
5.0507G					23.8	8-32X38X6
32.0507B	32	76	108	21	22	13/8"Z6
32.0507D						13/8"Z21
32.0507G					23.8	8-32X38X6
6.0507B	30.2	92	118	23	22	13/8"Z6
6.0507D						13/8"Z21
6.0507G			118		23.8	8-32X38X6
6.0507C				22	26.5	13/4"Z6
6.0507E						13/4"Z20
7.0507B	30.2	106.5	130	25	22	13/8"Z6
7.0507D						13/8"Z21
7.0507G					23.8	8-32X38×6
8.0507B	35	106.5	130	25	22	13/8"Z6
8.0507D						13/8"Z21
8.0507G					23.8	8-32X38X6
8.0507C			130	25	26.5	13/4"Z6
8.0507E						13/4"Z20
