Splined Yoke 04

Availability:
Quantity:
Inquire Add to Basket

Product Description

04

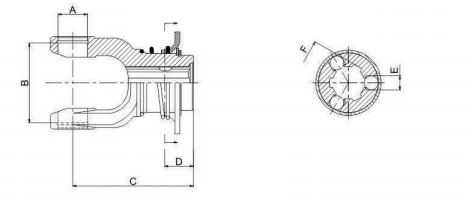

Series A(mm) B(mm) C(mm) D(mm) E(mm) F
1.0504B 22 54 100 26 φ13 13/8"Z6
1.0504D 13/8"Z21
2.0504B 23.8 61.3 102 26 φ13 13/8"Z6
2.0504D 13/8"Z21
3.0504B 27 70 111 26 φ13 13/8"Z6
3.0504D 13/8"Z21
4.0504B 27 74.6 111 26 φ13 13/8"Z6
4.0504D 13/8"Z21
5.0504B 30.2 80 117 26 φ13 13/8"Z6
5.0504D 13/8"Z21
32.0504B 32 76 117 26 φ13 13/8"Z6
32.0504D 13/8"Z21
6.0504B 30.2 92 123 26 φ13 13/8"Z6
6.0504D 13/8"Z21
6.0504C 148 34 φ16 13/4"Z6
6.0504E 13/4"Z20
7.0504B 30.2 106.5 137 26 φ13 13/8"Z6
7.0504D 13/8"Z21
7N.0504B 35 94 123 26 φ13 13/8"Z6
7N.0504D 13/8"Z21
8.0504B 35 106.5 130 26 φ13 13/8"Z6
8.0504D 13/8"Z21
6.0504C 159 34 φ16 13/4"Z6
6.0504E 13/4"Z20


Catalogue

download PTO drive shaft catalogue.pdf
