Splined Yoke 03

Availability:

Quantity:



Inquire Add to Basket

Product Description

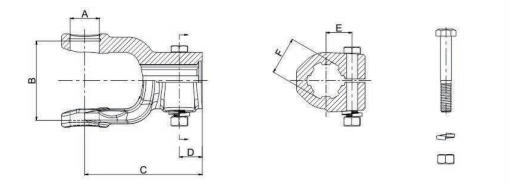

Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F
5.0502B	30.2	80	108	21	21	13/8"Z6
5.0502D						13/8"Z21
5.0502G					22.8	8-32×38×6
32.0502B	32	76	108	21	21	13/8"Z6
32.0502D						13/8"Z21
32.0502G					22.8	8-32×38×6
6.0502B	30.2	92	118	23	21	13/8"Z6
6.0502D						13/8"Z21
6.0502G					22.8	8-32×38×6
6.0502C			118		26	13/4"Z6
6.0502E				22		1.3/4”Z20
7.0502B	30.2	106.5	130	25	21	13/8"Z6
7.0502D						13/8"Z21
7.0502G					22.8	8-32×38×6
36.0502B	36	89	122	21	21	13/8"Z6
36.0502D						13/8"Z21
36.0502G			122	21	22.8	8-32×38×6
36.0502C					26	13/4"Z6
36.0502E						13/4"Z20
7N.0502B	35	94	122	21	21	13/8"Z6
7N.0502D						13/8"Z21
7N.0502G					22.8	8-32×38×6
7N.0502C			122	21	26	13/4"Z6
7N.0502E						13/4"Z20
8.0502B	35	106.5	130	25	21	13/8"Z6
8.0502D						13/8"Z21
8.0502G					22.8	8-32×38×6
8.0502C			130	25	26	13/4"Z6
8.0502E						13/4"Z20
