Splined Yoke 05

Availability:

Quantity:



Inquire Add to Basket

Product Description

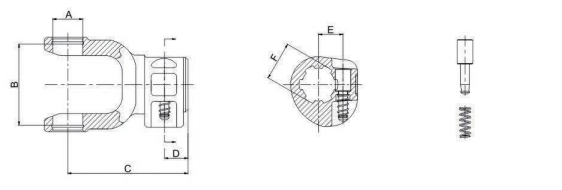

Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F
1.0505B	22	54	93	21	22	13/8"Z6
1.0505D						13/8"Z21
1.0505G					23.8	8-32X38X6
2.0505B	23.8	61.3	99	21	22	13/8"Z6
2.0505D						13/8"Z21
2.0505G					23.8	8-32X38X6
3.0505B	27	70	102	21	22	13/8"Z6
3.0505D						13/8"Z21
3.0505G					23.8	8-32X38X6
4.0505B	27	74.6	108	21	22	13/8"Z6
4.0505D						13/8"Z21
4.0505G					23.8	8-32X38X6
5.0505B	30.2	80	111	21	22	13/8"Z6
5.0505D						13/8"Z21
5.0505G					23.8	8-32X38X6
32.0505B	32	76	111	21	22	13/8"Z6
32.03205D					22	13/8"Z21
32.03205G					23.8	8-32X38X6
6.0505B	30.2	92	117	21	22	13/8"Z6
6.0505D						13/8"Z21
6.0505G					23.8	8-32X38X6
7.0505B	30.2	106.5	130	21	22	13/8"Z6
7.0505D						13/8"Z21
7.0505G					23.8	8-32X38X6
36.0505B	36	89	119	21	22	13/8"Z6
36.0505D						13/8"Z21
36.0505G					23.8	8-32X38X6
7N.0505B	35	94	119	21	22	13/8"Z6
7N.0505D						13/8"Z21
7N.0505G					23.8	8-32X38X6
8.0505B	35	106.5	130	21	22	13/8"Z6
8.0505D						13/8"Z21
8.0505G					23.8	8-32X38X6
