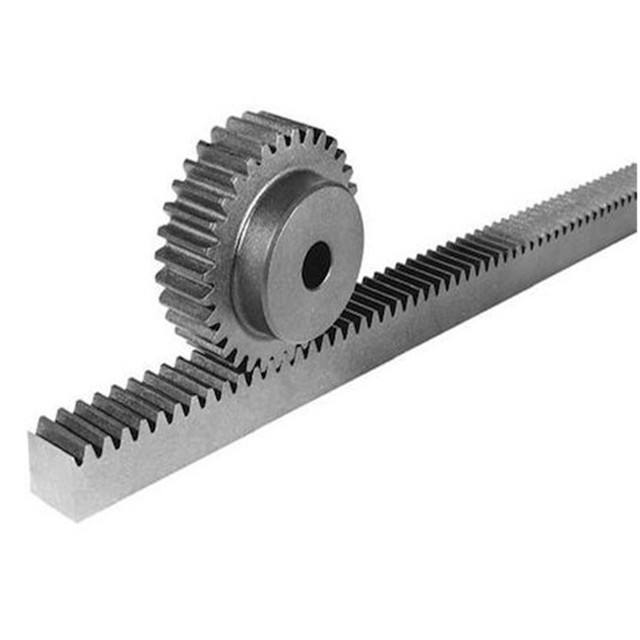

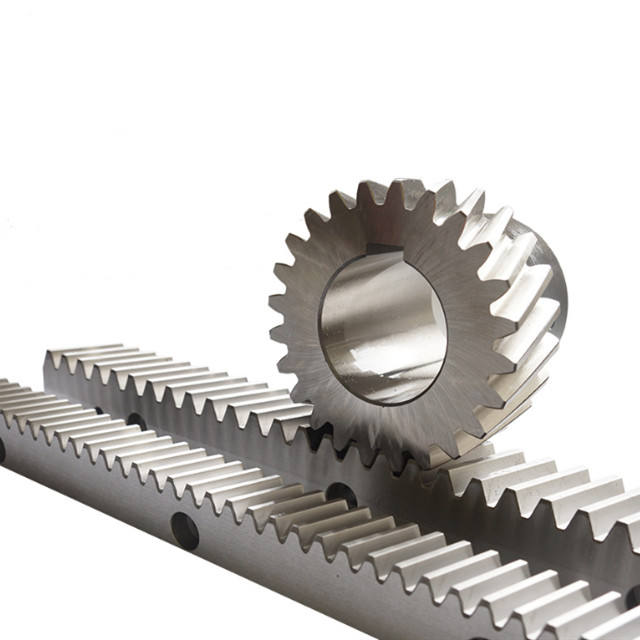

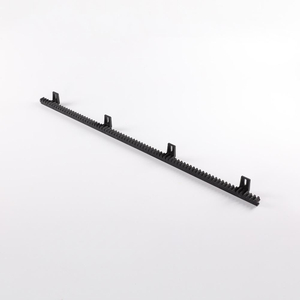

Product Description
There is other module gear rack available, and also there is CP or DP teeth available, Ocean can produce as per your drawings.Most of Ocean Standard Gear Rack are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.
parameter
| Dentatura diritta | Straight toothing | GeradeVerzahnung | Denture droite | Dentado derecho | |||||||||||||||
| Angolo pressione 20° | Angle of pressure 20° | Eingriffswinskel 20° | Angle de pression 20° | Angulode presión 20° | |||||||||||||||
| MaterialeC45E UNI EN 10083-1 | Material C45E UNI EN 10083-1 | WerkstoffC45E UNI EN 10083-1 | Matière C45E UNI EN 10083-1 | Material C45E UNI EN 10083-1 | |||||||||||||||

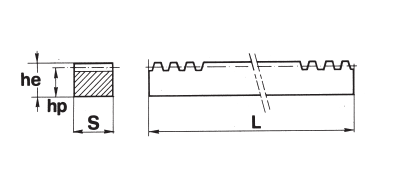

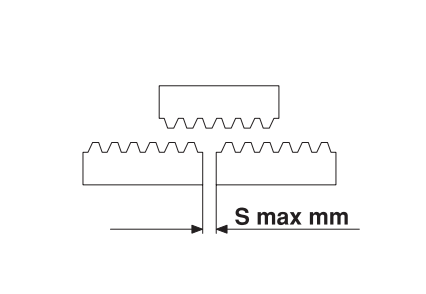

| Mod. | hp | he x S | L | ||||||||||||||||
| 500 | 1000 | 2000 | 3000 | ||||||||||||||||
| Cod. | Kg | Cod. | Kg | Cod. | Kg | Cod. | Kg | ||||||||||||
| 1 | 140 | 15 x 15 | CR 26050 | 820 | CR 26100 | 1,500 | CR 26200 | 3,100 | CR 26300 | 4,900 | |||||||||
| 15 | 155 | 17 x 17 | CR 27050 | 1,000 | CR 27100 | 2,000 | CR 27200 | 4,000 | CR 27300 | 6,100 | |||||||||
| 2 | 180 | 20 x 20 | CR 28050 | 1,400 | CR 28100 | 2,700 | CR 28200 | 5,400 | CR 28300 | 8,400 | |||||||||
| 25 | 225 | 25 x 25 | CR 29050 | 2,100 | CR 29100 | 4,300 | CR 29200 | 8,600 | CR 29300 | 11,900 | |||||||||
| 3 | 270 | 30 x 30 | CR 30050 | 3,100 | CR 30100 | 6,300 | CR 30200 | 12,500 | CR 30300 | 18,600 | |||||||||
| 4 | 18 | 22 x 22 | CR 37050 | 1,400 | CR 37100 | 3,250 | CR 37200 | 6,800 | |||||||||||
| 4 | 210 | 25 x 25 | CR 36050 | 1,800 | CR 36100 | 3,650 | CR 36200 | 7,300 | CR 36300 | 10,900 | |||||||||
| 4 | 260 | 30 x 30 | CR 33050 | 3,050 | CR 33100 | 6,000 | CR 33200 | 11,900 | CR 33300 | 18,100 | |||||||||
| 4 | 360 | 40 x 40 | CR 31050 | 5,500 | CR 31100 | 11,100 | CR 31200 | 22,000 | CR 31300 | 31,300 | |||||||||
| 5 | 450 | 50 x 50 | CR 32050 | 8,300 | CR 32100 | 17,500 | CR 32200 | 34,600 | CR 32300 | 45,300 | |||||||||
| 6 | 54 | 60 x 60 | CR 34050 | 12,650 | CR 34100 | 25,000 | CR 34200 | 51,000 | |||||||||||
| 8 | 720 | 80 x 80 | CR 39050 | 22,400 | CR 39100 | 45,000 | CR 39200 | 90,000 | |||||||||||
| Dati tecnici Technical specifications Technische Daten Donnees techniques Datos tecnicos | |||||||||||||||||||
| Mod. | Passo / Pitch Teilung / Pas Paso | S | L | ||||||||||||||||
| 500 | 1000 | 2000 | 3000 | ||||||||||||||||
| Z | Lr | Z | Lr | Z | Lr | Z | Lr | ||||||||||||
| 1 | 31,416 | 5 | 159 | 49,951 | 319 | 100,217 | 637 | 200,120 | 955 | 300,023 | |||||||||
| 15 | 47,124 | 6 | 106 | 49,951 | 213 | 100,374 | 425 | 200,277 | 637 | 300,180 | |||||||||
| 2 | 62,832 | 6 | 80 | 50,266 | 160 | 100,531 | 319 | 200,434 | 478 | 300,337 | |||||||||
| 25 | 78,540 | 7 | 64 | 50,266 | 128 | 100,531 | 255 | 200,277 | 382 | 300,023 | |||||||||
| 3 | 94,248 | 8 | 53 | 49,951 | 107 | 100,845 | 213 | 200,748 | 319 | 300,651 | |||||||||
| 4 | 125,664 | 8 | 40 | 50,266 | 80 | 100,531 | 160 | 201,062 | 239 | 300,337 | |||||||||
| 5 | 157,080 | 10 | 32 | 50,266 | 64 | 100,531 | 128 | 201,062 | 191 | 300,023 | |||||||||
| 6 | 188,496 | 10 | 27 | 50,894 | 54 | 101,788 | 107 | 201,691 | |||||||||||
| 8 | 251,328 | 10 | 20 | 50,266 | 40 | 100,531 | 80 | 201,062 | |||||||||||
| Passo 12.566 mm | Pitch 12.566 mm | Teilung 12.566 mm | Pas 12.566 mm | Paso 12.566 mm | |||||||||||||
| Modulo = 4 | Module = 4 | Modul = 4 | Modul = 4 | Modulo = 4 | |||||||||||||
| Dentatura diritta | Straight toothing | GeradeVerzahnung | Denture droite | Dentado derecho | |||||||||||||
| Angolo pressione 20° | Angle of pressure 20° | Eingriffswinskel 20° | Angle de pression 20° | Ángulode presiòn 20° | |||||||||||||
| Materiale | Material | Werkstoff | Matiere | Material | |||||||||||||
| C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | |||||||||||||
| Trattamento superficiale: | Surface treatment: | Oberflachenbehandlung: | Traitement de surface: | Tratamiento superficial: | |||||||||||||
| Zincatura | Zinc plating | Verzinken | Zingage | Cincado | |||||||||||||
