Product Description
Our company can produce all kinds of cutting-type V-belts for motorcycles. Such as motorcycles of model 50, mmodel 90, model 100, model 125, model 150. and V-belts for motorcars keeps lead level.

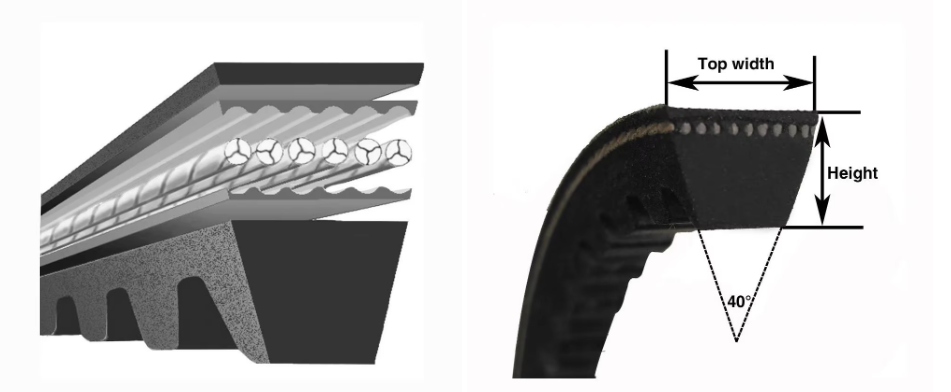

Technical Data Sheet
| Model | Unit | Vs15 | Vs15.5 | Vs16.5 | Vs17 | Vs18 | Vs19 | Vs20 | Vs22 | 极限偏差 |
| Top width | mm | 15 | 15.5 | 16.5 | 17 | 18 | 19 | 20 | 22 | ± 0.6 |
| Belt height | mm | 8 | 8.5 | 8.5 | 8.5 | 8.5 | 10 | 10 | 10 | ± 0.6 |
| Rib angle | ° | 28° 30° 32° | ± 1° | |||||||
| Specification | outer perimeter | inner perimeter | valid length | |||
| 641×15.5 | 653 | 600 | 650 | |||
| 661×15 | 763 | 620 | 760 | |||
| 666×16.5 | 669 | 615 | 666 | |||
| 669×17.5 | 684 | 631 | 681 | |||
| 669×17.5 | 681 | 627 | 678 | |||
| 669×18 | 680 | 630 | 677 | |||
| 667×17.5 | 681 | 627 | 678 | |||
| 669×17.5 | 677 | 627 | 684 | |||
| 692×17.5 | 704 | 651 | 701 | |||
| 708×18 | 720 | 667 | 717 | |||
| 710×17 | 720 | 667 | 717 | |||
| 710×17 | 721 | 667 | 718 | |||
| 710×17 | 724 | 667 | 721 | |||
| 729×17.7 | 741 | 688 | 738 | |||
| 740×17 | 752 | 695 | 749 | |||
| 734×20 | 758 | 695 | 755 | |||
| 746×20 | 758 | 695 | 755 | |||
| 759×20.1 | 758 | 695 | 755 | |||
| 760×19.5 | 758 | 695 | 755 | |||
| Specification | outer perimeter | inner perimeter | valid length | |||
| 765×17.5 | 777 | 721 | 774 | |||
| 777×17.5 | 777 | 721 | 774 | |||
| 788×15.5 | 788 | 736 | 785 | |||
| 788×17 | 800 | 746 | 797 | |||
| 788×16.6 | 792 | 736 | 789 | |||
| 792×16.6 | 792 | 742 | 789 | |||
| 797×16.6 | 797 | 746 | 794 | |||
| 799×19 | 818 | 757 | 815 | |||
| 799×19 | 815 | 752 | 812 | |||
| 811×20 | 814 | 751 | 811 | |||
| 811×20 | 811 | 751 | 808 | |||
| 811×20 | 827 | 764 | 824 | |||
| 811×20 | 831 | 768 | 828 | |||
| 821×20 | 831 | 768 | 828 | |||
| 835×20 | 842 | 779 | 839 | |||
| 842×20 | 842 | 719 | 839 | |||
| 858×22 | 870 | 801 | 867 | |||
| 870×22 | 870 | 801 | 867 | |||
| 1016×15 | 1066 | 101 | 1063 | |||
Agriculture Machinery Variable-speed Belt
| Dimension | symbol | HI | HJ | HK | HL | HM | ||||||||
| Nodal width | bp | 23.6 | 29.6 | 35.5 | 41.4 | 47.3 | ||||||||
| Upper width of the teeth | b | 25.4 | 31.8 | 38.1 | 44.5 | 50.8 | ||||||||
| height of the belt | h | 12.7 | 15.1 | 17.5 | 19.8 | 22.2 | ||||||||
| height above nodal circle | B | 3.8 | 4.7 | 5.7 | 6.6 | 7.6 | ||||||||
China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
