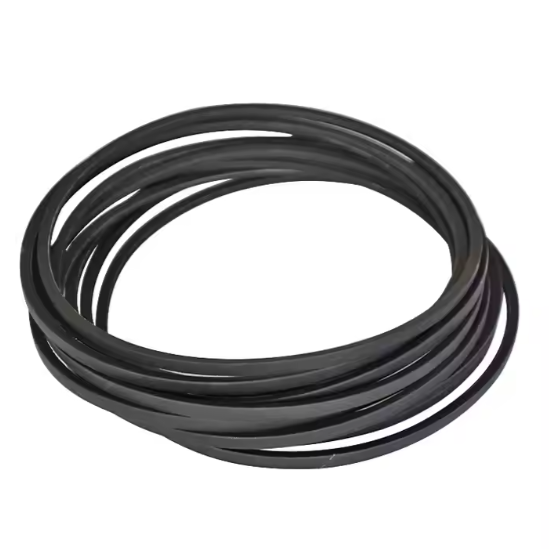

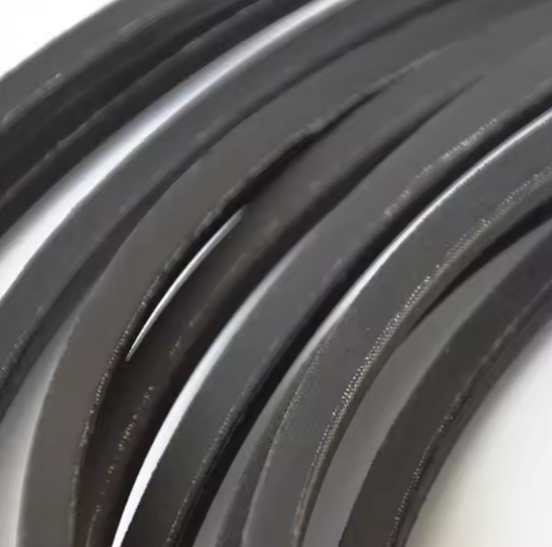

Classical V-Belt

Availability:
Quantity:

Product Description

1. Product Overview

The Classical Belt is a fundamental and widely - adopted power transmission device. Engineered with precision, it has been a cornerstone in mechanical systems across numerous industries for its proven reliability and versatility.

2. Design and Structure

Belt Body

Rubber Composition: The main body of the Classical Belt is crafted from high - quality rubber. This rubber is formulated to possess optimal flexibility and durability. For instance, in many standard applications, neoprene rubber is used. Neoprene offers excellent resistance to abrasion, oils, and a wide temperature range. It can withstand the constant flexing and friction that occurs during operation, ensuring a long service life.

Reinforcement Layers: Embedded within the rubber are reinforcement layers. These are typically made of strong materials such as polyester or nylon cords. The cords are arranged in a parallel fashion along the length of the belt. The polyester cords, known for their high tensile strength, provide the belt with the necessary strength to transmit power efficiently. They prevent the belt from stretching or breaking under load, maintaining the integrity of the power transmission system.

Cross - Sectional Shape

The Classical Belt has a trapezoidal cross - sectional shape. This design is crucial as it allows for better engagement with the pulleys. The angled sides of the trapezoid fit snugly into the corresponding grooves on the pulleys, minimizing slippage and ensuring efficient power transfer. The specific dimensions of the trapezoid, such as the top width, bottom width, and height, are standardized to ensure compatibility with a wide range of pulley sizes and types.

3. Key Features

High Transmission Efficiency

The design of the Classical Belt enables it to achieve high transmission efficiency. The smooth surface of the belt in contact with the pulley, combined with the proper tensioning, reduces energy losses due to friction. In most industrial applications, it can achieve an efficiency of up to 95%. This high efficiency not only saves energy but also reduces the overall operating costs of the machinery.

Quiet Operation

One of the notable features of the Classical Belt is its quiet operation. The rubber material of the belt acts as a shock absorber, dampening vibrations that could otherwise create noise. This makes it an ideal choice for applications where noise reduction is a priority, such as in office equipment, household appliances, and some medical devices.

Flexibility and Adaptability

The Classical Belt is highly flexible, allowing it to bend around pulleys of various diameters. This flexibility makes it suitable for use in different types of mechanical systems, including those with complex pulley arrangements. It can easily adapt to changing operating conditions, such as variations in speed and load, without sacrificing performance.


Technical Data Sheet

 classical

A-Section
(Please consult us if there are no reqiured size in follows sheet)
Belt code Mark: A+ Lp(Inch) Pitch Length/Lp(mm) Lp(mm) = Lp(lnch)x 25.4
A11~A270(+1"/260pcs) 279.4~6858mm(+25.4mm/260pcs)
A275/A280~A470(+10"/20pcs) 6985mm/7112~11938mm(+254mm/20pcs)

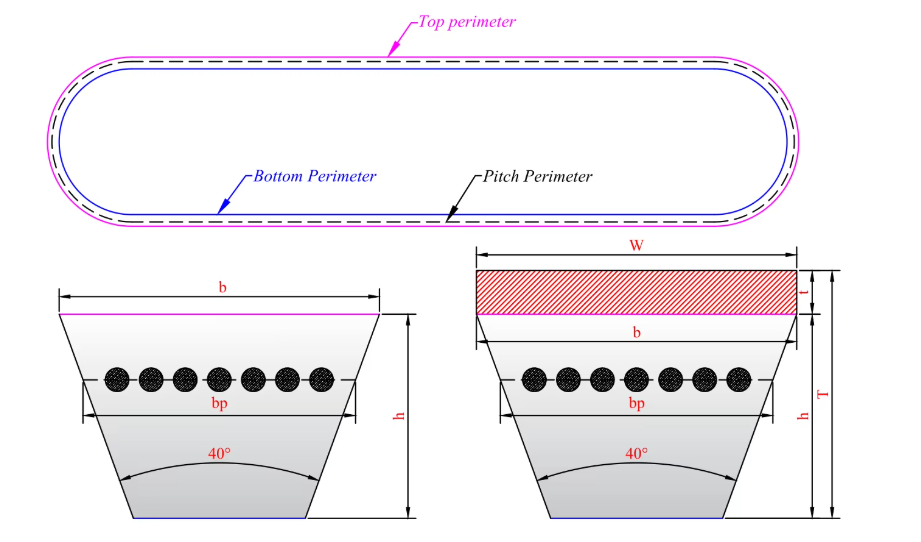

Section Type & Parameter
(Width = Ribs/Peaks number x Pitch/P)
Section M A B C D E
Top width(b)/mm 10 13 17 22 32 40
Pitch width(bp)/mm 8.0 9.2 12.5 16.9 24.6 28.7
Height of belt(h)/mm 6 9 11 14 19 25
Height of picth line to top/mm 2.7 4.5 5.5 7 9.5 12.7
Allowed Min. pulley pitch diameter/mm 40 67 118 180 300 450
Recommended Max. belt speed m/s 30
