GL Type Coupling

Availability:

Quantity:



Inquire Add to Basket

Product Description

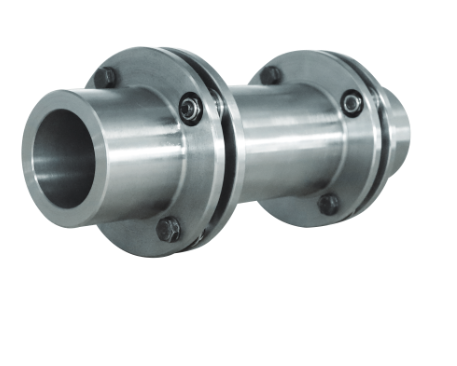

GL Type Couplings are a widely used coupling in industrial machinery that is designed with durability and precision in mind, and the surface is machined and phosphated to improve durability and precision. In addition, these couplings need to be dynamically balanced to ensure their performance when the rotational speed reaches half of the operating limit. It is also available in different construction types, such as roller chain couplings and splined rigid shaft couplings, etc.

The roller chain coupling usually consists of two parallel sprockets and a double-row roller chain, which allows it to work at low speeds, heavy loads and high temperatures, and has a certain compensation capacity. Splined rigid shaft couplings are suitable for applications that require high torque transmission.

In addition, our company can also customize according to the needs of our customers, and these couplings are widely used in various industrial equipment, such as pumps, fans, and other transmission systems, for efficient and reliable connections.

In summary, GL Type Couplings are high-performance, versatile couplings that are suitable for a wide range of industrial applications and are able to meet the needs and standards of different customers.

parameter

Catalog

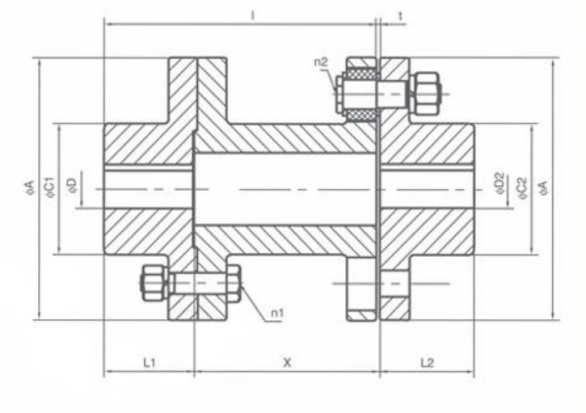

AxX

Fundamental dimensions

Bore

n1

n2

Max Torque (Nm)

Max Revolution (rpm)

Moment of Inertia (kg.cm)

G (kg)

L

L1

L2

C1

C2

t

poilot

max

GL-112x100
GL-125x100
GL-140x100
GL-140x140
GL-160x100

134
139
144
184
150

37
42
47
47
53

40
45
50
50
56

50
56
71
71
80

3
3
3
3
3

11
11
11
11
11

28
32
38
38
45

4
4
6
6
8

33
73
130
130
200

4000
4000
4000
4000
4000

79
140
220
230
380

5.53
7.47
9.9
10.5
12.8

GL-160x140
GL-180x100
GL-180x140
GL-180x180
GL-200x140

190
157
197
237
203

53
60
60
60
67

56
63
63
63
71

80
90
90
90
100

3
3
3
3
4

11
11
11
11
18

45
50
50
50
56

8
8
8
8
8

200
230
230
230
440

4000
3500
3500
3500
3200

390
620
630
640
1200

13.6
16.6
17.5
18.4
26.7

GL-200x180
GL-200x220
GL-224x140
GL-224x180
GL-224x220

243
283
212
252
292

67
67
76
76
76

71
71
80
80
80

100
100
112
112
112

4
4
4
4
4

18
18
18
18
18

56
56
63
63
63

8
8
8
8
8

440
440
510
510
510

3200
3200
2850
2850
2850

1300
1300
2000
2000
2000

27.8
28.9
33.9
35.3
36.7

GL-250x140
GL-250x180
GL-250x220
GL-250x260
GL-280x180

222
262
302
342
272

86
86
86
86
96

90
90
90
90
100

125
125
125
125
140

4
4
4
4
4

20
20
20
20
30

71
71
71
71
80

8
8
8
8
8

850
850
850
850
1500

2550
2550
2550
2550
2300

3600
3700
3700
3800
6200

49.6
51.5
53.4
55.3
69.4

GL-280x220
GL-280x260
GL-280x300
GL-315x180
GL-315x220

312
352
392
284
324

96
96
96
108
108

100
100
100
112
112

140
140
140
160
160

4
4
4
4
4

30
30
30
32
32

80
80
80
90
90

8
8
8
10
10

1500
1500
1500
2200
2200

2300
2300
2300
2050
2050

6300
6400
6500
10000
10000

71.8
74.2
76.6
90.6
93.7

GL-315x260
GL-315x300

364
404

108
108

112
112

160
160

4
4

32
32

90
90

10
10

2200
2200

2050
2050

11000
11000

96.8
99.8

DIN

ANSI

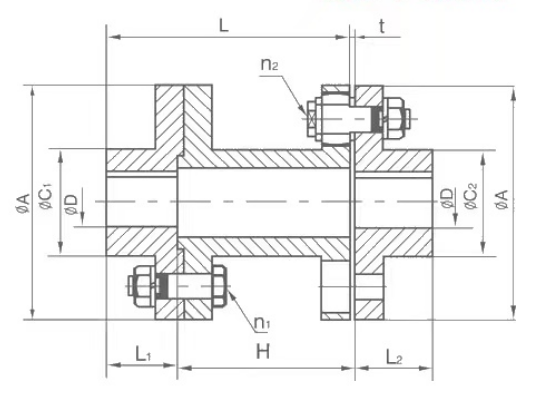

Catalog AXH	Fundamental Dimensions						Bore		n		Max Torque (In-Lb)	Max Revolution (rPm)	wt Lbs
Catalog AXH	L	L1	C1	L2	C2	t	pilot	Max	M1	n2	Max Torque (In-Lb)	Max Revolution (rPm)	wt Lbs
GL 44x40	51/4	17/16	2	19/16	2	0.118	-	11/8	4	4	292	4000	11.4
GL 50x40	57/16	15/8	23/16	13/4	23/16	0.118	-	11/4	4	4	646	4000	15.4
GL 55x40	511/16	17/8	23/16	2	213/16	0.118	-	11/2	6	6	1150	4000	20.4
GL 55x55	71/4	17/8	23/16	2	213/16	0.118	-	11/2	6	6	1150	4000	21.6
GL 63x40	515/16	21/16	31/8	23/16	31/8	0.118	-	13/4	8	8	1770	4000	26.4
GL 63x55	71/2	21/16	31/8	23/16	31/8	0.118	-	13/4	8	8	1770	4000	28.0
GL 71x40	63/16	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	34.2
GL 71x55	73/4	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	36.1
GL 71x63	95/16	23/8	31/2	21/2	31/2	0.118	-	2	8	8	2036	3500	37.9
GL 79x55	8	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	55.1
GL 79x71	99/16	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	57.3
GL79x79	113/16	25/8	4	213/16	4	0.157	11/16	23/16	8	8	3894	3200	59.6
GL 88x55	83/8	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2850	69.9
GL 88x71	915/16	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2850	72.8
GL 88x87	111/2	3	43/8	31/8	43/8	0.157	11/16	21/2	8	8	4524	2550	75.7
GL 100x55	83/4	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	102
GL 100x71	105/16	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	106
GL 100x87	117/8	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	110
GL 100x100	137/16	33/8	5	31/2	5	0.157	3/4	23/4	8	8	7523	2550	114
GL 110x71	1011/16	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	143
GL 110x87	121/4	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	148
GL 110x100	137/8	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	153
GL 110x118	157/16	33/4	51/2	4	51/2	0.157	13/16	31/8	8	8	13275	2300	158
GL 124x71	113/16	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	186
GL 124x87	123/4	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	193
GL 124x100	143/8	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	200
GL 124x118	1529/32	41/4	61/4	43/8	61/4	0.157	11/4	31/2	10	10	19470	2050	200
