Product Description

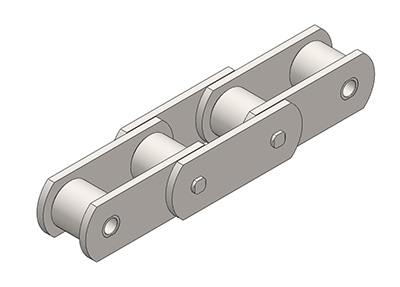

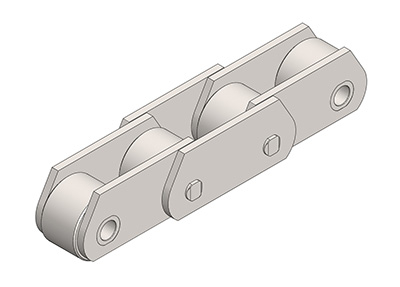

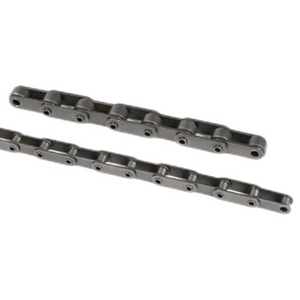

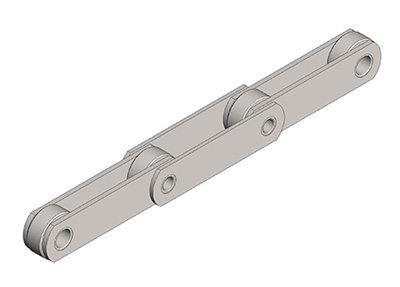

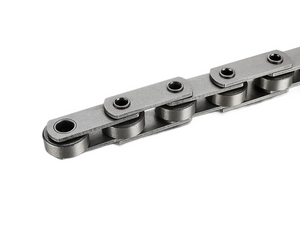

Metric (M series) conveyor chain conforms to ISO and DlN standards, mainly including M type conveyor chain, MT type conveyor chain and MC type hollow pin shaft conveyor chain:
Metric conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging from 40 mm to 1000 mm). The rollers have various structural forms, and various accessories are arranged according to the service conditions
M-type is solid pin conveyor chain, MC-type is hollow pin conveyor chain, MT-type is large roller heightening chain plate conveyor chain, and MC-type and MT-type chain shave two kinds of products with tensile strength indexes for users to choose from.
Products are widely used in mechanical conveying and loading and unloading equipment in metallurgy, mining, sugar making, wine making, ceramics, paper making and other industries.

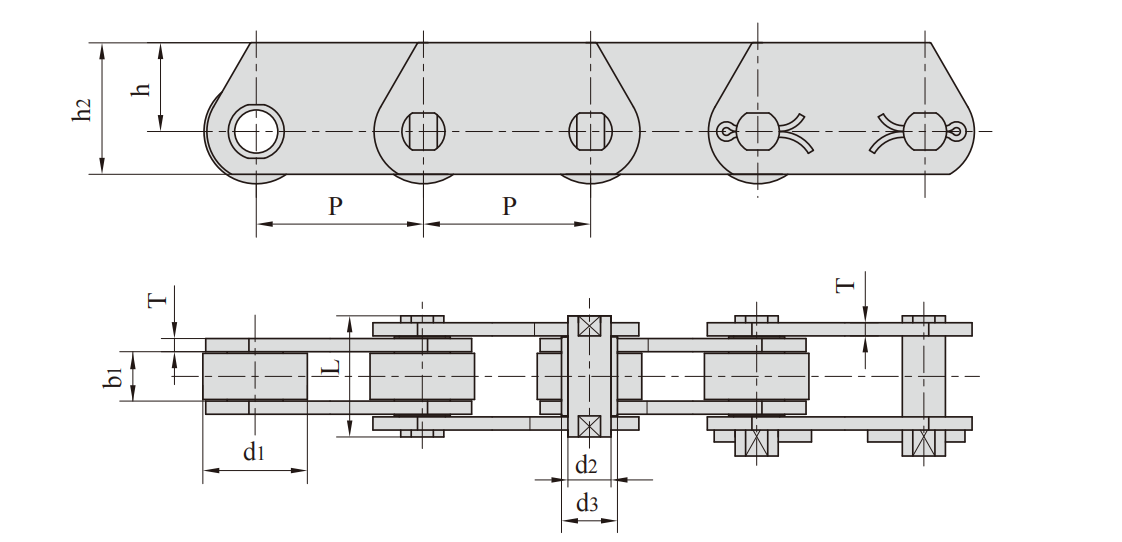

Parameter
| DIN Chain No | Pitch | Roller diameter | Pin diameter | Bush diameter | Plate thickness | ||||
| P | d1 max | d2 max | d3 max | T max | |||||
| mm | mm | mm | mm | mm | |||||
| MT20 | 40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 25.0 | 6.0 | 9.0 | 2.5 |
| MT28 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 30.0 | 7.0 | 10.0 | 3.0 |
| MT40 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 36.0 | 8.5 | 12.5 | 3.5 |
| MT56 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 42.0 | 10.0 | 15.0 | 4.0 |
| MT80 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 50.0 | 12.0 | 18.0 | 5.0 |
| MT112 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 60.0 | 15.0 | 21.0 | 6.0 |
| MT160 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 70.0 | 18.0 | 25.0 | 7.0 |
| MT224 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 85.0 | 21.0 | 30.0 | 8.0 |
| MT315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 100.0 | 25.0 | 36.0 | 10.0 |
| MT450 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 120.0 | 30.0 | 42.0 | 12.0 |
| DIN Chain No | Width between inner plates | Pin length | Plate depth | Tensile strength | ||
| b1 min | L max | h2 max | h max | Q min | *Q min | |
| mm | mm | mm | mm | kN/lbf | kN/lbf | |
| MT20 | 16.0 | 35.0 | 25.0 | 16.0 | 20.0/4545 | 32.0/7270 |
| MT28 | 18.0 | 40.0 | 30.0 | 20.0 | 28.0/6364 | 42.0/9545 |
| MT40 | 20.0 | 45.0 | 35.0 | 22.5 | 40.0/9091 | 60.0/13635 |
| MT56 | 24.0 | 52.0 | 45.0 | 30.0 | 56.0/12727 | 85.0/19318 |
| MT80 | 28.0 | 62.0 | 50.0 | 32.5 | 80.0/18182 | 125.0/28408 |
| MT112 | 32.0 | 73.0 | 60.0 | 40.0 | 112.0/25454 | 175.0/39768 |
| MT160 | 37.0 | 85.0 | 70.0 | 45.0 | 160.0/36364 | 260.0/59090 |
| MT224 | 43.0 | 98.0 | 90.0 | 60.0 | 224.0/50909 | 340.0/77272 |
| MT315 | 48.0 | 112.0 | 100.0 | 65.0 | 315.0/71591 | 520.0/118180 |
| MT450 | 56.0 | 135.0 | 120.0 | 80.0 | 450.0/102272 | 700.0/159089 |
| *Q denotes the tensile strength after hardened | ||||||
