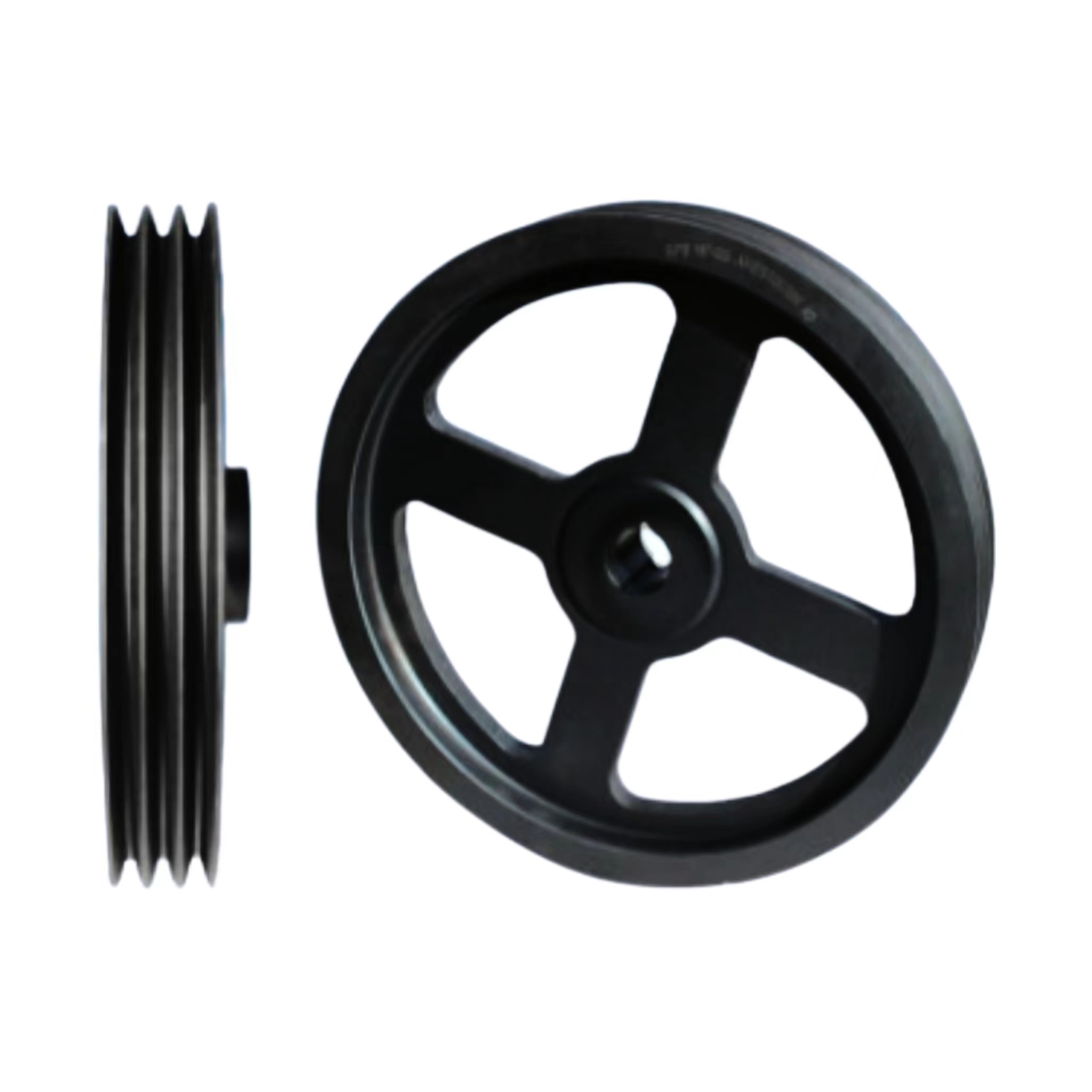

SPA Stock Bore V-pulleys

Availability:

Quantity:



Inquire Add to Basket

Product Description

According to different groove types, Stock Bore V-pulleys pulleys are divided into various types, including SPA type, SPB type, SPC type, and SPZ type. Each type of pulley has its specific application scenarios and advantages. For example, SPB type pulleys are suitable for applications that require high belt tension.

Our company can select suitable models and specifications for you based on specific mechanical requirements and working conditions.

Parameter

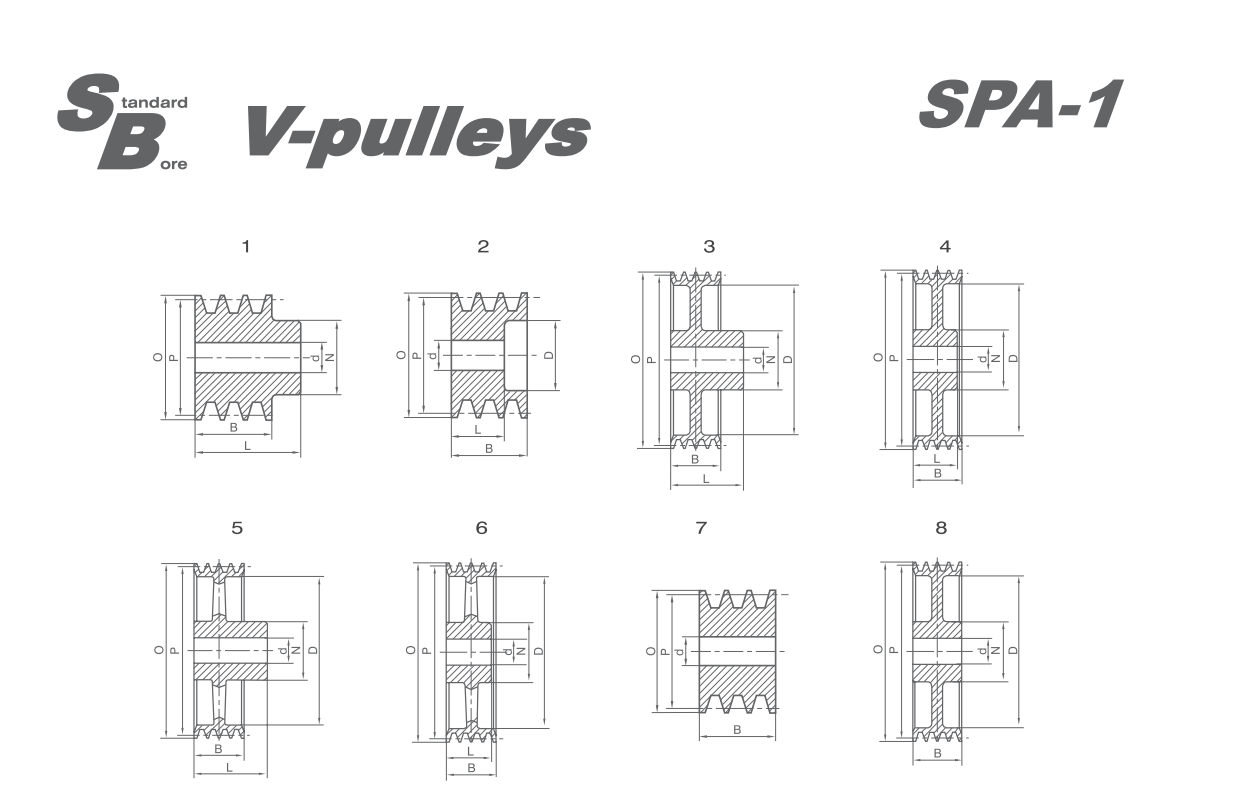

SPA-1

Part No.	No.of grooves	O.D	P.D	Type	N	L	D	E	B	d
SPA40-1S SPA50-1S SPA60-1S SPA71-1S SPA75-1S	1 1 1 1 1	45.5 55.5 65.5 76.5 80.5	40 50 60 71 75	1 1 1 1 1	40 40 40 40 40	35 35 35 40 40	- - - - -	- - - - -	20 20 20 20 20	10 10 10 10 10




SPA80-1S SPA85-1S SPA90-1S SPA95-1S SPA100-1S	1 1 1 1 1	85.5 90.5 95.5 100.5 105.5	80 85 90 95 100	1 1 1 1 1	45 45 45 45 48	40 40 40 40 40	- - - - -	- - - - -	20 20 20 20 20	10 10 10 10 10




SPA106-1S SPA112-1S SPA118-1S SPA132-1S SPA140-1S	1 1 1 1 1	111.5 117.5 123.5 137.5 145.5	106 112 118 132 140	1 1 1 1 3	48 48 60 60 60	40 40 40 40 40	- - - - -	- - - - -	20 20 20 20 20	10 10 15 15 15
SPA150-1S SPA160-1S SPA170-1S SPA180-1S SPA200-1S	1 1 1 1 1	155.5 165.5 175.5 185.5 205.5	150 160 170 180 200	3 3 3 3 3	60 60 60 65 65	40 40 40 40 45	117 127 137 147 167	10 10 10 10 10	20 20 20 20 20	15 15 15 20 20




SPA224-1S SPA250-1S SPA280-1S SPA300-1S SPA315-1S	1 1 1 1 1	229.5 255.5 285.5 305.5 320.5	224 250 280 300 315	3 3 5 5 5	65 75 75 75 75	45 50 50 50 60	192 217 247 267 282	10 12 14 14 14	20 20 20 20 20	20 20 20 20 20




SPA355-1S SPA400-1S SPA450-1S	1 1 1	360.5 405.5 455.5	355 400 450	5 5 5	75 90 90	50 50 50	322 367 417	14 14 14	20 20 20	20 20 20

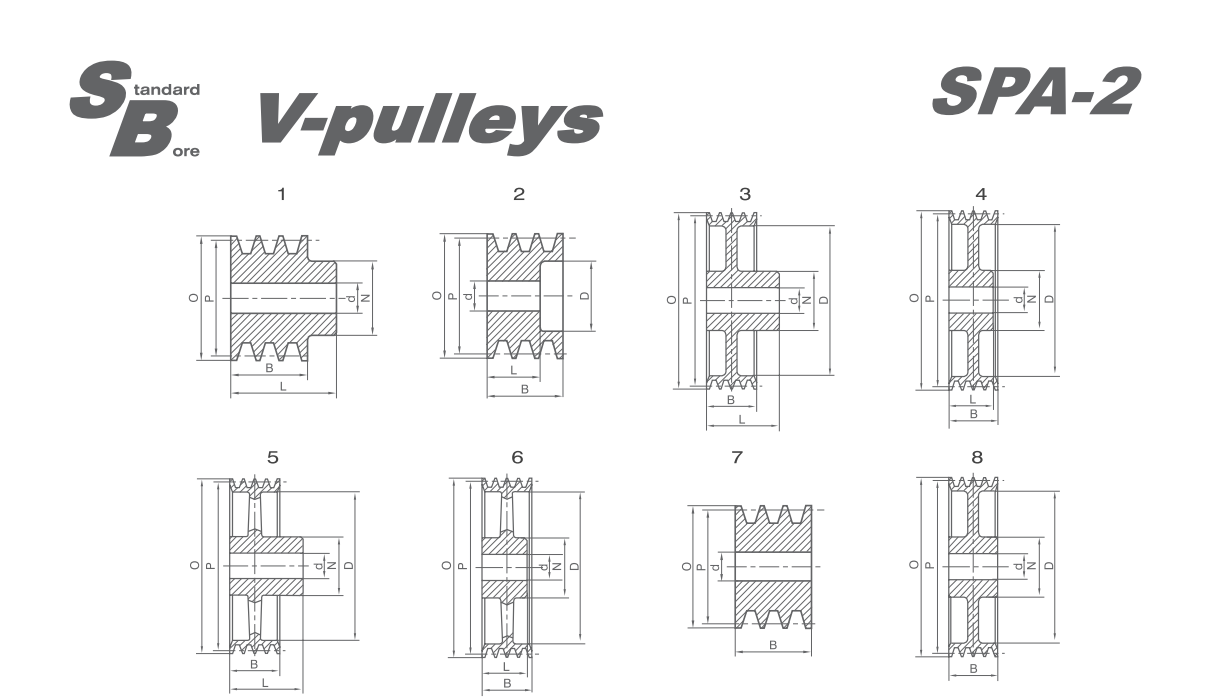

SPA-2

Part No.	No.Of grooves	O.D	P.D	Type	N	L	D	E	B	d
SPA50-2S SPA60-2S SPA71-2S SPA75-2S SPA80-2S	2 2 2 2 2	55.5 65.5 76.5 80.5 85.5	50 60 71 75 80	1 1 1 1 1	40 40 50 50 50	45 45 45 45 45	- - - - -	- - - - -	35 35 35 35 35	10 10 10 10 10




SPA85-2S SPA90-2S SPA95-2S SPA100-2S SPA106-2S	2 2 2 2 2	90.5 95.5 100.5 105.5 111.5	85 90 95 100 106	1 1 1 1 1	50 60 60 60 60	45 45 45 45 45	- - - - -	- - - - -	35 35 35 35 35	10 15 15 15 15

SPA112-2S SPA118-2S SPA132-2S SPA140-2S SPA150-2S	2 2 2 2 2	117.5 123.5 137.5 145.5 155.5	112 118 132 140 150	1 1 1 3 3	60 60 60 60 60	45 45 45 45 45	- - - 107 117	- - - - -	35 35 35 35 35	15 15 15 15 15




SPA160-2S SPA170-2S SPA180-2S SPA200-2S SPA224-2S	2 2 2 2 2	165.5 175.5 185.5 205.5 229.5	160 170 180 200 224	3 3 3 3 3	60 60 70 70 70	45 45 50 50 50	127 137 147 167 192	10 10 12 12 12	35 35 35 35 35	15 15 20 20 20




SPA250-2S SPA280-2S SPA300-2S SPA315-2S 5PA355-2S	2 2 2 2 2	255.5 285.5 305.5 320.5 360.5	250 280 300 315 355	3 5 5 5 5	75 80 80 80 80	50 50 50 50 50	217 247 267 282 322	12 14 14 14 14	35 35 35 35 35	20 20 20 20 20




SPA400-2S SPA450-2S SPA500-2S SPA560-2S SPA600-2S	2 2 2 2 2	405.5 455.5 505.5 565.5 605.5	400 450 500 560 600	5 5 5 5 5	90 100 100 100 110	50 50 50 50 50	367 417 467 527 567	14 14 16 18 18	35 35 35 35 35	20 25 25 25 25




SPA630-2S	2	635.5	630	5	110	50	597	18	35	25

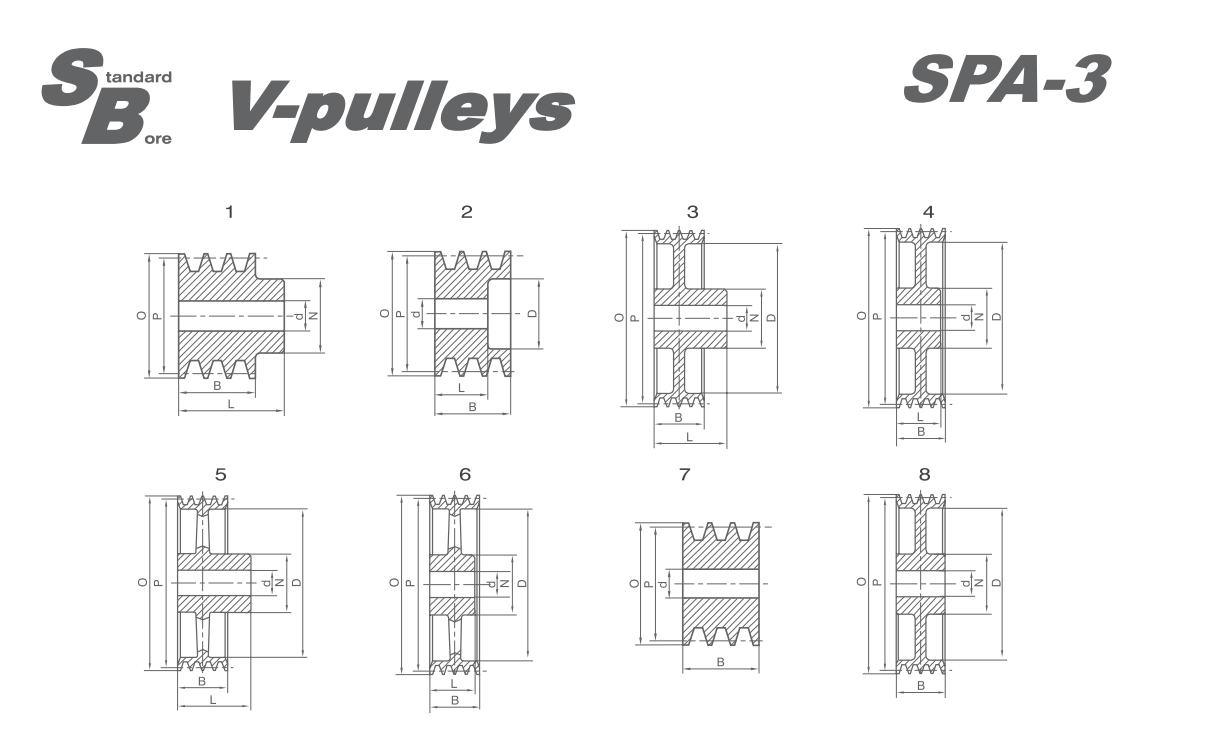

SPA-3

Part No.	No.Of grooves	O.D	P.D	Type	N	L	D	E	B	d
SPA60-3S SPA71-3S SPA75-3S SPA80-3S SPA85-3S	3 3 3 3 3	65.5 76.5 80.5 85.5 90.5	60 71 75 80 85	7 1 7 7 7	- 52 - - -	- 52 - - -	- - - - -	- - - - -	50 50 50 50 50	10 10 10 15 15
SPA90-3S SPA95-3S SPA100-3S SPA112-3S SPA118-3S	3 3 3 3 3	95.5 100.5 105.5 117.5 123.5	90 95 100 112 118	7 7 7 7 7	- - - - -	- - - - -	- - - - -	- - - - -	50 50 50 50 50	15 15 15 15 15
SPA132-3S SPA140-3S SPA150-3S SPA160-3S SPA170-3S	3 3 3 3 3	137.5 145.5 155.5 165.5 175.5	132 140 150 160 170	7 3 3 3 3	- 65 65 70 70	- 52 52 52 52	- 107 117 127 137	- 12 12 12 12	50 50 50 50 50	15 15 20 20 20




SPA180-3S SPA200-3S SPA224-3S SPA250-3S SPA280-3S	3 3 3 3 3	185.5 205.5 229.5 255.5 285.5	180 200 224 250 280	3 3 3 3 5	70 70 80 80 80	52 52 52 60 60	147 167 192 217 247	12 12 12 12 14	50 50 50 50 50	20 20 20 20 20




SPA300-3S SPA315-3S SPA355-3S SPA400-3S SPA450-3S	3 3 3 3 3	305.5 320.5 360.5 405.5 455.5	300 315 355 400 450	5 5 5 5 5	80 90 90 100 100	60 60 60 60 60	267 282 322 367 417	14 14 14 16 16	50 50 50 50 50	20 20 20 25 25




SPA500-3S SPA560-3S SPA600-3S SPA630-3S	3 3 3 3	505.5 565.5 605.5 635.5	500 560 600 630	5 5 5 5	105 120 120 120	60 65 65 65	467 527 567 597	20 20 20 20	50 50 50 50	25 25 25 25

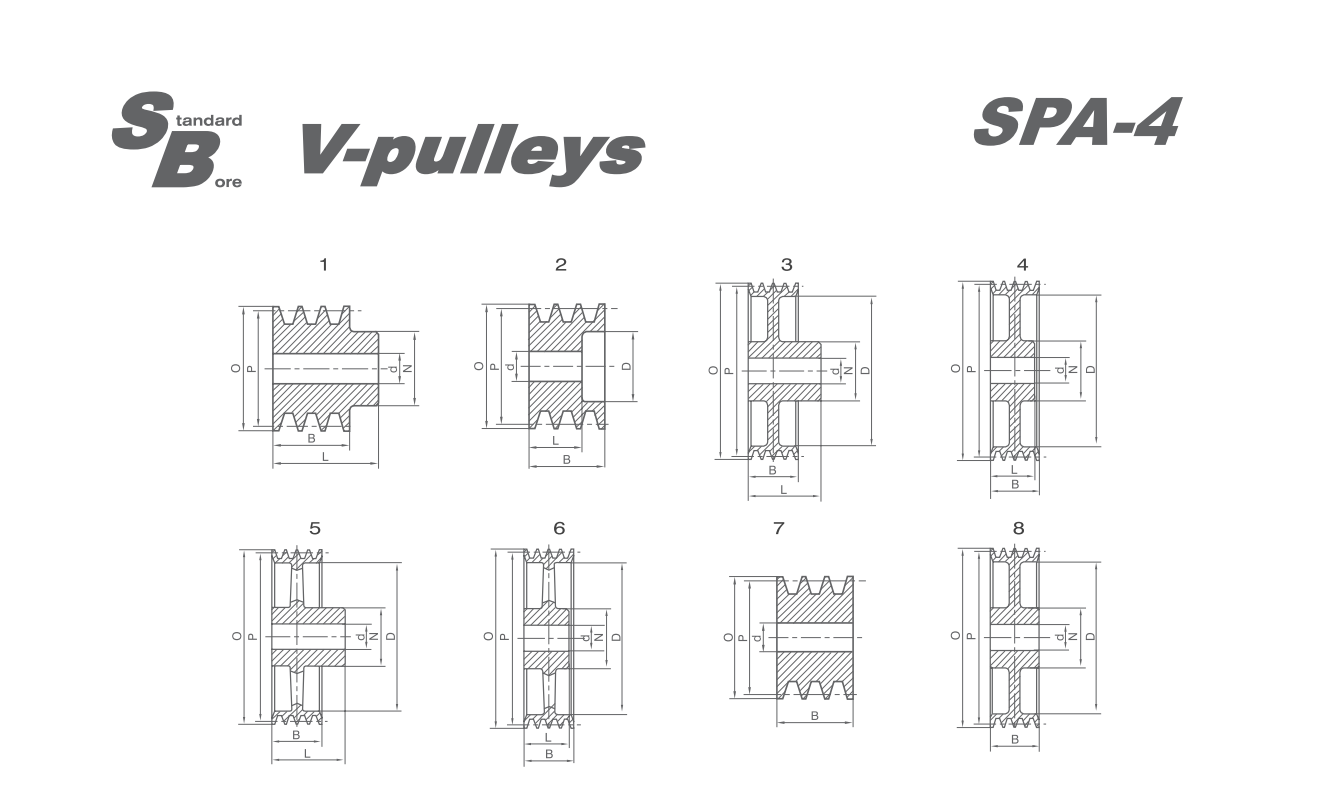

SPA-4

Part No.	No.Of grooves	O.D	P.D	Type	N	L	D	E	B	d
SPA75-4S SPA80-4S SPA85-4S SPA90-4S SPA95-4S	4 4 4 4 4	80.5 85.5 90.5 95.5 100.5	75 80 85 90 95	7 7 7 7 7	- - - - -	- - - - -	- - - - -	- - - - -	65 65 65 65 65	10 15 15 15 15
SPA100-4S SPA112-4S SPA118-4S SPA132-4S SPA140-4S	4 4 4 4 4	105.5 117.5 123.5 137.5 145.5	100 112 118 132 140	2 2 2 2 2	- - - - -	52 52 52 52 52	67 79 87 97 107	- - - - -	65 65 65 65 65	15 15 15 15 20
SPA150-4S SPA160-4S SPA170-4S SPA180-4S SPA200-4S	4 4 4 4 4	155.5 165.5 175.5 185.5 205.5	150 160 170 180 200	2 4 4 4 4	- 70 80 80 80	52 52 52 60 60	117 127 137 147 167	- 12 12 12 12	65 65 65 65 65	20 20 20 20 20




SPA224-4S SPA250-4S SPA280-4S SPA300-4S SPA315-4S	4 4 4 4 4	229.5 255.5 285.5 305.5 320.5	224 250 280 300 315	4 3 5 5 5	90 90 90 90 90	60 65 65 65 65	192 217 247 267 282	12 12 14 14 14	65 65 65 65 65	20 20 20 20 20




SPA355-4S SPA400-4S SPA450-4S SPA500-4S SPA560-4S	4 4 4 4 4	360.5 405.5 455.5 505.5 565.5	355 400 450 500 560	5 5 5 5 5	90 100 105 105 120	65 65 65 65 65	322 367 417 467 527	16 20 20 20 22	65 65 65 65 65	25 25 25 25 25




SPA600-4S SPA630-4S	4 4	605.5 635.5	600 630	5 5	120 120	65 65	567 597	22 22	65 65	25 25

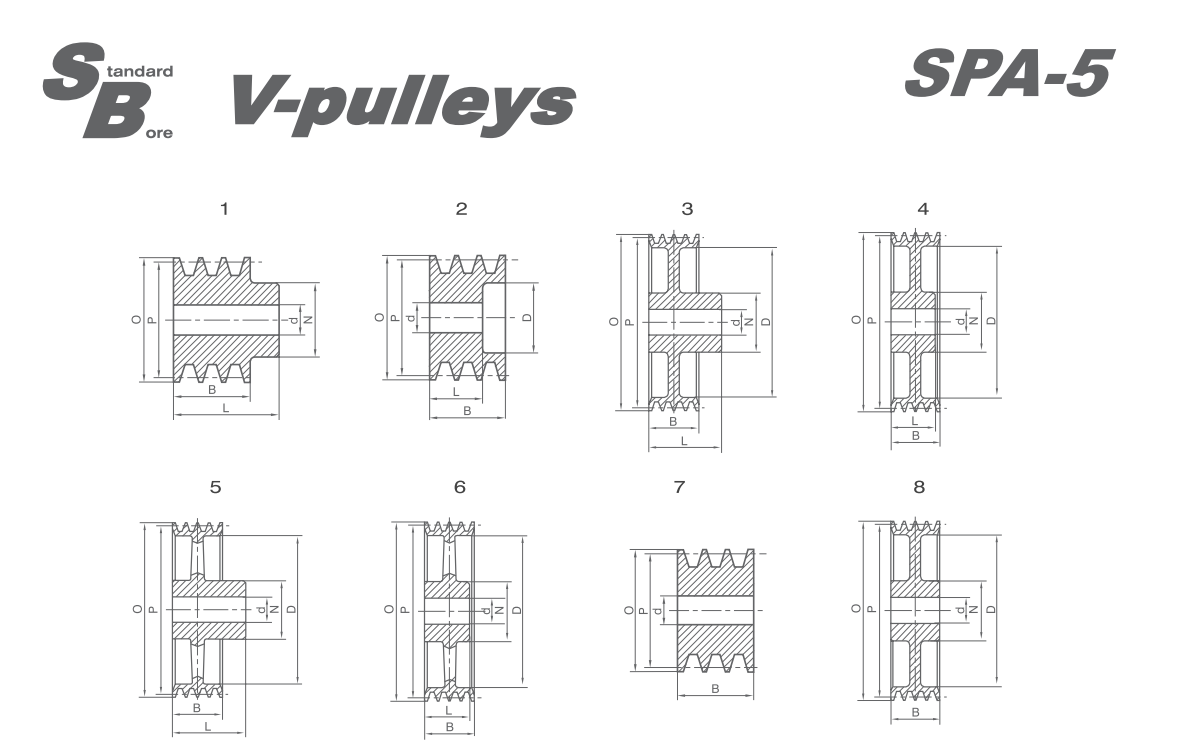

SPA-5

Part No.	No.Of Grooves	O.D	P.D	Type	N	L	D	E	B	d
SPA75-5S SPA80-5S SPA85-5S SPA90-5S SPA95-5S	5 5 5 5 5	80.5 85.5 90.5 95.5 100.5	75 80 85 90 95	7 7 7 7 7	- - - - -	- - - - -	- - - - -	- - - - -	80 80 80 80 80	10 15 15 15 15
SPA100-5S SPA112-5S SPA118-5S SPA132-5S SPA1 40-5S	5 5 5 5 5	105.5 117.5 123.5 137.5 145.5	100 112 118 132 140	2 2 2 2 2	- - - - -	52 52 52 52 52	67 79 87 97 107	- - - - -	80 80 80 80 80	15 15 15 15 20
SPA150-5S SPA160-5S SPA170-5S 5PA180-5S SPA200-5S	5 5 5 5 5	155.5 165.5 175.5 185.5 205.5	150 160 170 180 200	2 4 4 4 4	- 80 80 80 80	52 52 52 65 65	117 127 137 147 167	- 12 12 12 12	80 80 80 80 80	20 20 20 20 20




SPA224-5S SPA250-5S SPA280-5S 5PA300-5S SPA315-5S	5 5 5 5 5	229.5 255.5 285.5 305.5 320.5	224 250 280 300 315	4 4 6 6 6	90 90 100 100 100	65 65 65 65 65	192 217 247 267 282	12 12 14 14 16	80 80 80 80 80	20 20 25 25 25




SPA355-5S SPA400-5S SPA450-5S 5PA500-5S SPA560-5S	5 5 5 5 5	360.5 405.5 455.5 505.5 565.5	355 400 450 500 560	6 6 6 6 5	100 100 105 110 120	65 65 65 65 80	322 367 417 467 527	18 22 22 22 24	80 80 80 80 80	25 25 25 25 25




SPA600-5S SPA630-5S	5 5	605.5 635.5	600 630	5 5	120 120	80 80	567 597	24 24	80 80	25 25
