Splined Yoke 11

Availability:

Quantity:



Inquire Add to Basket

Product Description

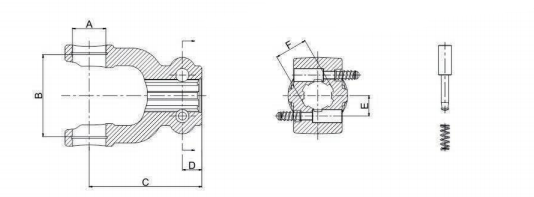

Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F
6.0511B	30.2	92	121	21	22	13/8"Z6
6.0511D			121			13/8"Z21
6.0511G	30.2	92	121	21	23.8	8-32X38X6
6.0511C			121	21	26.5	13/4"Z6
36.0511B	36	89	121	21	22	13/8"Z6
36.0511D						13/8"Z21
36.0511G			121	21	23.8	8-32X38X6
36.0511C					26.5	13/4"Z6
36.0511E						13/4"Z20
7.0511B	30.2	106.5	128	21	22	13/8"Z6
7.0511D						13/8"Z21
7.0511G					23.8	8-32X38X6
8.0511B	35	106.5	128	21	22	13/8"Z6
8.0511D						13/8"Z21
8.0511G					23.8	8-32X38X6
8.0511C			128	21	26.5	13/4"Z6
8.0511E						13/4"Z20
10.0511B	41	118	140	28	22	13/8"Z6
10.0511D						13/8"Z21
10.0511G					23.8	8-32X38X6
10.0511C					26.5	13/4"Z6
10.0511E						13/4"Z20
42.0511B	42	104.5	138	21	22	13/8"Z6
42.0511D						13/8"Z21
42.0511G					23.8	8-32X38X6
42.0511C					26.5	13/4"Z6
42.0511E						13/4"Z20
50.0511B	50	118	145	21	22	1.3/8"Z6
50.0511D						13/8"Z21
50.0511G	50	118	145		23.8	8-32X38X6
50.0511C					26.5	13/4"Z6
50.0511E						13/4"Z20
