Car Parking Chains

Availability:
Quantity:

Product Description

In addition to plate chain, traction chain also includes parking garage chain, multi-plate pin chain and roller-free lifting chain, among which multi-plate pin chain meets DIN standard, and roller-free lifting chain is basically the same as standard chain in size .

Using high-quality raw materials and advanced processing technology. the products have high tensile strength and high fatigue strength, ensuring smooth, safe and reliable lifting process. The tensile strength of roller chain for parking garage is more than 1.2 times of the minimum tensile strength of ISO 606 standard roller chain.

Products are widely used in lifting and traversing parking equipment, vertical lifting equipment and other facilities.

Parameter

产品图纸3

Chain No. Pitch Roller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Inner
plate
depth
Plate
thickness
Bolt
type
Tensile
strength
Average
tensile
strength
Weight
per
meter
P d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
T
max
M Q
min
Q0 q
mm mm mm mm   mm mm mm mm mm kN/lbf kN kg/m
16ALT-1 25.40  15.88  15.75  7.92  32.7  36.5  24.0  3.25  M20 71.55/16261 81.8  2.60
16ALT-2 25.40  15.88  15.75  7.92  62.7  65.8  24.0  3.25  M20 143.10/32523 166.3  5.15
20ALT-1 31.75  19.05  18.90  9.53  40.4  44.7  30.0  4.00  M24 107.85/24511 118.6  3.91
20ALT-2 31.75  19.05  18.90  9.53  76.4  80.5  30.0  4.00  M24 215.70/49023 234.4  7.80
20ALT-3 31.75  19.05  18.90  9.53  112.2  116.3  30.0  4.00  M24 323.55/73534 351.6  11.77
24ALT-1 38.10  22.23  25.22  11.10  50.3  54.3  35.7  4.80  M30 149.20/330909 161.1  5.62
24ALT-2 38.10  22.23  25.22  11.10  95.8  99.7  35.7  4.80  M30 298.40/67818 322.2  11.70

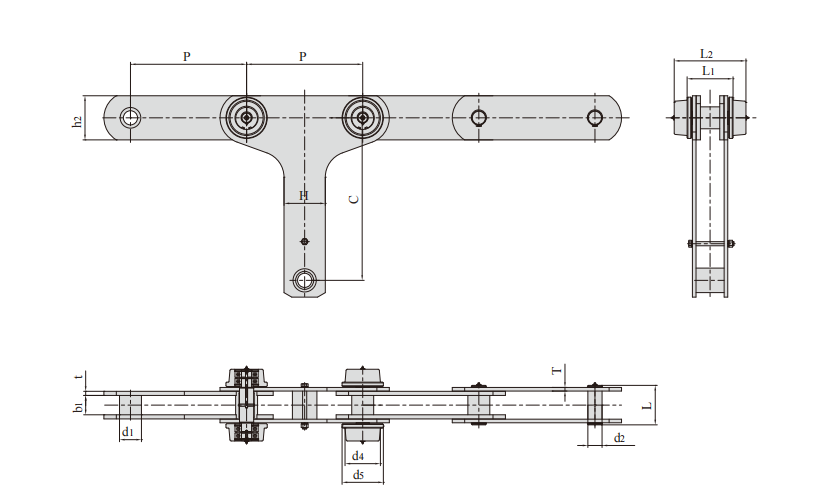

产品图纸4

Chain No. Pitch Boush
diameter
Roller
diameter
Width between
inner
plates
   Pin
diameter
 Pin
length
Plate
depth
Plate
thickness
Attachment
dimension
Tensile
strength
P d1
max
d4
min
d5
min
b1 d2
max
L
max
h2 t/T C H L1 L2  Q
min
mm mm   mm mm mm mm mm mm mm mm mm mm mm   kN/lbf
P450F1 450.0  85.0  137.0  158.0  75  55  153  171  16/14 630  160  178  278  1800/404640
P450F2 450.0  85.0  136.5  180.0  75  55  174  171  16/14 675  170  166  282  1764/396547
P450F4 450.0  85.0  136.5  180.0  75  55  174  171  16/14 630  160  166  282  1764/396547

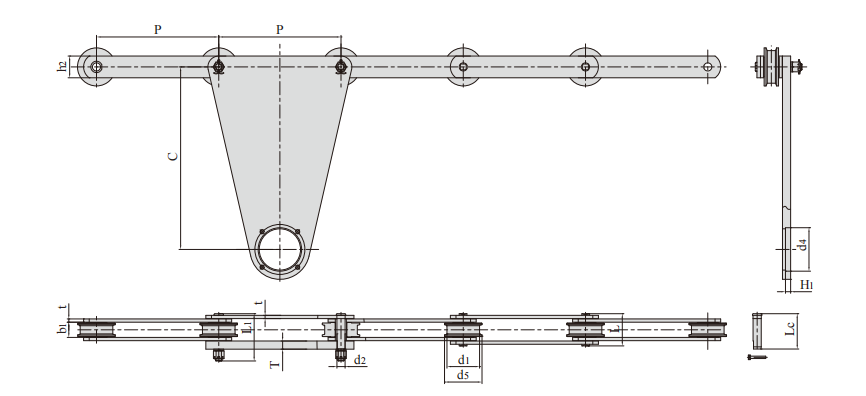

产品图纸5

Chain No. Pitch Roller
diameter
Width between
inner
plates
Pin
diameter
Pin
length
Plate
depth
Plate
thickness
Attachment
dimension
Tensile
strength
P d1
max
d5
min
b1 d2
max
L
max
Lc
max
L1
max
h2 t/T C d4  H₁ Q
min
mm mm mm mm mm mm mm mm mm mm mm mm  mm kN/lbf
P450F5 450  120  138  56  30  120  130.0  174.0  80  12.0/30.0 672  160.0  19  450.0/101160
P450F6 450  120  140  84  36  150  159.0  210.0  100  12.0/30.0 672  160.0  19  800.0/179840
P450F13 450  120  140  84  36  150  159.0  210.0  100  12.0/30.0 675  135.0  13  800.0/179840
*P460F1 460  118  138  51  36  - 134.5  173.5  90  14.0/20.0 665  110.4  - 650.0/146120
P460F2 460  120  140  84  36  150  159.0  202.0  100  12.0/25.0 675  135.0  13  800.0/179840
P460F3 460  130  144  60  36  126  135.0  185.0  100  12.0/30.0 650  110.0  - 800.0/179840
P460F5 460  100  119  55  30  118  130.0  160.0  75  12.0/20.0 570  107.0  - 650.0/146120
*With bearing inside roller
