Wood Conveyor Chains

Availability:

Quantity:



Inquire Add to Basket

Product Description

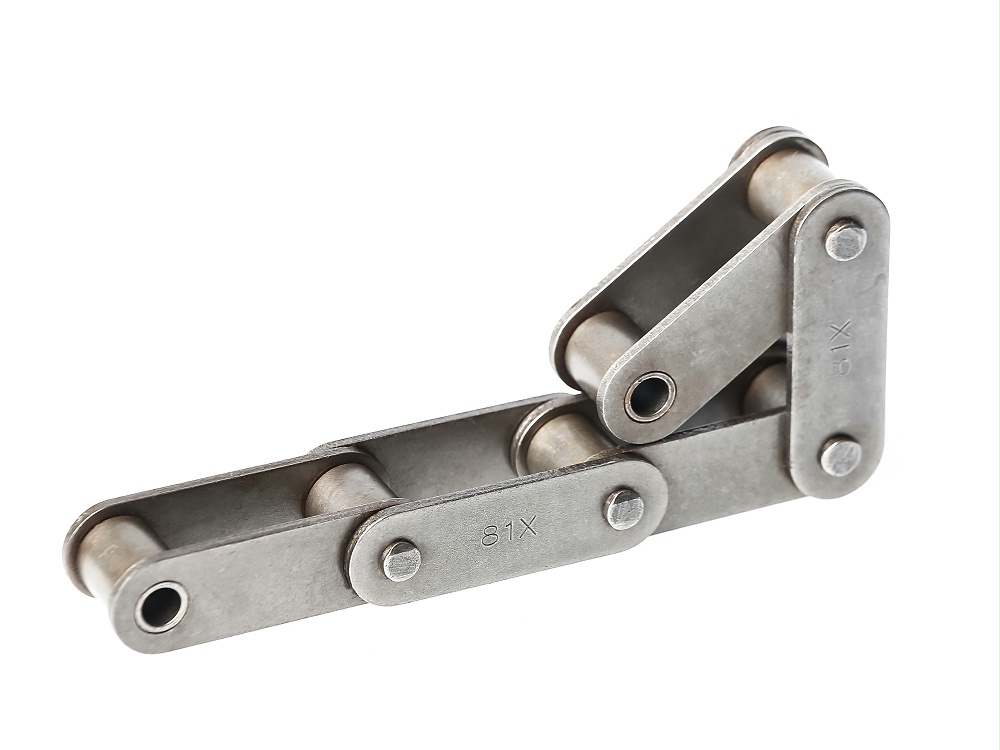

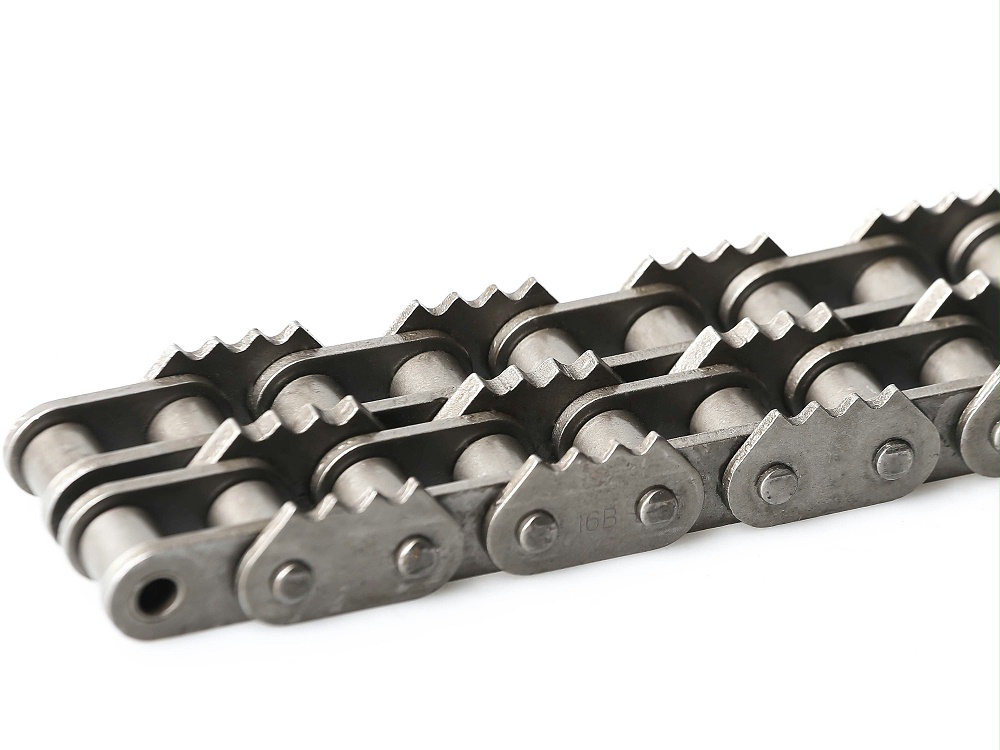

Wood conveying chain is used by wood processing enterprises for wood conveying，and its main products are 81X series, sharp tooth chain and so on;

Using high-quality materials and advanced processing technology, the product has the characteristics of high strength, high wear resistance, smooth transportation, etc.and the tooth surface of sharp teeth can be hardened according to the use requirements.

Products are widely used in wood conveying equipment.

Parameter

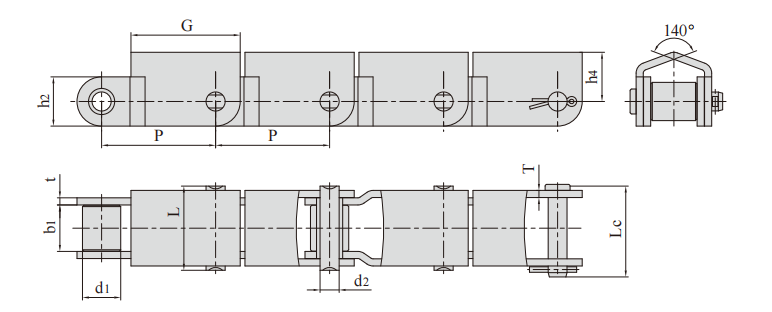

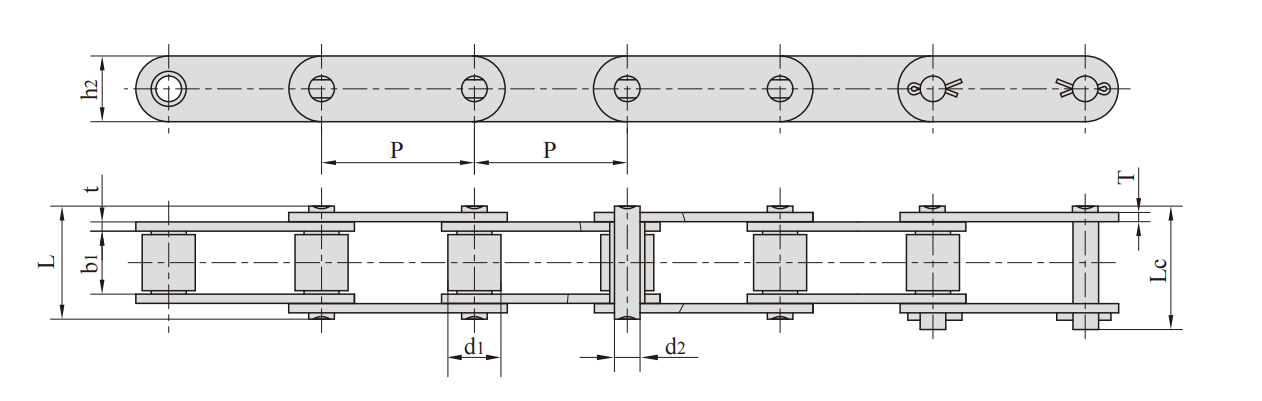

产品图纸1

Chain No	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	t/T max	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
P42.47F1	42.47	22.20	27.00	11.10	49.0	53.5	28.60	4.00	97.0/21806	106.7	4.74
500R	50.00	25.40	25.40	14.63	52.0	56.4	40.00	5.00	100.0/22727	114.5	7.13
500RF1	50.00	25.40	25.40	14.63	53.4	60.1	40.00	5.00	120.0/29376	132.0	7.23
81X	66.27	23.00	27.00	11.10	49.0	53.5	28.50	4.00	106.7/24250	128.9	3.78
81XF14	66.27	23.00	27.00	11.10	50.8	53.8	28.70	4.00	85.5/19426	91.4	3.78
81XH	66.27	23.00	27.78	11.10	60.7	65.1	31.35	7.94/5.55	151.9/34523	175.7	5.88
81XHE	66.27	22.20	27.00	11.10	59.5	63.0	28.50	6.30	83.3/18927	89.1	5.09
81XHH	66.27	23.00	27.78	11.10	65.6	70.0	31.35	7.94	191.1/43432	212.6	6.70
81XHS	66.27	23.00	27.00	11.10	63.6	68.0	31.80	7.60	152.0/34545	177.2	6.55
441.100R	100.00	25.40	25.40	14.63	52.0	56.4	40.00	5.00	100.0/22727	114.5	5.15
P100F271	100.00	25.40	25.40	14.63	54.0	58.0	40.00	5.00	100.0/22480	110.0	5.22

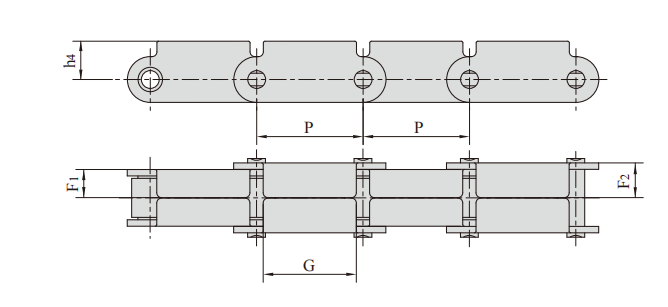

产品图纸2

Chain No.	P	F1	F2	G	h4
Chain No.	mm	mm	mm	mm	mm
81XF1(RT)	66.27	17.50	21.80	58.00	23.85

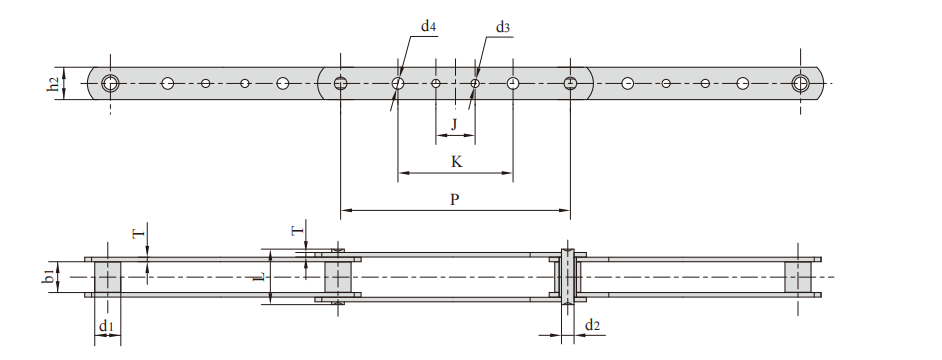

产品图纸3

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin dimension		Plate dimension					Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	h2 max	d3 max	d4 max	J max	K max	T max	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
3939-B4	203.2	23.0	27.0	11.1	49.0	28.58	7.2	7.2	38.1	101.6	4.0	115.58/26268	136.5	2.45
3939-B21	203.2	23.0	27.0	11.1	49.0	28.58	7.2	-	38.1	-	4.0	115.58/26268	136.5	2.45
3939-B23	203.2	23.0	27.0	11.1	49.0	28.58	-	10.3	-	92.1	4.0	115.58/26268	136.5	2.45
3939-B24	203.2	23.0	27.0	11.1	49.0	28.58	-	7.2	-	101.6	4.0	115.58/26268	136.5	2.48
3939-B40	203.2	23.0	27.0	11.1	49.0	28.58	-	10.3	-	101.6	4.0	115.58/26268	136.5	2.45
3939-B43	203.2	23.0	27.0	11.1	49.0	28.58	7.2	10.3	38.1	92.1	4.0	115.58/26268	136.5	2.42
3939-B44	203.2	23.0	27.0	11.1	49.0	28.58	7.2	10.3	38.1	101.6	4.0	115.58/26268	136.5	2.45
3939H-B4	203.2	23.0	27.0	11.1	58.0	28.60	-	7.2	38.0	102.0	6.4	150.00/34082	172.5	3.51

产品图纸4

Chain No.

Pitch

Roller
diameter

Width
between
inner plates

Pin
diameter

Pin
length

Plate
dimemsion

Tensile
strength

Weight
per
meter

P

d1
max

b1
min

d2
max

L
max

Lc
max

h2
max

t/T
max

G

h4

Q
min

q

mm

kN/lbf

kg/m

P66.27F6

66.27

22.23

27.00

11.10

49.00

53.80

28.60

4.15

63.50

28.60

97.8/21985

5.25

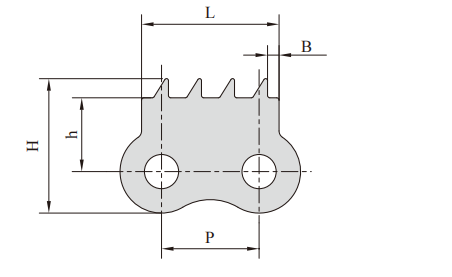

产品图纸5

Chain No.	P	h	H	B	L
Chain No.	mm	mm	mm	mm	mm
08B-940	12.70	9.60	17.50	1.50	17.90

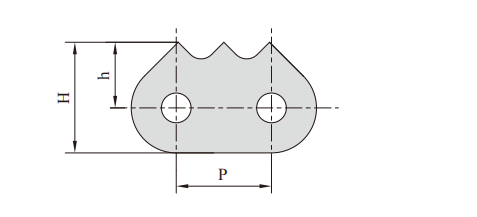

产品图纸6

Chain No.	P	h	H
Chain No.	mm	mm	mm
16AF1	25.40	17.5	29.50
C16A-3PEP	25.40	17.4	29.00
C16BF3	25.40	18.7	29.20

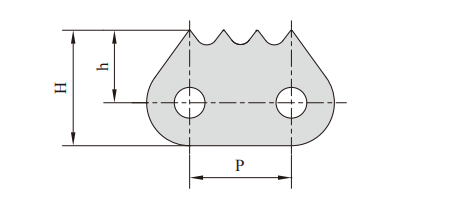

产品图纸7

Chain No.	P	h	H
Chain No.	mm	mm	mm
12BF3	19.05	13.5	21.5
C16A-1170	25.40	16.5	28.0
16B-1170	25.40	16.0	26.5
16B-1172	25.40	15.0	25.5
C24B-4STC	38.10	18.3	35.0

产品图纸8

Chain No.	P	h	H
Chain No.	mm	mm	mm
C60F2	19.05	13.38	22.48

Catalogue

Wood conveyor chains catalogue.pdf
