Product Description

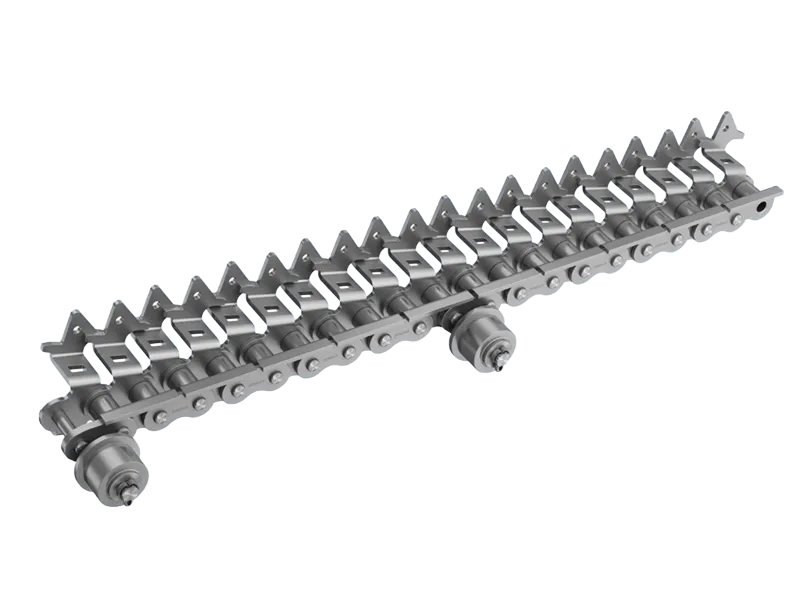

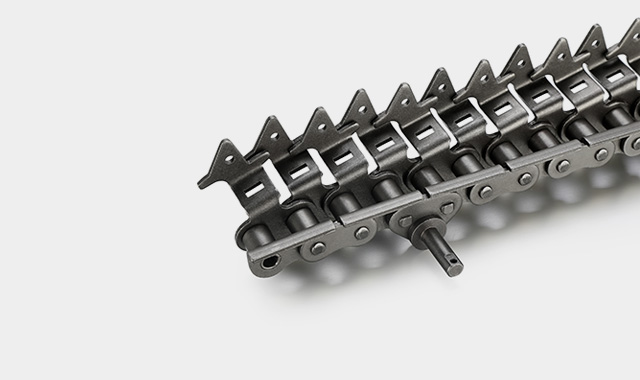

Printed iron drying room line chain is a chain with special accessories on the basis of standard short pitch precision roller chain as base chain; The typical product structure is that one side keeps the straightness of the chain by installing inner and outer supporting plates, and the other side transports articles by installing flower racks with inner and outer attached plates.
By optimizing the structural design, adopting high-quality materials and advanced processing technology, the product has the characteristics of high matching accuracy.stable conveying and high synchronization, and is suitable for high-temperature use in drying room conveying lines.
Products are widely used in equipment such as printing on the surface of metal sheet or drying and conveying after coating.

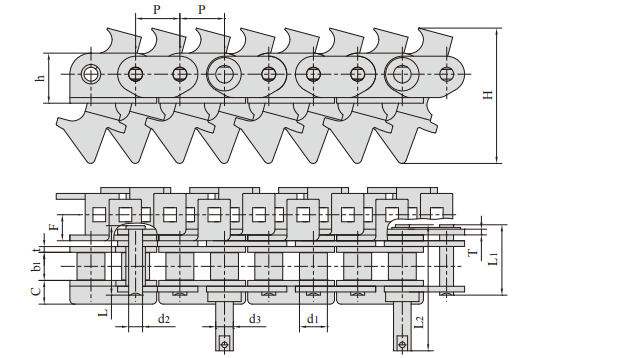

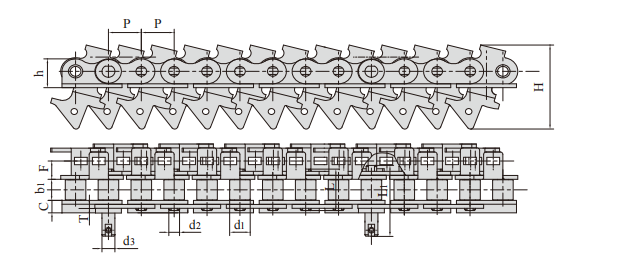

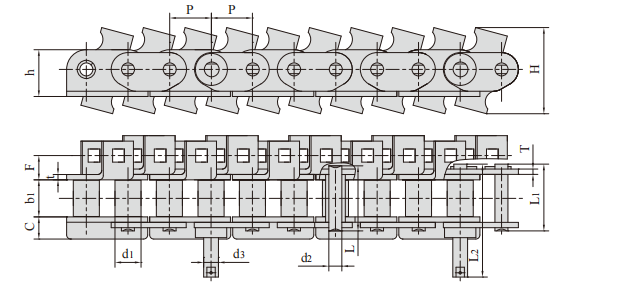

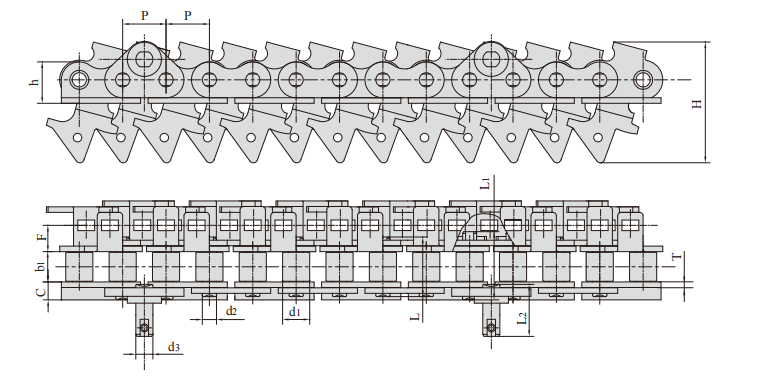

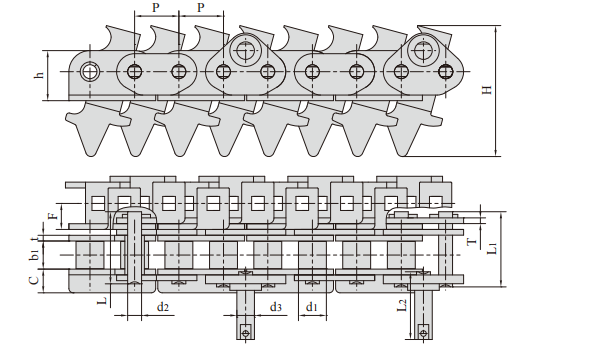

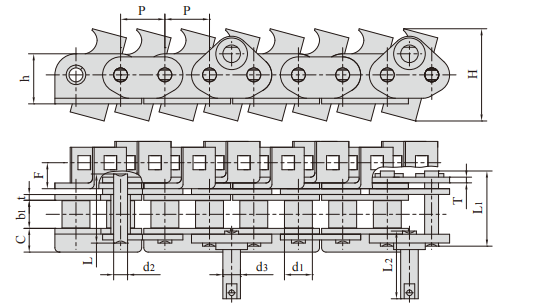

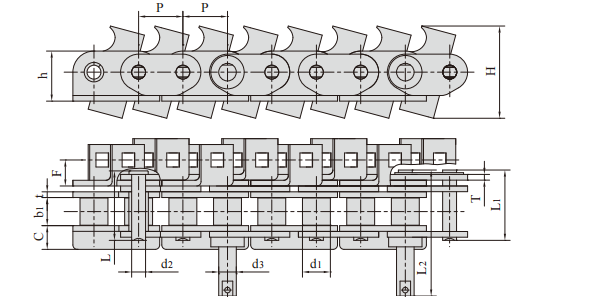

Parameter

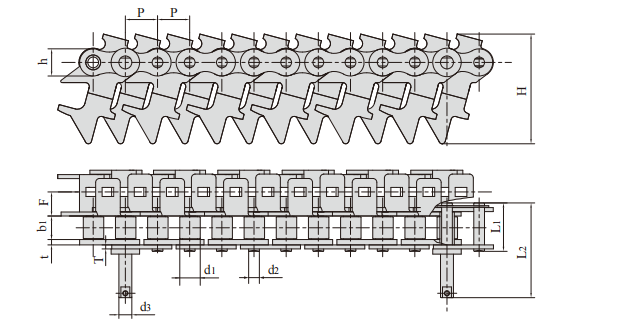

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plates dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 max | L max | L1 max | L2 max | h | T | H | F | C | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| 16AF90 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 32.7 | 38.4 | 43.1 | 28.3 | 3.25 | 70.0 | 14.5 | 10.00 | 55.6/12499 |
| HX16AF42 | 25.4 | 15.88 | 19.00 | 7.92 | 10.0 | 35.6 | 41.0 | 43.4 | 24.3 | 3.10 | 70.6 | 14.5 | 10.15 | 54.0/12139 |
| 16BF10 | 25.4 | 15.88 | 19.00 | 8.28 | 10.0 | 36.1 | 41.0 | 43.1 | 25.0 | 3.10 | 70.5 | 15.5 | 10.15 | 40.0/9090 |
| 16BF27 | 25.4 | 15.88 | 19.00 | 8.28 | 10.0 | 36.1 | 41.0 | 43.1 | 25.0 | 3.10 | 85.0 | 17.0 | 10.15 | 40.0/9090 |
| 16BF57 | 25.4 | 15.88 | 19.00 | 7.92 | 10.0 | 36.5 | 41.4 | 43.1 | 28.3 | 3.25 | 70.0 | 14.5 | 10.00 | 54.0/12139 |
| HX16BF2 | 25.4 | 15.88 | 19.00 | 7.92 | 10.0 | 35.6 | 41.0 | 47.5 | 24.3 | 3.10 | 70.6 | 14.5 | 10.15 | 54.0/12139 |
| HX16BF8 | 25.4 | 15.88 | 19.00 | 8.28 | 10.0 | 36.1 | 41.0 | 43.4 | 25.0 | 3.10 | 70.5 | 15.5 | 10.15 | 54.0/12139 |
| HX16BF27 | 25.4 | 15.88 | 19.00 | 8.28 | 10.0 | 36.1 | 41.0 | 43.1 | 25.0 | 3.10 | 70.5 | 18.5 | 10.15 | 56.0/12589 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | |||||
| P | d1 max | b1 min | d2 max | d3 max | L1 max | L2 max | h | T | t | H | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| 16AF86 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 36.5 | 76.7 | 24.0 | 3.25 | 3.25 | 70.0 | 14.6 | 55.6/12499 |
| 16BF12 | 25.4 | 15.88 | 18.00 | 8.28 | 10.0 | 37.4 | 73.2 | 21.0 | 3.10 | 4.15 | 85.0 | 18.5 | 40.0/8992 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | |||||
| P | d1 max | h1 min | d2 max | d3 max | L | L1 | h | T | H | F | C | min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| 16AF27 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 32.7 | 75.2 | 28.3 | 3.25 | 71.0 | 14.6 | 13.00 | 40.0/8992 |
| HX16AF32 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 40.9 | 81.1 | 28.3 | 3.25 | 69.5 | 29.7 | 12.00 | 55.6/12499 |
| HX16AF4 | 25.4 | 15.88 | 17.00 | 7.92 | 10.0 | 40.9 | 79.1 | 27.5 | 4.00 | 67.8 | 17.5 | 11.00 | 55.6/12499 |
| HX16AF29 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 32.7 | 76.7 | 28.3 | 3.25 | 70.6 | 14.6 | 10.00 | 55.6/12499 |
| HX16BF10 | 25.4 | 15.88 | 19.00 | 8.28 | 10.0 | 36.1 | 79.5 | 25.0 | 3.10 | 70.6 | 15.5 | 10.15 | 40.0/8992 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 | L max | L1 max | L2 max | h | t/T | H | F | C | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| HX16AF10 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 43.4 | 44.9 | 43.1 | 28.3 | 3.25 | 70.3 | 14.6 | 10.0 | 55.6/12499 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 max | L max | L1 max | L2 max | h | t/T | H | F | C | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| HX16AF27 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.9 | 41.8 | 82.1 | 28.3 | 3.25 | 70.6 | 15.6 | 10.0 | 55.6/12499 |
| HX16AF60 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.5 | 40.9 | 81.1 | 28.3 | 3.25/3.00 | 70.5 | 15.4 | 10.0 | 55.6/12499 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 max | L max | L1 max | L2 max | h | t/T | H | F | C | min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| 16AF7 | 25.4 | 15.88 | 15.75 | 7.92 | 7.92 | - | 36.5 | 67.9 | 28.3 | 3.25 | 59.1 | 13.5 | 13.0 | 40.0/8992 |
| 16AF73 | 25.4 | 15.88 | 15.75 | 7.92 | 10.00 | 32.7 | 36.5 | 73.3 | 28.3 | 3.25 | 52.7 | 16.0 | 10.0 | 55.6/12499 |
| HX16AF30 | 25.4 | 15.88 | 25.00 | 7.92 | 10.00 | 45.2 | 48.4 | 88.8 | 28.4 | 4.00 | 52.8 | 16.0 | 12.0 | 56.7/12746 |
| HX16AF38 | 25.4 | 15.88 | 15.75 | 7.92 | 7.92 | 32.7 | 36.5 | 73.3 | 28.3 | 3.25 | 52.7 | 16.0 | 10.0 | 55.6/12499 |
| HX16AF43 | 25.4 | 15.88 | 19.00 | 7.92 | 10.00 | 39.4 | 42.5 | 81.3 | 25.3 | 4.00 | 53.5 | 16.4 | 11.5 | 54.0/12139 |
| HX16AF54 | 25.4 | 15.88 | 15.75 | 7.92 | 11.30 | - | 36.5 | 79.0 | 28.3 | 3.25 | 62.3 | 19.0 | 10.0 | 55.6/12499 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 max | L max | L1 max | L2 max | h | t/T | H | F | C | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| HX16AF37 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 43.4 | 44.9 | 43.1 | 28.3 | 3.25/3.00 | 53.4 | 16.1 | 10.0 | 55.6/12499 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Assembly dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | d3 max | L max | L1 max | L2 max | h | t/T | H | F | C | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| 16AF10 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.5 | 40.9 | 80.8 | 28.3 | 3.25/3.00 | 44.3 | 14.5 | 10.0 | 55.6/12499 |
| HX16AF49 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.5 | 40.9 | 80.8 | 28.3 | 3.25/3.00 | 53.4 | 16.1 | 10.0 | 55.6/12499 |
| HX16AF51 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.5 | 40.9 | 81.1 | 28.3 | 3.25/3.00 | 44.3 | 15.2 | 10.0 | 55.6/12499 |
| HX16AF61 | 25.4 | 15.88 | 15.75 | 7.92 | 10.0 | 41.5 | 40.9 | 81.1 | 28.3 | 3.25/3.00 | 53.7 | 15.6 | 10.0 | 55.6/12499 |
| HX16AF24 | 25.4 | 15.88 | 19.00 | 7.92 | 10.0 | 44.8 | 44.2 | 84.4 | 28.3 | 3.25/3.00 | 53.4 | 16.1 | 10.0 | 55.6/12499 |
| HX16AF25 | 25.4 | 15.88 | 19.00 | 7.92 | 10.0 | 44.8 | 44.2 | 84.4 | 28.3 | 3.25/3.00 | 53.7 | 14.8 | 10.0 | 55.6/12499 |
