Product Description

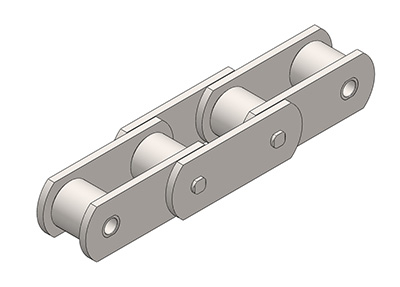

Imperial (Z series) conveyor chains meet BS standards, mainly including Z-type conveyor chain, ZE-type conveyor chain and ZC-type hollow pin shaft conveyor chain.
The imperial (Z series) conveyor chain is similar to the metric (M series) conveyor chain.which refers to the roller chain or sleeve chain with the chain pitch of 1.5o in ~ 12.o in. The rollers have various structural forms, and various accessories are arranged according to the service conditions.
Z-type is solid pin transmission chain, ZC-type is hollow pin transmission chain, ZE-type is large roller heightening chain plate transmission chain. There are two kinds of products with tensile strength indexes for users to choose from.
AA-Products are widely used in European markets, conveying materials for general conveying and mechanized conveying equipment.
Parameter

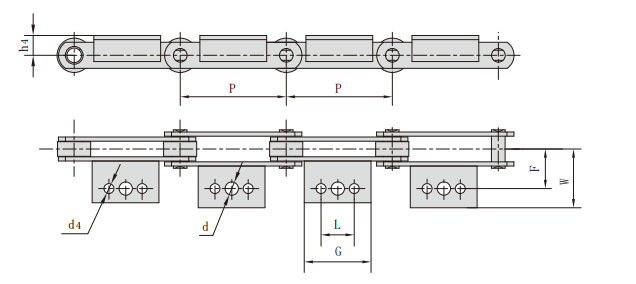

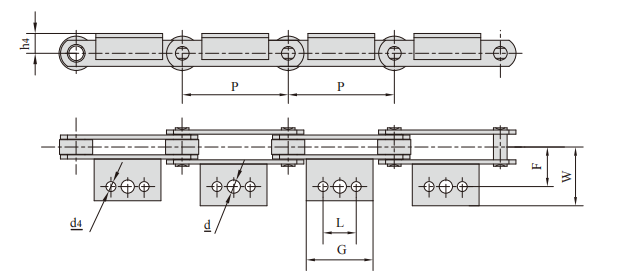

| Chain No. | P | L | G | d | d4 | F | W | h4 | ||
| mm | mm | mm | mm | mm | mm | mm | mm | |||
| Z40 | △ | 50.8 | - | 45.0 | 10.7 | 9.3 | 38.1 | 64.5 | 19.0 | |
| △☆ | 63.5 | 22.2 | 43.0 | 56.0 | ||||||
| △☆ | 76.2 | 68.0 | ||||||||
| ▲ | 88.9 | 31.8 | 50.0 | 56.0 | ||||||
| ▲ | 101.6 | 64.0 | 55.0 | |||||||
| ▲ | 127.0 | 57.2 | 84.0 | 56.0 | ||||||
| ▲ | 152.4 | |||||||||
| Z100 | △ | 76.2 | - | 30.0 | 14.0 | 10.5 | 44.5 | 65.0 | 32.0 | |
| △ | 88.9 | |||||||||
| ▲ | 101.6 | 31.8 | 64.0 | |||||||
| △☆ | 127.0 | 57.2 | 84.0 | |||||||
| ▲ | 152.4 | 114.5 | ||||||||
| △☆ | 177.8 | 80.0 | 110.0 | |||||||
| △☆ | 203.2 | |||||||||
| Z160 | △ | 101.6 | - | 35.0 | 15.5 | 12.3 | 54.0 | 77.0 | 38.0 | |
| △☆ | 127.0 | 31.7 | 56.0 | |||||||
| △☆ | 152.4 | 57.2 | 84.0 | |||||||
| △☆ | 177.8 | |||||||||
| △☆ | 203.2 | 100.0 | 130.0 | |||||||
| △☆ | 228.6 | 150.0 | ||||||||
| △☆ | 254.0 | 135.0 | 170.0 | |||||||
| Z300 | △ | 152.4 | 38.1 | 70.0 | 17.0 | 14.0 | 73.0 | 100.0 | 51.0 | |
| △ | 177.8 | |||||||||
| △☆ | 203.2 | 76.2 | 100.0 | |||||||
| △☆ | 254.0 | 90.0 | 152.4 | |||||||
| △☆ | 304.8 | 190.0 | 225.0 | |||||||
| △attachments with 1 hole ☆attachments with 2 holes ▲attachments with 3 holes | ||||||||||
| Chain No. | Pitch | Roller dimension | Bush diameter | ||||||||
| P | d1 max | d4 max | G | d5 max | |||||||
| mm | mm | mm | mm | mm | |||||||
| Z40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 40.0 | 2.5 | 17.0 |
| Z100 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 60.0 | 3.5 | 23.0 |
| Z160 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 82.0 | 3.5 | 33.0 |
| Z300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | - | - | 88.90 | 114.0 | 8.5 | 38.0 |
| Chain No. | Width between inner plates | Pin diameter | Plate depth | Pin length | Plate thickness | Tensile strength | ||
| b1 min | d2 max | h2 max | L max | Lc max | t/T max | Q min | *Q min | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | |
| Z40 | 15.0 | 14.0 | 25.0 | 37.0 | 40.5 | 4.0 | 40.0/9091 | 50.0/11362 |
| Z100 | 19.0 | 19.0 | 40.0 | 45.0 | 50.5 | 5.0/4.0 | 100.0/22725 | 130.0/29540 |
| Z160 | 26.0 | 26.9 | 50.0 | 58.0 | 63.5 | 7.0/5.0 | 156.0/35451 | 200.0/45454 |
| Z300 | 38.0 | 32.0 | 60.0 | 84.0 | 94.0 | 10.0/8.0 | 300.0/68175 | 380.0/86362 |
| *Q denotes the tensile strength after hardened | ||||||||

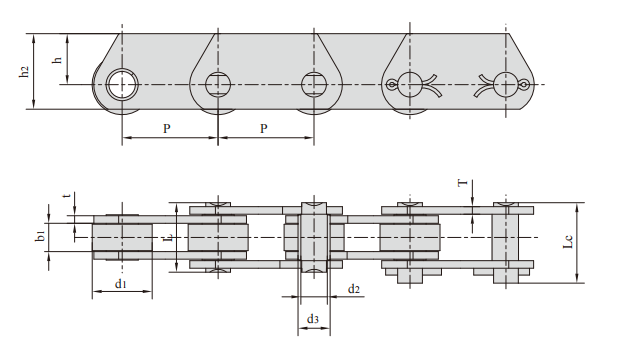

| Chain No. | Pitch | Roller dimension | Bush diameter | Plate depth | ||||||||
| P | d1 max | d4 max | G | d5 max | h2 max | |||||||
| mm | mm | mm | mm | mm | mm | |||||||
| ZC21 | 38.1 | 50.8 | 63.5 | 76.2 | - | - | - | 25.40 | - | - | 11.0 | 18.0 |
| ZC40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 40.0 | 2.5 | 17.0 | 25.0 |
| ZC60 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 60.0 | 3.5 | 23.0 | 40.0 |
| ZC150 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 82.0 | 4.0 | 33.0 | 50.0 |
| ZC300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | - | - | 88.90 | 114.0 | 8.5 | 38.0 | 60.0 |
| Chain No. | Width between inner plates | Pin diameter | Pin length | Plate thickness | Tensile strength | |||
| b1 min | d2 max | d3 min | L max | Lc max | t/T max | Q min | *Q min | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | |
| ZC21 | 12.7 | 9.0 | 6.5 | 26.0 | 27.5 | 2.5 | 21.0/4772 | 27.1/6159 |
| ZC40 | 15.0 | 14.0 | 10.2 | 36.4 | 37.7 | 4.0 | 40.0/9091 | 50.0/11362 |
| ZC60 | 19.0 | 19.0 | 13.2 | 45.0 | 46.5 | 5.0/4.0 | 60.0/13636 | 120.0/27270 |
| ZC150 | 26.0 | 26.9 | 20.2 | 58.0 | 60.5 | 7.0/5.0 | 150.0/34087 | 190.0/43177 |
| ZC300 | 38.0 | 32.0 | 22.5 | 83.0 | 85.0 | 10.0/8.0 | 300.0/68175 | 380.0/86362 |
| *Q denotes the tensile strength after hardened | ||||||||

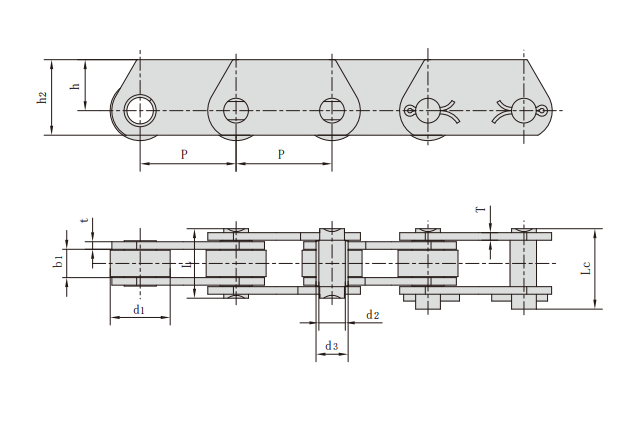

| Chain No. | Pitch | Roller diameter | Pin diameter | Bush diameter | ||||||
| P | d1 max | d2 max | d3 max | |||||||
| mm | mm | mm | mm | |||||||
| ZE40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 14.0 | 17.0 |
| ZE100 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 19.0 | 23.0 |
| ZE160 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 26.9 | 33.0 |
| ZE300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | - | - | 88.90 | 32.0 | 38.0 |
| Chain No. | Width between inner plates | Pin length | Plate depth | Plate thickness | Tensile strength | |||
| b1 min | L max | Lc max | h2 max | h max | t/T max | Q min | *Q min | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | |
| ZE40 | 15.0 | 37.0 | 40.5 | 40.0 | 27.0 | 4.0 | 40.0/9091 | 60.0/13636 |
| ZE100 | 19.0 | 45.0 | 50.5 | 50.0 | 30.0 | 5.0/4.0 | 100.0/22725 | 160.0/36360 |
| ZE160 | 26.0 | 58.0 | 63.5 | 70.0 | 45.0 | 7.0/5.0 | 160.0/36360 | 200.0/45454 |
| ZE300 | 38.0 | 84.0 | 94.0 | 90.0 | 60.0 | 10.0/8.0 | 300.0/68175 | 380.0/86362 |
| *Q denotes thetensile strength after hardened | ||||||||
