Product Description

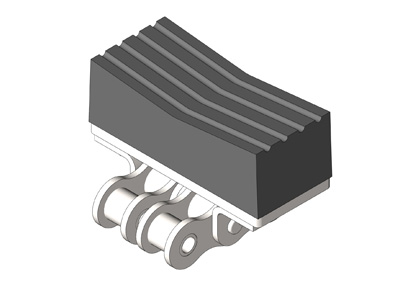

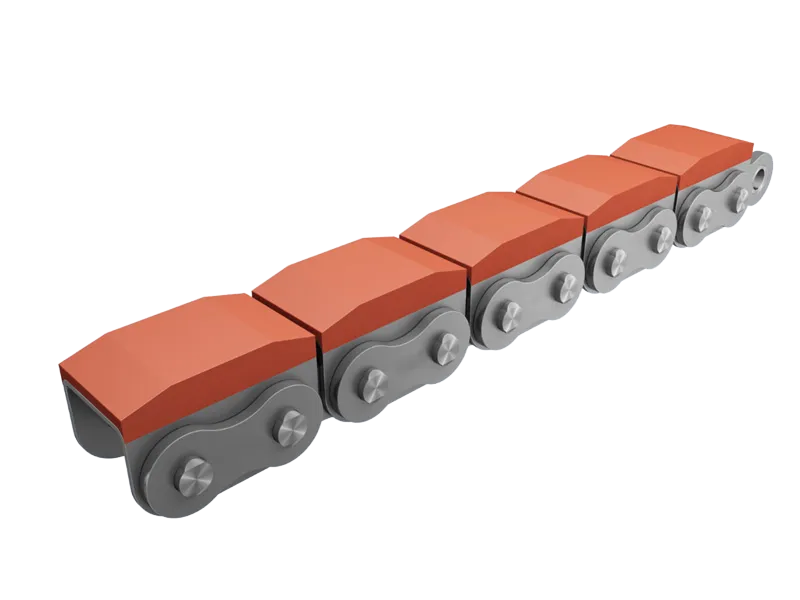

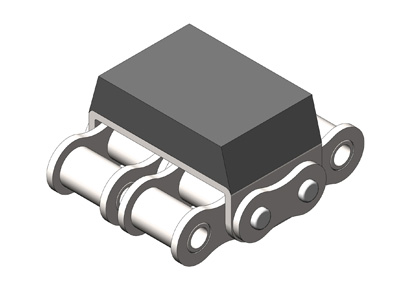

Rubber attached plate chain is a chain with rubber top plate on the basis of standard short pitch precision roller chain as base chain, and the base chain conforms to ISO,ASME/ANSI DIN, JIS and other standards.
Rubber attachment plates are made of NR, NBR, PUR and other high-quality materials Products with different shapes and different states can be designed according to the use requirements, and have the characteristics of stable transportation, safety and reliability
Products are widely used in packaging machinery, PVC pipe drawing, ceramic products, glass products and other fields, conveying goods for all kinds of machinery.conveying lines and so on.
Parameter

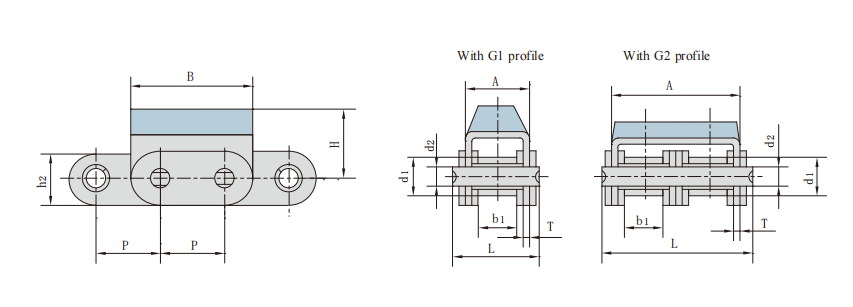

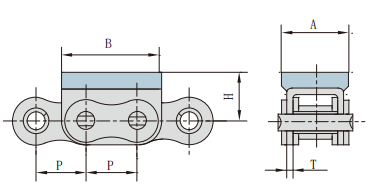

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate and attachment dimension | Tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | h2 max | A | B | H | T | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 08B-G1 | 12.700 | 8.51 | 7.75 | 4.45 | 20.0 | 11.80 | 14.60 | 24.20 | 12.3 | 1.60 | 18.0/4091 | 1.19 |
| 08B-G2 | 12.700 | 8.51 | 7.75 | 4.45 | 34.3 | 11.80 | 28.40 | 24.20 | 12.3 | 1.50 | 32.0/7273 | 2.07 |
| 10A-G1 | 15.875 | 10.16 | 9.40 | 5.08 | 24.5 | 15.09 | 17.50 | 31.00 | 17.0 | 1.60 | 21.8/4953 | 1.70 |
| 10B-G1 | 15.875 | 10.16 | 9.65 | 5.08 | 23.2 | 14.70 | 16.80 | 30.00 | 17.0 | 1.60 | 19.0/4318 | 1.62 |
| 10B-G2 | 15.875 | 10.16 | 9.65 | 5.08 | 39.7 | 14.70 | 33.30 | 30.00 | 17.0 | 1.50 | 44.5/10004 | 2.56 |
| 10B-G 2F5 | 15.875 | 10.16 | 9.65 | 5.08 | 39.7 | 14.70 | 33.30 | 30.00 | 25.3 | 1.50 | 44.5/10004 | 2.58 |
| 12B-G1 | 19.050 | 12.07 | 11.68 | 5.72 | 25.7 | 16.00 | 19.60 | 36.00 | 21.0 | 1.85 | 29.0/6591 | 2.01 |
| 12B-G2 | 19.050 | 12.07 | 11.68 | 5.72 | 45.3 | 16.00 | 39.10 | 36.00 | 16.0 | 1.85 | 57.8/13136 | 3.21 |
| 12A-G1 | 19.050 | 11.91 | 12.57 | 5.94 | 29.9 | 18.0 | 21.40 | 37.05 | 21.0 | 1.85 | 31.8/7153 | 2.55 |
| 12A-G 2 | 19.050 | 11.91 | 12.57 | 5.94 | 52.9 | 18.00 | 44.50 | 37.05 | 21.0 | 1.85 | 62.3/14005 | 4.25 |
| 12AF1-G1 | 19.050 | 11.91 | 17.00 | 5.94 | 34.0 | 18.00 | 26.00 | 36.00 | 16.0 | 1.85 | 31.8/7153 | 2.62 |
| 16A-G1 | 25.400 | 15.88 | 15.75 | 7.92 | 37.2 | 24.00 | 27.50 | 46.00 | 20.0 | 2.42 | 42.0/9545 | 3.97 |
| 16A-G2 | 25.400 | 15.88 | 15.75 | 7.92 | 68.0 | 24.00 | 57.20 | 46.00 | 20.0 | 2.42 | 84/18896 | 7.27 |
| 16B-G1F12 | 25.400 | 15.88 | 17.02 | 8.28 | 39.7 | 21.00 | 29.05 | 49.00 | 21.4 | 1.60 | 58.0/13047 | 3.95 |
| 20A-G1 | 31.750 | 19.05 | 18.90 | 9.53 | 46.8 | 30.00 | 34.00 | 57.60 | 28.0 | 3.10 | 86.7/19503 | 6.15 |
| 20B-G1 | 31.750 | 19.05 | 19.56 | 10.19 | 48.0 | 26.40 | 36.0 | 57.00 | 27.0 | 3.50 | 85.0/19318 | 6.19 |
| 24B-G1 | 38.100 | 25.40 | 25.40 | 14.63 | 61.6 | 33.20 | 47.00 | 72.60 | 34.0 | 4.50 | 160.0/36363 | 11.25 |

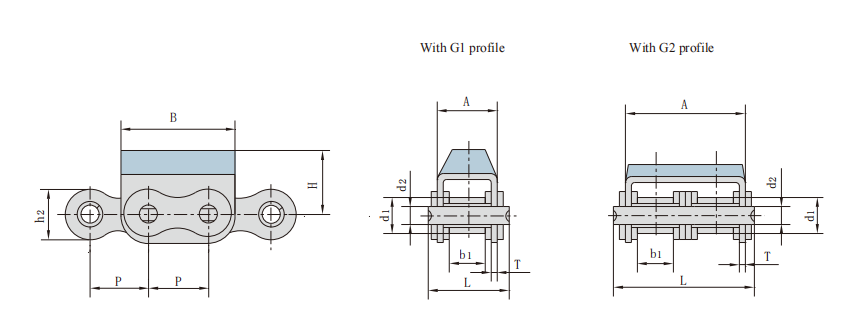

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate and attachment dimension | Tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | h2 max | A | B | H | T | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C08B-G1 | 12.700 | 8.51 | 7.75 | 4.45 | 20.0 | 11.80 | 14.60 | 24.20 | 12.3 | 1.60 | 18.0/4091 | 1.30 |
| C08B-G2 | 12.700 | 8.51 | 7.75 | 4.45 | 34.3 | 11.80 | 28.40 | 24.20 | 12.3 | 1.50 | 32.0/7273 | 2.29 |
| C10B-G1 | 15.875 | 10.16 | 9.65 | 5.08 | 23.2 | 14.70 | 16.80 | 30.00 | 17.0 | 1.60 | 19.0/4318 | 1.75 |
| C10B-G1F1 | 15.875 | 10.16 | 9.65 | 5.08 | 23.2 | 14.70 | 16.80 | 30.00 | 13.0 | 1.60 | 19.0/4318 | 1.70 |
| C50-G2F1 | 15.875 | 10.16 | 9.40 | 5.08 | 42.5 | 15.09 | 35.60 | 27.00 | 17.0 | 1.60 | 43.6/9906 | 2.14 |
| C50-G2 | 15.875 | 10.16 | 9.40 | 5.08 | 42.5 | 15.09 | 35.60 | 31.00 | 17.0 | 1.60 | 43.6/9906 | 2.14 |
| C10B-G2 | 15.875 | 10.16 | 9.65 | 5.08 | 39.7 | 14.70 | 33.30 | 30.00 | 17.0 | 1.50 | 44.5/10114 | 2.95 |
| C12B-G1 | 19.050 | 12.07 | 11.68 | 5.72 | 25.7 | 16.00 | 19.60 | 36.00 | 21.0 | 1.85 | 29.0/6591 | 2.15 |
| C12B-G2 | 19.050 | 12.07 | 11.68 | 5.72 | 45.3 | 16.00 | 39.10 | 36.00 | 16.0 | 1.85 | 57.8/13136 | 3.48 |
| C16A-G1 | 25.400 | 15.88 | 15.75 | 7.92 | 37.2 | 24.00 | 27.50 | 46.00 | 20.0 | 2.42 | 42.0/9545 | 4.34 |
| C16A-G2 | 25.400 | 15.88 | 15.75 | 7.92 | 68.0 | 24.00 | 57.20 | 46.00 | 20.0 | 2.42 | 84.0/18883 | 8.20 |
| C20A-G1 | 31.750 | 19.05 | 18.90 | 9.53 | 46.8 | 30.00 | 34.00 | 61.75 | 28.0 | 3.10 | 86.7/19490 | 9.10 |
| C20B-G1 | 31.750 | 19.05 | 19.56 | 10.19 | 48.0 | 26.40 | 36.00 | 57.00 | 27.0 | 3.50 | 85.0/19318 | 6.65 |
| C20B-G2 | 31.750 | 19.05 | 29.56 | 10.19 | 85.0 | 26.40 | 73.00 | 58.15 | 27.0 | 3.50 | 170.0/38217 | 10.40 |
| C24B-G1 | 38.100 | 25.40 | 25.40 | 14.63 | 61.6 | 33.20 | 47.00 | 72.60 | 34.0 | 4.50 | 160.0/36363 | 11.63 |

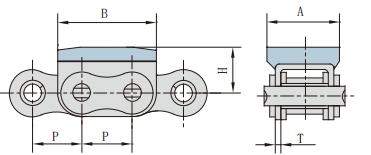

| Chain No. | P | A | B | H | T |
| mm | mm | mm | mm | mm | |
| 08B-G1F1 | 12.700 | 18.0 | 24.2 | 12.3 | 1.6 |
| 10B-G1F2 | 15.875 | 25.0 | 30.0 | 14.0 | 1.6 |
| 10B-G1F3 | 15.875 | 20.0 | 30.0 | 18.0 | 1.6 |
| 10B-G1F4 | 15.875 | 18.6 | 30.0 | 11.4 | 1.6 |
| Chain No. | P | A | B | H | T |
| mm | mm | mm | mm | mm | |
| 08B-G1F4 | 12.7 | 18.0 | 24.2 | 12.3 | 1.6 |

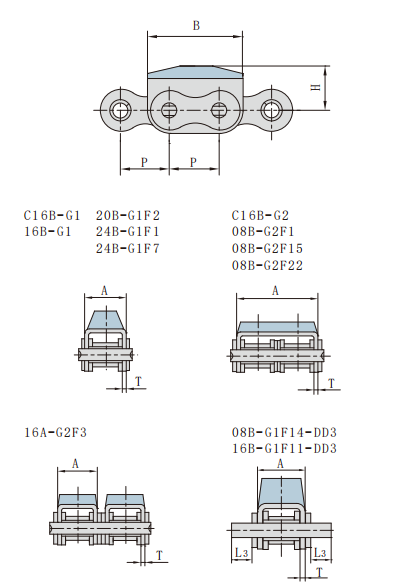

| Chain No. | P | A | B | H | T | L3 |
| mm | mm | mm | mm | mm | mm | |
| 08B-G2F1 | 12.70 | 28.40 | 24.2 | 12.0 | 1.50 | - |
| 08B-G1F14-DD3 | 12.70 | 14.60 | 24.2 | 16.0 | 1.60 | 6.3 |
| 08B-G2F15 | 12.70 | 28.40 | 24.2 | 12.8 | 1.50 | - |
| 08B-G2F22 | 12.70 | 28.40 | 24.2 | 12.0 | 1.50 | - |
| 16A-G2F3 | 25.40 | 27.50 | 49.0 | 21.4 | 2.42 | - |
| 16B-G1 | 25.40 | 29.05 | 49.0 | 21.4 | 1.60 | - |
| 16B-G1F11-DD3 | 25.40 | 29.05 | 49.0 | 21.4 | 1.60 | 4.8 |
| C16B-G1 | 25.40 | 29.05 | 49.0 | 21.4 | 1.60 | - |
| C16B-G2 | 25.40 | 60.93 | 49.0 | 21.4 | 1.60 | - |
| 20B-G1F2 | 31.75 | 36.00 | 57.0 | 35.0 | 3.50 | - |
| 24B-G1F1 | 38.10 | 47.00 | 72.6 | 34.0 | 4.50 | - |
| 24B-G1F7 | 38.10 | 47.00 | 72.6 | 34.0 | 4.50 | - |
