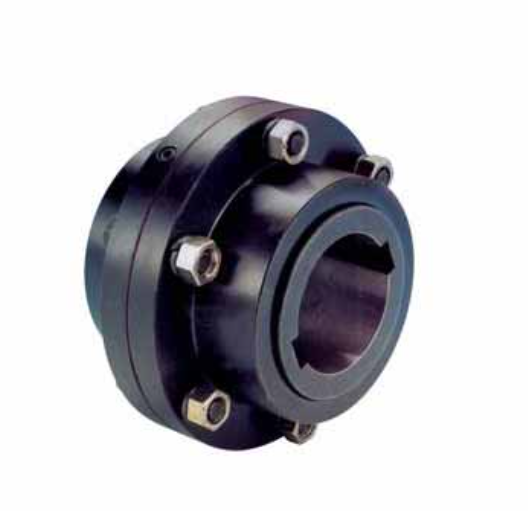

SL Type Couplings is a flexible drum gear coupling that is widely used in metallurgy, papermaking, petrochemical, electric power, cement, mining and shipbuilding industries. Key features include:
High transmission efficiency: It can still maintain high transmission efficiency under the condition of large angle offset；Compact structure: The coupling has a compact structural design, which can effectively reduce the space occupation；Lubrication sealing: The keyway needs to be sealed during assembly to prevent lubricant leakage and ensure good lubrication.
In addition, the product range of GSL Type Couplings includes inch sizes for the ANSI market and metric sizes for the DIN market. These products have their applications and needs in different markets.
In summary, GSL Type Couplings are widely used in various industrial fields due to their high efficiency, reliable performance and wide applicability.

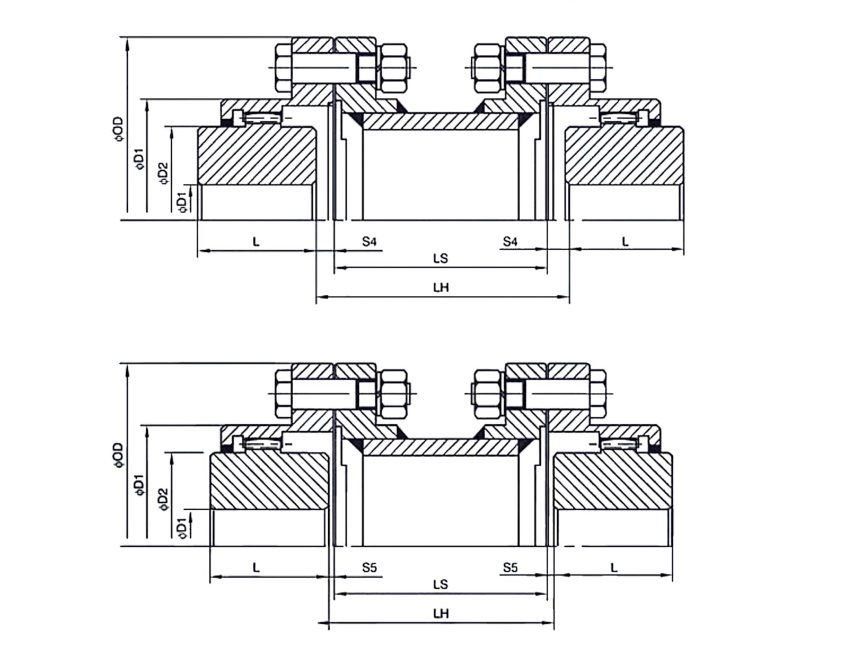

parameter
ANSI GSL-Couplings
Catalog | Fundamental Dimensions | Bore | Max Torque (In-Lb) | Max revolution (rpm) | Ls Min | wt L bs | ||||||
OD | D2 | D1 | L | S4 | S5 | Min | Max | |||||
GSL-100 | 49/16 | 21/4 | 31/8 | 111/16 | 7/32 | 1/16 | 9/16 | 11/2 | 7523 | 6000 | 215/16 | 27.8 |
GSL-150 | 6 | 31/8 | 315/16 | 115/16 | 9/32 | 1/16 | 3/4 | 21/8 | 15045 | 5500 | 35/16 | 47.4 |
GSL-200 | 7 | 37/8 | 415/16 | 27/16 | 5/8 | 1/16 | 1 | 23/4 | 28763 | 5000 | 33/4 | 53.6 |
GSL-250 | 8 3/8 | 45/8 | 57/8 | 31/32 | 9/16 | 3/32 | 13/8 | 33/8 | 53100 | 4400 | 4 | 113 |
GSL -300 | 97/16 | 51/2 | 67/8 | 319/32 | 21/32 | 3/32 | 13/4 | 4 | 88500 | 4000 | 45/16 | 167 |
GSL-350 | 11 | 61/2 | 729/32 | 41/8 | 25/32 | 1/8 | 21/8 | 45/8 | 141600 | 3500 | 415/16 | 241 |
GSL-400 | 121/2 | 73/8 | 91/4 | 43/4 | 13/16 | 1/8 | 29/16 | 51/2 | 208860 | 3000 | 415/16 | 332 |
GSL -450 | 135/8 | 83/8 | 103/8 | 55/16 | 1 | 5/32 | 31/8 | 61/4 | 287625 | 2700 | 415/16 | 400 |
GSL -500 | 155/16 | 95/16 | 119/16 | 529/32 | 11/8 | 5/32 | 31/2 | 7 | 420375 | 2500 | 511/16 | 555 |
GSL -550 | 163/4 | 103/8 | 1213/16 | 629/32 | 13/8 | 5/32 | 4 | 77/8 | 592950 | 2200 | 511/16 | 738 |
GSL-600 | 181/8 | 117/16 | 131/11 | 715/32 | 121/32 | 5/32 | 43/4 | 85/8 | 796500 | 2100 | 511/16 | 858 |
GSL-700 | 207/8 | 131/8 | 153/4 | 811/16 | 11/2 | 3/16 | 57/8 | 93/4 | 1106250 | 2000 | 511/16 | 1171 |
DIN GSL-Couplings
Catalog | Fundamental dimensions | Bore | Ls (min) | parall offset capacit | end float capacity | max torque (Nm) | max Revolution (rpm) | moment of inertia (kg.cm2) | G (kg) | ||||||
OD | D1 | D2 | L | S4 | S5 | min | max | ||||||||
GSL-78 | 117 | 78 | 58 | 43 | 5.5 | 1.5 | 14 | 40 | 75 | 3.3 | 2 | 850 | 6000 | 93 | 6.7 |
GSL-100 | 152 | 100 | 80 | 50 | 7.5 | 1.5 | 19 | 55 | 85 | 3.8 | 2 | 1700 | 5500 | 348 | 14.5 |
GSL-125 | 178 | 125 | 98 | 62 | 15.5 | 1.5 | 25 | 70 | 95 | 4.6 | 3 | 3250 | 5000 | 682 | 22.0 |
GSL-150 | 213 | 150 | 118 | 76 | 14.5 | 2.5 | 35 | 85 | 100 | 5.1 | 4 | 6000 | 4400 | 1657 | 36.8 |
GSL-175 | 240 | 175 | 140 | 90 | 16.5 | 2.5 | 45 | 100 | 110 | 5.7 | 4 | 10000 | 4000 | 2876 | 52.3 |
GSL-200 | 280 | 200 | 165 | 105 | 20 | 3 | 55 | 120 | 125 | 6.6 | 5 | 16000 | 3500 | 6767 | 88.2 |
GSL-235 | 318 | 235 | 188 | 120 | 21 | 3 | 65 | 140 | 125 | 7 | 6 | 23600 | 3000 | 11164 | 116.4 |
GSL-265 | 347 | 265 | 212 | 135 | 25 | 4 | 80 | 160 | 125 | 7.6 | 6 | 33500 | 2700 | 17106 | 152.9 |
GSL-295 | 390 | 295 | 236 | 150 | 28 | 4 | 90 | 180 | 1 45 | 8.5 | 7 | 47500 | 2500 | 32719 | 220.2 |
GSL-325 | 425 | 325 | 264 | 175 | 35 | 4 | 100 | 200 | 1 45 | 9.4 | 8 | 67000 | 2200 | 49059 | 288.4 |
GSL-355 | 460 | 355 | 290 | 190 | 42 | 4 | 120 | 220 | 1 45 | 10 | 9 | 90000 | 2100 | 73628 | 367.0 |
GSL-400 | 530 | 400 | 333 | 220 | 38 | 5 | 150 | 250 | 145 | 10.7 | 10 | 125000 | 2000 | 138408 | 518.0 |
