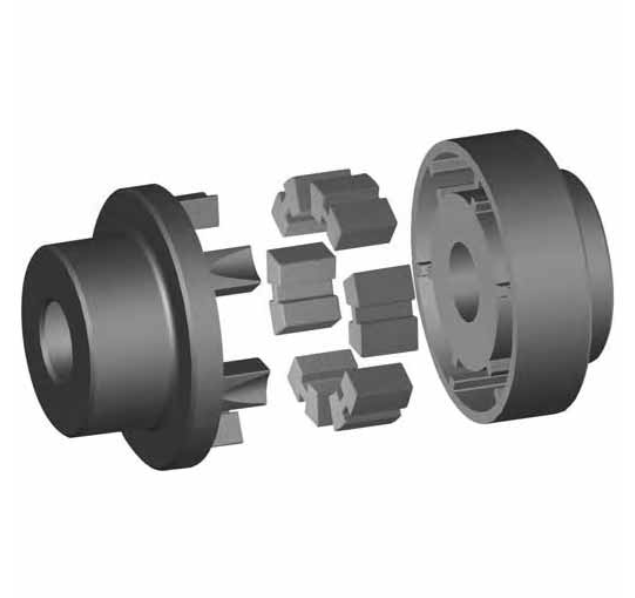

Product Description
The HTKL Type Couplings are an efficient and reliable mechanical connection solution for a wide range of industrial applications.
Scope of application: This product is suitable for liquid, gas, and other fluid transfer systems that require quick connection and disconnection.
Design Standards: DIN compliant to ensure reliability and consistency in industrial applications.
Size range: From HTKL58 to HTKL280, a variety of options are available to meet the needs of different application scenarios.

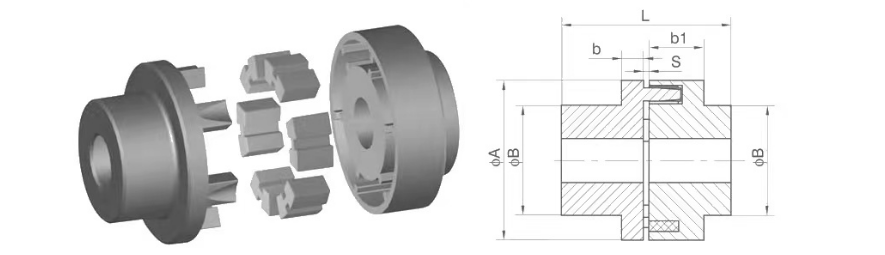

parameter
| Catalog | A | B | L | b | b1 | s | Bore | Max Torque (Nm) | Max Revolution (rpm) | Moment of inertia (kg.cm) | G (kg) | ||
| Pilot | Max | ||||||||||||
| HTKL-58 HTKL-70 HTKL-82 HTKL-95 HTKL-110 | 58 70 82 95 110 | 40 48 60 70 80 | 56 62 78 78 86 | 8 8 10 12 14 | 20 20 21 24 27 | 2 2 2 2 2 | 6 8 10 12 14 | 14 20 28 38 42 | 18 31.5 63 100 160 | 5000 5000 5000 5000 5000 | 3 6 17 41 80 | 1.00 1.65 3.22 5.15 7.39 | |
| HTKL 125 HTKL-140 HTKL-160 HTKL-180 HTKL-200 | 125 140 160 180 200 | 92 100 110 125 140 | 99 113 133 154 174 | 17 20 20 20 22 | 31 34 39 42 47 | 3 3 3 4 4 | 15 20 22 30 35 | 48 55 65 75 85 | 250 355 560 900 1400 | 4500 4000 3500 3100 2800 | 140 200 330 610 1300 | 10.85 12.97 20.15 26.12 38.90 | |
| HTKL-225 HTKL-250 HTKL-280 | 225 250 280 | 150 165 180 | 184 205 225 | 22 22 24 | 52 60 65 | 4 5 5 | 40 50 60 | 90 100 110 | 2000 2800 4000 | 2500 2200 2000 | 1900 3300 5200 | 43.13 57.55 80.33 | |
