Plate Chains

Availability:

Quantity:



Inquire Add to Basket

Product Description

Plate chain conforms to ISO 4347, ASME B29.8M, JIS B 1804 and other standards.mainly including LH (BL) series, LL series and AL series, and plate chain with other chain numbers derived from standard series, with pitch ranging from 594 mm to 76.2 mm,which can be customized according to the special requirements of host users, and can supply various types of connecting rings(end joints), special connectors and other accessories

Choose high-quality steel and excellent heat treatment process, and the products have high strength and high reliability, Environmental protection surface treatment technology can be selected according to the use environment to achieve excellent corrosion resistance;

company has advanced technology with independent intellectual property rights, and provides anti-fatigue and wear-resistant products far higher than the standard requirements according to the needs of users. Products are widely used in forklifts, textile machinery, drilling rigs, climbing platforms and other equipment to achieve vertical lifting, horizontal traction and other purposes.

Parameter

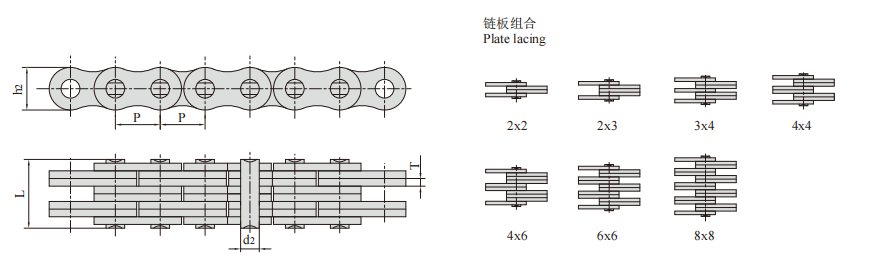

产品图纸1

ISO Chain No.	ANSI Chain No.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Tensile strength	Average tensile strength	Weight per meter
		P		h2 max	T max	d max	L max	Q min	Q0	q
		mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
LH0822	BL422	12.700	2×2	12.07	2.03	5.09	11.05	22.2/5045	27.6	0.60
LH0823	BL423		2×3				13.16	22.2/5045	27.6	0.75
LH0834	BL434		3×4				17.40	33.4/7591	41.4	1.05
LH0844	BL444		4×4				19.51	44.5/10114	56.0	1.20
LH0846	BL446		4×6				23.75	44.5/10114	56.0	1.46
LH0866	BL466		6×6				27.99	66.7/15159	81.7	1.77
LH0888	BL488		8×8				36.45	89.0/20227	109.4	2.32
LH1022	BL522	15.875 19.050	2×2	15.09	2.42	5.96	12.90	33.4/7591	43.1	0.90
LH1023	BL523		2×3				15.37	33.4/7591	43.1	1.10
LH1034	BL534		3×4				20.32	48.9/11114	65.6	1.50
LH1044	BL544		4×4				22.78	66.7/15159	84.5	1.80
LH1046	BL546		4×6				27.74	66.7/15159	84.5	2.20
LH1066	BL566		6×6				32.69	100.1/22750	125.1	2.65
LH1088	BL588		8×8				42.57	133.4/30318	169.5	3.50
LH1222	BL622		2×2	18.11	3.25	7.94	17.37	48.9/11114	68.2	1.50
LH1223	BL623		2×3				20.73	48.9/11114	68.2	1.80
LH1234	BL634		3×4				27.43	75.6/17181	102.8	2.50
LH1244	BL644		4×4				30.78	97.9/22250	136.9	2.90
LH1246	BL646		4×6				3749	97.9/22250	136.9	3.60
LH1266	BL666		6×6				44.20	146.8/33364	214.2	4.30
LH1288	BL688		8×8				57.61	195.7/44477	217.7	5.80
LH1622	BL822	25.400	2×2	24.13	4.00	9.54	21.34	84.5/19204	108.2	2.40
LH1623	BL823		2×3				25.48	84.5/19204	108.2	3.00
LH1634	BL834		3×4				33.76	129.0/29318	170.0	4.20
LH1644	BL844		4×4				37.90	169.0/38409	214.6	4.80
LH1646	BL846		4×6				46.18	169.0/38409	214.6	6.00
LH1666	BL866		6×6				54.46	253.6/57636	324.5	7.20
LH1688	BL888		8×8				71.02	338.1/76841	432.7	9.60

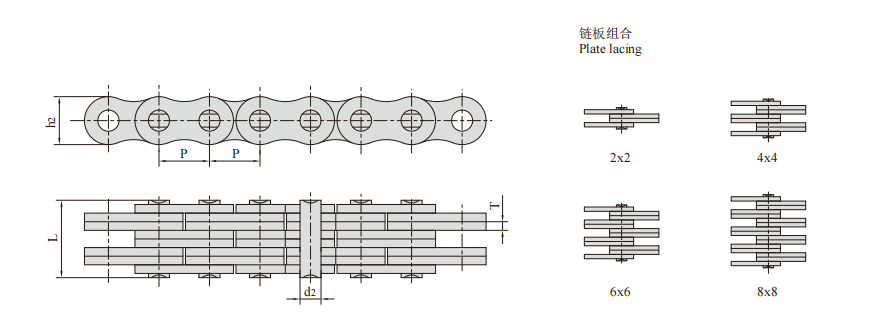

产品图纸3

DIN/ISO Chain No.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Tensile strength	Average tensile strength	Weight per meter
	P		h2 max	T max	d2 max	L max	Q min	Q0	q
	mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
LL0622	9.525	2×2	8.2	1.04	3.28	6.2	9.0/2023	9.9	0.22
LL0644		4×4				10.7	18.0/4046	19.8	0.42
LL0666		6×6				14.9	24.9/5598	27.4	0.62
LL0822	12.700	2×2	10.6	1.60	4.45	8.9	18.2/4094	20.4	0.42
LL0844		4×4				15.6	36.4/8188	40.7	0.84
LL0866		6×6				22.0	54.6/12283	60.0	1.24
LL0888		8×8				28.5	72.8/16378	80.0	1.64
LL1022	15.875	2×2	13.7	1.60	5.08	9.2	22.7/5107	25.5	0.54
LL1044		4 ×4				15.8	45.4/10213	51.0	1.06
LL1066		6×6				22.1	68.1/15321	76.3	1.57
LL1088		8×8				28.8	90.8/20427	101.9	2.10
LL1222	19.050	2×2	16.0	1.85	5.72	10.4	29.5/6637	33.2	0.73
LL1244		4 ×4				17.9	59.0/13273	66.4	1.44
LL1266		6×6				25.4	88.5/19910	99.7	2.15
LL1288		8×8				32.9	118.0/26547	132.9	2.84

产品图纸5

JIS Chain No	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Tensile strength	Average tensile strength	Weight per meter
	P		h2 max	T max	d2 max	L max	Q min	Q0	q
	mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
AL322	9.525	2×2	7.7	1.30	3.58	6.80	9.0/2045	10.2	0.23
AL344	9.525	4×4	7.7	1.30	3.58	11.60	18.0/4090	20.0	0.46
AL422	12.700	2×2	10.4	1.50	3.96	8.30	14.7/3304	16.9	0.39
AL444		4×4				14.40	29.4/6609	35.2	0.74
AL466		6×6				20.50	44.0/9891	52.7	1.13
AL522	15.875	2×2	12.8	2.03	5.08	11.05	24.5/5508	28.6	0.64
AL534		3×4				17.00	36.8/8273	46.0	1.10
AL544		4×4				19.40	48.9/10993	62.4	1.25
AL566		6×6				27.50	73.4/16500	93.8	1.79
AL622	19.050	2×2	15.6	2.42	5.94	13.00	33.4/7508	44.4	0.87
AL644		4×4				22.70	66.7/14994	78.8	1.70
AL666		6×6				32.20	100.1/22502	118.6	2.53
AL688		8×8				42.20	133.4/29988	156.6	3.37
AL822	25.400	2×2	20.8	3.25	7.92	16.20	57.9/13016	68.6	1.57
AL844		4×4				29.40	115.7/26009	135.6	3.08
AL866		6×6				44.20	173.5/39003	202.3	4.62
AL888		8×8				55.50	231.4/52019	245.0	6.12
AL1022	31.750	2×2	25.6	4.00	9.53	19.60	84.5/18996	107.1	2.51
AL1044		4×4				36.40	169.0/37991	203.6	4.95
AL1066		6×6				52.30	253.5/56987	315.3	7.39
AL1088		8×8				68.50	338.0/75982	421.2	9.83
AL1222	38.100	2×2	30.5	4.80	11.10	24.30	120.1/26998	151.1	3.65
AL1244		4×4				43.80	240.2/53997	299.7	7.05
AL1266		6×6				63.20	360.3/80995	426.3	10.50
AL1288		8×8				82.60	480.4/107994	568.4	14.03
AL1444	44.450	4×4	36.4	5.60	12.70	51.30	302.5/68002	413.6	9.80
AL1466	44.450	6×6	36.4	5.60	12.70	74.50	453.7/101992	620.4	14.66
AL1644	50.800	4×4	41.6	6.40	14.21	58.00	382.5/85986	522.8	12.90
AL1666		6×6				83.80	573.8/128990	783.6	19.27
AL1688		8×8				109.50	765.0/171972	1045.5	25.64

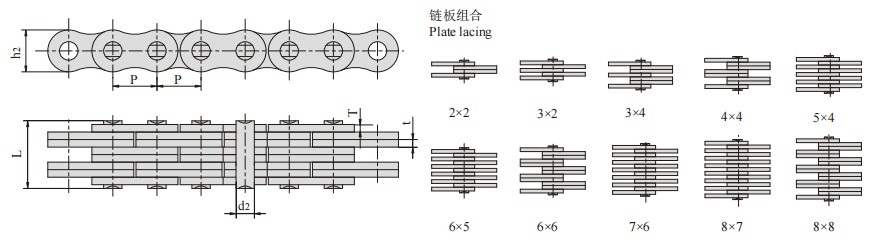

产品图纸6

Chain No.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Tensile strength	Average tensile strength	Weight per meter
	P		h2 max	t/T max	d2 max	L max	Q min	Q0	q
	mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
FL644	5.940	4×4	4.7	0.60	1.85	6.2	6.50/1477	7.8	0.13
FL666		6×6				9.3	9.75/2216	11.8	0.20
FL688		8×8				12.0	13.00/2955	15.6	0.25
FL523	8.000	3×2	6.3	1.00	2.31	6.7	7.00/1575	7.4	0.18
*FL523F1	8.000	3×2	6.3	1.30/1.00	2.31	6.3	7.00/1575	7.4	0.25
*FL523F3	8.000	3×2	7.6	1.30/1.04	3.10	8.0	7.00/1575	8.0	0.33
*FL523F4	8.000	3×2	7.6	1.30/1.04	2.31	7.6	7.00/1576	8.0	0.32
FL844	8.000	4×4	6.9	0.73	2.31	7.9	10.00/2273	12.1	0.25
*FL823F1	8.000	3×2	7.6	1.30/1.04	3.15	7.8	11.00/2472	11.8	0.32
FL922	9.525	2×2	8.7	1.04	3.28	6.2	10.00/2273	12.1	0.22
FL944		4×4				10.4	21.00/4724	24.7	0.43
FL945		4×5				11.5	21.00/4724	23.0	0.50
FL956		6×5				14.0	25.50/5732	28.0	0.60
FL966		6×6				14.9	31.00/7045	36.8	0.65
FL988		8×8				19.0	42.00/9450	46.2	0.87
FL966F3	9.525	6×6	8.7	1.15	3.28	16.2	33.10/7441	36.5	0.75
FL922F4	9.525	2×2	8.5	1.60	3.90	8.6	12.50/2810	13.8	0.37
LF10	10.000	3×3	7.5	1.20	3.20	10.6	14.00/3150	15.5	0.39
LF1234	12.000	4×3	10.0	2.03	3.96	17.6	15.45/3476	17.0	0.85
LF1246	12.000	△6×4	10.8	1.60	5.08	18.7	30.00/6748	33.0	1.05
F1266F1	12.700	△6×6	9.0	1.60	3.70	21.6	45.00/10123	50.0	0.92
F122	12.700	2×2	8.2	1.00	3.58	7.0	11.43/2598	13.6	0.19
F1223	12.700	3×2	10.2	2.03	4.45	12.8	20.00/4545	23.8	0.61
FL1244	12.700	4×4	10.2	1.70	4.45	16.7	44.00/10000	52.3	0.83
F1023	15.875	3×2	14.3	2.42	4.75	15.9	25.00/5625	27.5	1.11
FLC534	15.875	3×4	12.7	1.85	5.08	15.3	40.40/9181	44.4	0.99
FLC545		5×4				19.2	54.30/12340	59.7	1.27
FLC556		6×5				22.7	67.60/15363	74.3	1.54
FLC567		7×6				26.8	80.80/18176	89.0	1.82
Note:*means straight link plate;△ means special link plate combination

产品图纸8

ChaiNo.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Tensile strength	Average tensile strength	Weight per meter
	P		h2 max	t/T max	d2 max	L max	Q min	Q0	q
	mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
AL0522	8.000	2×2	7.10	0.80	2.31	5.00	4.40/990	4.6	0.15
AL0544		4×4				8.20	8.80/1980	9.3	0.28
AL0566		6×6				11.60	13.00/2922	13.7	0.42
AL322F1	9.525	2×2	7.00	1.30	3.58	7.50	9.30/2092	9.8	0.22
AL344F1		4×4				12.80	18.50/4162	19.4	0.42
AL366F1		6×6				18.20	27.80/6254	29.2	0.62
AL388F1		8×8				23.60	37.00/8323	38.8	0.82
AL322HF2	9.525	2×2	7.70	1.50	3.58	7.60	10.00/2248	10.5	0.24
*AL344F3	9.525	4×4	7.70	1.20	3.58	11.60	18.00/4046	18.9	0.49
AL344F4	9.525	4×4	7.90	1.57	3.58	15.00	25.00/5620	26.3	0.63
AL866F1	25.400	6×6	20.50	3.00	7.92	40.30	135.00/30370	148.5	4.40
AL822F3	25.400	2×2	20.80	3.25	7.92	15.90	57.90/13016	70.0	1.61
AL10910F1	31.750	10×9	27.00	4.00	12.00	83.00	400.00/89923	441.0	11.80
AL1066F2	31.750	6×6	25.60	4.00	9.53	52.20	265.00/59574	305.0	7.43
AL1044F1	31.750	4×4	22.80	4.15	10.19	37.90	214.00/48107	234.5	4.32
AL1266F1	38.100	6×6	30.00	4.80	13.30	64.30	420.00/94482	462.0	9.68
BL432F1	12.700	△3×2	11.60	2.03	4.45	12.60	22.00/4946	24.0	0.76
LH0844F5	12.700	4×4	12.07	1.60	5.08	16.00	27.50/6182	30.0	1.01
LH0832F6	12.700	△3×2	12.07	2.03	4.45	13.16	19.80/4451	23.0	0.77
LH081010F8	12.700	10×10	12.07	2.03	5.94	44.80	120.00/26977	130.0	6.35
LH0844F	12.700	4×4	12.07	1.60	5.08	15.70	44.48/10000	48.9	1.01
BL544F1	15.875	4×4	14.60	2.37	5.94	22.50	80.00/17985	85.0	1.76
LH1034F2	15.875	3×4	15.00	2.42	5.94	20.30	65.00/14612	70.0	1.64
BL544F8	15.875	4×4	15.00	1.70	5.80	17.00	46.00/10341	53.0	1.33
LH1223F1	19.050	2×3	15.60	2.42	5.94	20.30	29.40/6610	32.5	1.50
LH1245F1	19.050	4×5	15.60	2.42	5.94	25.20	39.20/8812	43.0	1.91
LH1223F3	19.050	2×3	18.10	3.25	7.93	19.90	68.65/15433	71.0	1.95
LH1234F3	19.050	3×4	18.10	3.25	7.93	26.60	102.97/23148	108.8	2.69
Note:*means straight link plate;△ means special link plate combination

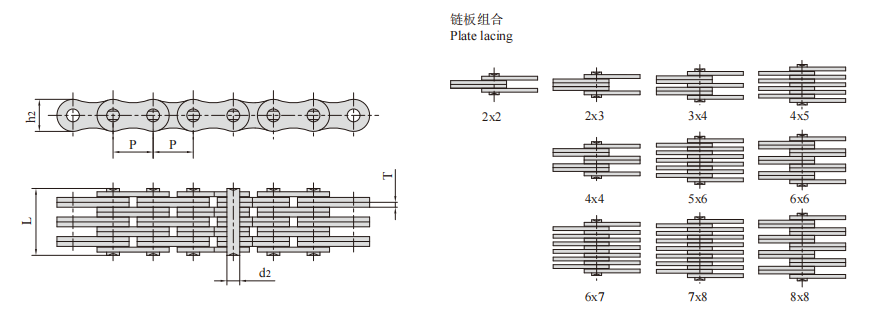

产品图纸15

Chain No.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Chain length for 100 pitches (±0.25%)	Tensile strength	Weight per meter
	P		h2 max	T max	d2 max	L max		Q min	q
	mm		mm	mm	mm	mm	mm	kN/lbf	kg/m
2522	25.400	2×2	20.2	3.06	8.28	15.5	2532	72.00/16186	1.47
2523		2×3				18.8		72.00/16363	1.83
2534		3×4				25.3		108.00/24545	2.55
2544		4×4				29.5		145.00/32597	2.92
2545		4×5				31.6		144.00/30727	3.26
2556		5×6				38.2		180.00/40908	3.96
2567		6×7				43.8		216.00/49090	4.68
2578		7×8				50.0		252.00/57272	5.39
2588		8×8				52.8		290.00/65908	5.77
3134	31.750	3×4	22.8	4.10	10.19	33.3	3168	160.00/35968	4.16
3144		4×4				37.5		214.00/48109	4.24
3166		6×6				54.3		304.00/68339	6.33
3188		8×8				71.1		428.00/96214	8.40
1244F3	12.700	4×4	11.0	1.43	4.45	13.9	1262	24.97/7861	0.78
1266F1	12.700	6×6	11.0	1.43	4.45	19.9	1262	52.46/7861	1.06

Catalogue

Plate chains catalogue.pdf
