Product Description

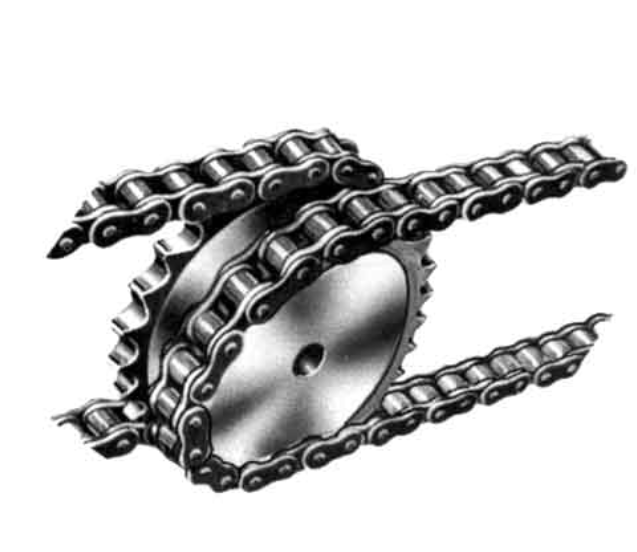

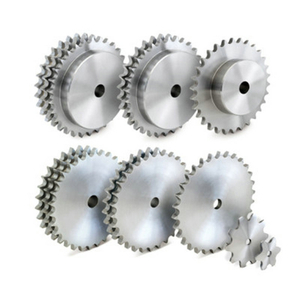

Stock Bore Double Single Sprockets refer to double single row sprockets with standard aperture. This type of sprocket is commonly used in transmission systems with two single roller chains, and its design and manufacturing comply with ANSI standards. These sprockets are available in various sizes and standards, such as # 40, # 60, with standard apertures including 0.5 inches, 0.625 inches, etc. We can also customize larger aperture sizes. Please consult our company for further information. Chain wheels are usually made of high-quality raw material C45, and the teeth are hardened to improve durability.
In summary, these sprockets are widely used in various industrial fields, especially in transmission systems that require high efficiency and reliability. Not only suitable for various industrial applications, with multiple sizes and material options, but also able to meet the needs of different customers.
Parameter
| DS40-SB For 1/2" Pitch | ||||||
| Z | O.D | P.C.D | C | D | BD | BL |
| 12 | 2.17 | 1.932 | 1.122 | 0.43 | 1.339 | 1.406 |
| 13 | 2.33 | 2.089 | 0.55 | 1.496 | ||
| 14 | 2.49 | 2.247 | 0.55 | 1.654 | ||
| 15 | 2.65 | 2.405 | 0.5 | 1.811 | ||
| 16 | 2.81 | 2.563 | 0.5 | 2 | ||
| 17 | 2.98 | 2.721 | 0.5 | 2.126 | ||
| 18 | 3.14 | 2.879 | 0.5 | 2.313 | ||
| 19 | 3.30 | 3.038 | 0.625 | 2.5 | ||
| 20 | 3.46 | 3.196 | 0.625 | 2.625 | ||
| 21 | 3.62 | 3.355 | 0.625 | 2.781 | ||
| DS50-SB For 5/8" Pitch | ||||||
| Z | O.D | P.C.D | C | D | BD | BL |
| 12 | 2.72 | 2.415 | 1.313 | 0.59 | 1.339 | 1.656 |
| 13 | 2.91 | 2.612 | 0.59 | 1.496 | ||
| 14 | 3.11 | 2.809 | 0.59 | 1.654 | ||
| 15 | 3.32 | 3.006 | 0.625 | 1.811 | ||
| 16 | 3.52 | 3.204 | 0.625 | 2 | ||
| 17 | 3.72 | 3.401 | 0.625 | 2.126 | ||
| 18 | 3.92 | 3.599 | 0.625 | 2.313 | ||
| 19 | 4.12 | 3.797 | 0.625 | 2.5 | ||
| 20 | 4.32 | 3.995 | 0.625 | 2.625 | ||
| 21 | 4.52 | 4.194 | 0.625 | 2.781 | ||
| DS60-SB For 3/4" Pitch | ||||||
| Z | O.D | P.C.D | C | D | BD | BL |
| 12 | 3.25 | 2.898 | 1.479 | 0.75 | 2.008 | 1.938 |
| 13 | 3.49 | 3.134 | 0.75 | 2.344 | ||
| 14 | 3.74 | 3.371 | 0.75 | 2.563 | ||
| 15 | 3.98 | 3.607 | 0.75 | 2.875 | ||
| 16 | 4.22 | 3.844 | 0.75 | 3.047 | ||
| 17 | 4.46 | 4.082 | 0.75 | 3.25 | ||
| 18 | 4.70 | 4.319 | 0.75 | 3.5 | ||
| 19 | 4.95 | 4.557 | 0.75 | 3.701 | ||
| 20 | 5.19 | 4.794 | 0.75 | 3.953 | ||
| 21 | 5.43 | 5.032 | 0.75 | 4.188 | ||
| DS80-SB For 1" Pitch | ||||||
| Z | O.D | P.C.D | C | D | BD | BL |
| 12 | 4.33 | 3.864 | 1.613 | 1 | 2.716 | 2.188 |
| 13 | 4.66 | 4.178 | 1 | 3.016 | ||
| 14 | 4.98 | 4.494 | 1 | 3.346 | ||
| 15 | 5.3 | 4.81 | 1 | 3.813 | ||
| 16 | 5.63 | 5.126 | 1 | 4 | ||
| 17 | 5.95 | 5.442 | 1 | 4.313 | ||
| 18 | 6.27 | 5.759 | 1 | 4.641 | ||
| 19 | 6.59 | 6.076 | 1 | 4.953 | ||
| 20 | 6.91 | 6.392 | 1 | 5.281 | ||
| 21 | 7.24 | 6.710 | 1 | 5.594 | ||
| DS100-SB For1 1/4" Pitch | ||||||
| Z | O.D | P.C.D | C | D | BD | BL |
| 12 | 5.42 | 4.830 | 1.995 | 0.87 | 3.386 | 2.688 |
| 13 | 5.82 | 5.223 | 1 | 3.780 | ||
| 14 | 6.23 | 5.618 | 11/4 | 4.188 | ||
| 15 | 6.63 | 6.012 | 11/4 | 4.594 | ||
| 16 | 7.03 | 6.407 | 11/4 | 4.5 | ||
| 17 | 7.44 | 6.803 | 11/4 | 4.906 | ||
| 18 | 7.84 | 7.199 | 11/4 | 5.281 | ||
| 19 | 8.24 | 7.594 | 11/4 | 6.203 | ||
| 20 | 8.64 | 7.990 | 11/4 | 6.609 | ||
| 21 | 9.04 | 8.387 | 11/4 | 7 | ||
