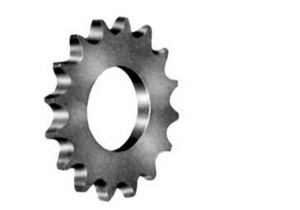

Stock Bore Sprockets

Availability:

Quantity:



Inquire Add to Basket

Product Description

Stock Bore Sprockets are a type of mechanical transmission component. It has multiple types and specifications to meet different needs. It is usually made of medium carbon steel through integral forging process. The teeth of the sprocket are processed by professional hobbing machines and CNC machine tools. After overall quenching and tempering treatment, it has good mechanical properties, high strength, and deformation resistance, and can withstand high load work.

Through high-frequency quenching, the teeth of the sprocket have high hardness and excellent wear resistance. Its processing methods include CNC machining, spline machining, as well as boring and tapping, wire cutting, etc. According to the structural design, it can be divided into single row, double row, three row and other types, as well as A type, B type, etc. According to international standards, Stock Bore Sprockets can be divided into sprockets with different standards such as American Standard (ANSI), European Standard (DIN), etc.

Stock Bore Sprockets are widely used in multiple industries, such as agricultural machinery, engineering machinery, conveyor machinery, and food processing and packaging machinery. In addition, as a manufacturer and exporter in China, Ocean Industry can also design various non-standard sprocket products based on the drawings provided by customers. If customized sprockets are required, specifications such as link spacing, roller diameter, and required number of teeth should be provided, and the sprockets can be processed into welded types according to application needs to save user costs.

Parameter

25-1

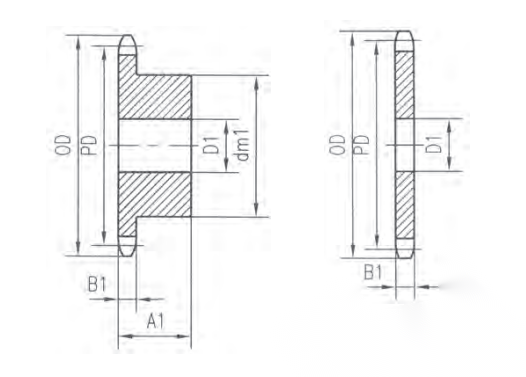

25-1图纸

Single-Type B

Single-Type A

Teeth No.

Catalog No.

Bore

dm1

WT LBS

Catalog No.

Stock Bore

WT. LBS

Stock

Max

9
10
11
12
13

S25B09
S25B10
S25B11
S25B12
S25B13

0.837
0.919
1.002
1.083
1.167

1/4
1/4
1/4
1/4
1/4

1/4
1/4
5/16
3/8
7/16

7/16
1/2
9/16
5/8
23/32

1/2
1/2
1/2
1/2
1/2

0.03
0.03
0.04
0.06
0.07

14
15
16
17
18

S25B14
S25B15
S25B16
S25B17
S25B18

1.246
1.326
1.407
1.487
1.568

1/4
1/4
1/4
1/4
1/4

9/16
9/16
9/16
5/8
3/4

13/16
57/64
31/32
11/32
11/8

1/2
1/2
1/2
1/2
1/2

0.08
0.10
0.12
0.14
0.16

25A18

1/4

0.04

19
20
21
22
23

S25B19
S25B20
S25B21
S25B22
S25B23

1.648
1.729
1.809
1.889
1.969

1/4
1/4
1/4
1/4
1/4

13/16
7/8
7/8
15/16
1

17/32
19/32
13/8
17/16
11/2

1/2
5/8
5/8
5/8
5/8

0.19
0.25
0.28
0.31
0.32

25A19
25A20
25A21
25A22
25A23

1/4
1/4
3/8
3/8
3/8

0.04
0.04
0.04
0.06
0.06

24
25
26
28
30

S25B24
S25B25
S25B26
S25B28
S25B30

2.049
2.129
2.209
2.369
2.529

3/8
3/8
3/8
3/8
3/8

1
1
1
1
1

11/2
11/2
11/2
11/2
11/2

5/8
5/8
5/8
5/8
5/8

0.33
0.34
0.35
0.36
0.38

25A24
25A25
25A26
25A28
25A30

3/8
3/8
3/8
3/8
3/8

0.08
0.08
0.09
0.10
0.12

32
35
36
40
42

S25B32
S25B35
S25B36
S25B40
S25B42

2.688
2.928
3.008
3.327
3.487

3/8
3/8
3/8
1/2
1/2

1
1
1
13/8
13/8

11/2
11/2
11/2
2
2

5/8
3/4
3/4
3/4
3/4

0.40
0.48
0.50
0.53
0.54

25A32
25A35
25A36
25A40
25A42

3/8
3/8
3/8
1/2
1/2

0.14
0.16
0.18
0.20
0.24

45
48
54
60
70
72

S25B45
S25B48
S25B54
S25B60
S25B70
S25B72

3.725
3.964
4.442
4.920
5.717
5.876

1/2
1/2
1/2
1/2
1/2
1/2

13/8
13/8
13/8
13/8
13/8
13/8

2
2
2
2
2
2

3/4
3/4
3/4
3/4
3/4
3/4

0.56
0.56
1.00
1.10
1.25
1.30

25A45
25A48
25A54
25A60
25A70
25A72

1/2
1/2
1/2
1/2
1/2
1/2

0.25
0.32
0.38
0.54
0.71
0.74

35-1

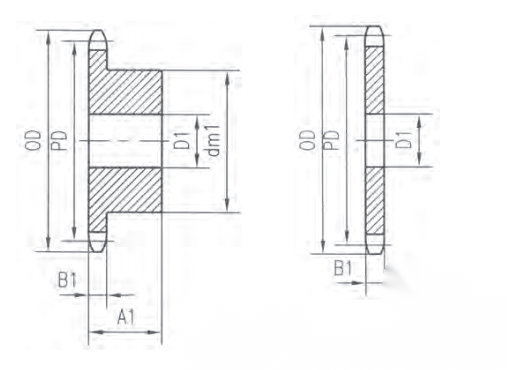

35-1图纸

Single-Type B

Single Type A

Teeth No.

Catalog No.

Bore

dm1

WT LBS

Catalog No.

Stock Bore

WT. B

Stock

Max

8
9
10
11
12

S35B8
S35B9
S35B10
S35B11
S35B12

1.130
1.260
1.380
1.500
1.630

3/8
3/8
3/8
3/8
1/2

3/8
3/8
9/16
9/16
9/16

3/4*
27/32*
31/32*
11/16*
17/32*

3/4
3/4
3/4
3/4
3/4

0.07
0.09
0.14
0.17
0.20

13
14
15
16
17

S35B13
S35B14
S35B15
S35B16
S35B17

1.750
1.870
1.990
2.110
2.230

1/2
1/2
1/2
1/2
1/2

11/16
7/8
7/8
15/16
11/16

11/4*
11/4
111/32
115/32
119/32

3/4
3/4
3/4
3/4
3/4

0.23
0.25
0.29
0.35
0.42

35A15
35A16
35A17

1/2
1/2
1/2

0.12
0.12

18
19
20
21
22

S35B18
S35B19
S35B20
S35B21
S35B22

2.350
2.470
2.590
2.710
2.830

1/2
1/2
1/2
1/2
1/2

13/16
11/4
15/16
13/8
13/8

123/32
127/32
115/16
2
2

3/4
3/4
3/4
7/8
7/8

0.48
0.54
0.59
0.80
0.80

35A18
35A19
35A20
35A21
35A22

1/2
1/2
1/2
1/2
1/2

0.14
0.16
0.20
0.20
0.22

23
24
25
26
27

S35B23
S35B24
S35B25
S35B26
S35B27

2.950
3.070
3.190
3.310
3.430

1/2
1/2
1/2
1/2
1/2

13/8
13/8
13/8
13/8
13/8

2
2
2
2
2

7/8
7/8
7/8
7/8
7/8

0.82
0.88
0.88
0.90
0.94

35A23
35A24
35A25
35A26
35A27

1/2
1/2
1/2
1/2
1/2

0.24
0.26
0.28
0.28
0.34

28
30
32
35
36

S35B28
S35B30
S35B32
S35B35
S35B36

3.550
3.790
4.030
4.390
4.510

1/2
1/2
1/2
5/8
5/8

13/8
13/8
13/8
11/2
11/2

2
2
2
21/4
21/4

7/8
7/8
7/8
7/8
7/8

0.94
1.02
1.24
1.50
1.56

35A28
35A30
35A32
35A35
35A36

1/2
1/2
5/8
5/8
5/8

0.34
0.46
0.46
0.60
0.62

40
42
45
48
54

S35B40
S35B42
S35B45
S35B48
S35B54

4.990
5.230
5.590
5.950
6.660

5/8
5/8
5/8
5/8
5/8

11/2
11/2
11/2
11/2
11/2

21/4
21/4
21/4
21/4
21/4

1
1
1
1
1

1.62
1.68
1.78
1.88
2.20

35A40
35A42
35A45
35A48
35A54

19/32
19/32
19/32
19/32
19/32

0.70
0.78
0.88
1.21
1.32

60
70
72
80
84

S35B60
S35B70
S35B72
S35B80
S35B84

7.380
8.580
8.810
9.770
10.250

3/4
3/4
3/4
3/4
3/4

11/2
11/2
11/2
11/2
11/2

21/4
21/4
21/4
21/4
21/4

1
1
1
1
1

2.48
3.12
3.42
3.82
4.24

35A60
35A70
35A72
35A80
35A84

23/32
23/32
23/32
23/32
23/32

1.66
2.30
2.56
3.16
3.26

96
112

S35B96
S35B112

11.680
13.590

3/4
3/4

11/2
11/2

21/4
21/4

1
1

5.16
6.70

35A96
35A112

23/32
23/32

4.64
5.05

40-1

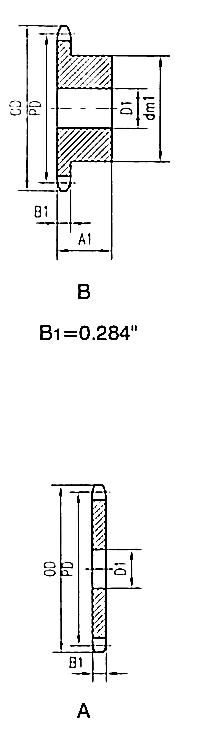

WPS扫描件_40-1图纸

Single-Type B								Single-Type A
Teeth No.	Catalog No.	OD	Bore		dm1	At	WT LBS	Catalog No.	Stock Bore	WT. LBS
			Stock	Max
8 9 10 11 12	S40B8 S40B9 S40B10 S40B11 S40B12	1.500 1.670 1.840 2.000 2.170	1/2 1/2 1/2 1/2 1/2	1/2 9/16 3/4 7/8 1	31/32* 11/16* 11/4* 13/8* 19/16*	7/8 7/8 7/8 7/8 7/8	0.18 0.20 0.27 0.35 0.45	40A12	1/2	0.18




13 14 15 16 17	S40B13 S40B14 S40B15 S40B16 S40B17	2.330 2.490 2.650 2.810 2.980	1/2 1/2 1/2 5/8 5/8	11/16 11/8 11/4 13/8 17/16	19/16 11/16 113/16 2 21/8	7/8 7/8 7/8 7/8 1	0.50 0.59 0.70 0.79 1.04	40A13 40A14 40A15 40A16 40A17	1/2 1/2 5/8 5/8 5/8	0.22 0.26 0.30 0.34 0.36




18 19 20 21 22	S40B18 S40B19 S40B20 S40B21 S40B22	3.140 3.300 3.460 3.620 3.780	5/8 5/8 5/8 5/8 5/8	11/2 13/4 17/8 17/8 17/8	25/16 21/2 25/8 23/4 27/8	1 1 1 1 1	1.22 1.43 1.56 1.73 1.96	40A18 40A19 40A20 40A21 40A22	5/8 5/8 5/8 5/8 5/8	0.44 0.46 0.56 0.58 0.66




23 24 25 26 27	S40B23 S40B24 S40B25 S40B26 S40B27	3.940 4.100 4.260 4.420 4.580	5/8 5/8 5/8 5/8 5/8	2 21/4 21/4 21/4 21/4	3 31/4 31/4 31/4 31/4	1 1 1 1 1	2.13 2.41 2.54 2.58 2.66	40A23 40A24 40A25 40A26 40A27	5/8 5/8 5/8 5/8 5/8	0.72 0.82 0.88 0.94 0.98




28 29 30 31 32	S40B28 S40B30 S40B32	4.740 4.900 5.060 5.220 5.380	5/8 5/8 5/8	21/4 21/4 21/4	31/4 31/4 31/4	1 1 1	2.73 2.98 3.16	40A28 40A29 40A30 40A31 40A32	5/8 19/32 18/32 19/32 19/32	1.10 1.22 1.26 1.40 1.48




33 34 35 36 37	S40B33 S40B34 S40B35 S40B36	5.540 5.700 5.860 6.020 6.180	5/8 5/8 5/8 5/8	21/4 21/4 21/4 21/4	31/4 31/4 31/4 31/4	1 1 1 1	3.22 3.30 3.46 3.58	40A33 40A34 40A35 40A36 40A37	19/32 19/32 19/32 19/32 19/32	1.56 1.64 1.70 1.84 1.92




38 39 40 41 42	S40B38 S40B40 S40B41 S40B42	6330 6.490 6.650 6.810 6.970	5/8 3/4 3/4 3/4	21/4 23/8 23/8 23/8	31/4 31/2 31/2 31/2	1 11/8 11/8 11/8	3.70 4.69 4.76 4.82	40A38 40A39 40A40 40A41 40A42	19/32 19/32 23/32 23/32 23/32	2.00 2.02 2.22 2.42 2.50




43 44 45 46 47	S40B45 S40B47	7.130 7.290 7.450 7.610 7.770	3/4 3/4	23/8 23/8	31/2 31/2	11/8 11/8	5.30 5.44	40A43 40A44 40A45 40A46 40A47	23/32 23/32 23/32 23/32 23/32	2.80 2.85 3.15 3.26 3.32




48 49 50 51 52	S40B48 S40B50	7.930 8.090 8.250 8.410 8.570	3/4 3/4	23/8 23/8	31/2 31/2	11/8 11/8	5.84 5.96	40A48 40A49 40A50 40A51 40A52	23/32 23/32 23/32 23/32 23/32	3.42 3.44 3.62 3.94 4.08




53 54 55 56 57	S40B54	8.730 8.890 9.040 9.200 9.360	3/4	23/8	31/2	11/8	6.42	40A53 40A54 40A55 40A56 40A57	23/32 23/32 23/32 23/32 23/32	4.24 4.44 4.54 4.84 5.00
58 59 60 70 72	S40B60 S40B70 S40B72	9.520 9.680 9.840 11.430 11.750	3/4 3/4 3/4	23/8 23/4 23/4	31/2 4 4	11/8 11/4 11/4	7.86 11.00 11.50	40A58 40A59 40S60 40A70 40A72	23/32 23/32 23/32 23/32 23/32	5.12 5.30 5.48 7.24 7.72



80 84 96 112	S40B80 S40B84 S40B96 S40B112	13.030 13.660 15.570 18.120	3/4 3/4 1 1	23/4 23/4 23/4 23/4	4 4 4 4	11/4 11/4 11/4 11/4	13.40 14.04 17.56 22.56	40A80 40A84 40A96 40A112	23/32 23/32 15/16 15/16	10.20 10.37 12.15 20.00

50-1

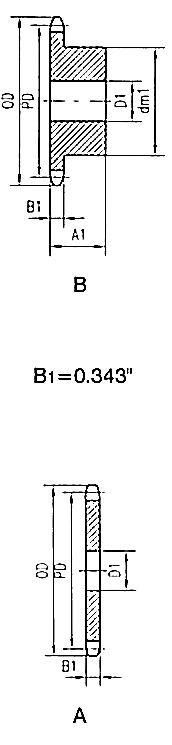

WPS扫描件_50-1图纸

Single-Type B								Single-TypeA
Teeth No.	Catalog No.	OD	Bore		dm1	A1	WT LBS.	Catalog No.	Stock Bore	WT. LBS.
			Stock	Max
8 9 10 11 12	S50B8 S50B9 S50B10 S50B11 S50B12	1.880 2.090 2.300 2.500 2.710	5/8 5/8 5/8 5/8 5/8	5/8 34 7/8 1 11/4	11/8* 13/8* 19/16* 13/4* 163/64*	1 1 1 1 1	0.25 0.36 0.48 0.64 0.83	50A12	5/8	0.34




13 14 15 16 17	S50B13 S50B14 S50B15 S50B16 S50B17	2.910 3.110 3.320 3.520 3.720	5/8 5/8 5/8 5/8 5/8	15/16 17/16 11/2 13/4 17/8	17/8 21/8 23/8 21/2 211/16	1 1 1 1 1	0.88 1.13 1.34 1.51 1.74	50A13 50A14 50A15 50A16 50A17	5/8 5/8 5/8 5/8 5/8	0.42 0.50 0.54 0.68 0.76




18 19 20 21 22	S50B18 S50B19 S50B20 S50B21 S50B22	3.920 4.120 4.320 4.520 4.720	5/8 5/8 3/4 3/4 3/4	17/8 2 2 2 2	27/8 3 3 3 3	1 1 1 1 1	2.00 2.22 2.28 2.40 2.56	50A18 50A19 50A20 50A21 50A22	5/8 5/8 3/4 3/4 3/4	0.86 0.94 1.06 1.12 1.30




23 24 25 26 27	S50B23 S50B24 S50B25 S50B26 S50B27	4.920 5.120 5.320 5.520 5.720	3/4 3/4 3/4 3/4 3/4	2 2 2 2 2	3 3 3 3 3	1 11/4 11/4 11/4 11/4	2.66 3.30 3.40 3.44 3.74	50A23 50A24 50A25 50A26 50A27	3/4 23/32 23/32 23/32 23/32	1.44 1.50 1.62 1.72 1.96




28 29 30 31 32	S50828 S50B29 S50B30 S50B31 S50B32	5.920 6.120 6.320 6.520 6.720	3/4 3/4 3/4 3/4 3/4	2 2 21/4 21/4 21/4	3 3 31/4 31/4 31/4	11/4 11/4 11/4 11/4 11/4	3.80 4.06 4.56 4.74 4.96	50A28 50A29 50A30 50A31 50A32	23/32 23/32 23/32 23/32 23/32	2.04 2.36 2.54 2.80 2.72




33 34 35 36 37	S50B33 S50B34 S50B35 S50B36 S50B37	6.920 7.120 7.320 7.520 7.720	3/4 3/4 3/4 3/4 3/4	21/4 21/4 21/4 21/4 21/4	31/4 31/4 31/4 31/4 31/4	11/4 11/4 11/4 11/4 11/4	5.20 5.34 5.44 5.64 5.90	50A33 50A34 50A35 50A36 50A37	23/32 23/32 23/32 23/32 23/32	3.14 3.20 3.34 3.82 3.98




38 39 40 41 42	S50B38 S50B39 S50B40 S50B42	7.920 8.120 8.320 8.520 8.720	3/4 3/4 3/4 3/4	21/4 21/4 21/4 21/4	31/4 31/4 31/4 31/4	11/4 11/4 11/4 11/4	6.08 6.30 6.50 6.96	50A38 50A39 50A40 50A41 50A42	23/32 23/32 23/32 23/32 23/32	4.14 4.42 4.46 4.86 4.98




43 44 45 46 47	S50B44 S50B45	8.910 9.110 9.310 9.510 9.710	3/4 3/4	21/4 21/2	31/4 33/4	11/4 11/4	7.58 8.58	50A43 50A44 50A45 50A46 50A47	23/32 23/32 23/32 15/16 15/16	5.24 5.42 5.92 6.42 6.50




48 49 50 51 52	S50B48 S50B50 S50B52	9.910 10.110 10.310 10.710	1 1 1	21/2 21/2 21/2	33/4 33/4 33/4	11/4 11/4 11/4	9.28 9.88 10.24	50A48 50A49 50A50 50A51 50A52	15/16 15/16 15/16 15/16 15/16	6.58 7.06 7.10 7.32 7.98




53 54 55 56 57	S50B54 S50B57	10.910 11.110 11.310 11.500 11.700	1 1	21/2 21/2	33/4 33/4	11/4 11/4	11.00 12.00	50A53 50A54 50A55 50A56 50A57	15/16 15/16 15/16 15/16 15/16	8.08 8.30 8.56 8.90 9.38




58 59 60 70 72	S50B60 S50B70 S50B72	11.900 12.100 12.300 14.290 14.690	1 1 1	21/2 21/2 21/2	33/4 33/4 33/4	11/4 13/4 13/4	13.00 18.16 19.48	50A58 50A59 50A60 50A70 50A72	15/16 15/16 15/16 15/16 15/16	10.30 10.50 10.80 14.00 15.24



76 80 84 95 96 112	S50B76 S50B80 S50B84 S50B95 S50B96 S50B112	15.486 16.280 17.080 19.270 19.470 22.650	1 1 1 1 1 1	21/2 23/4 23/4 23/4 23/4 23/4	33/4 41/4 41/4 41/4 41/4 41/4	13/4 13/4 13/4 13/4 13/4 13/4	21.00 24.74 25.50 32.00 32.92 42.00	50A76 50A80 50A84 50A95 50A96 50A112	15/16 15/16 15/16 15/16 15/16 15/16	20.08 21.00 22.08 27.00 27.40 37.70

60-1

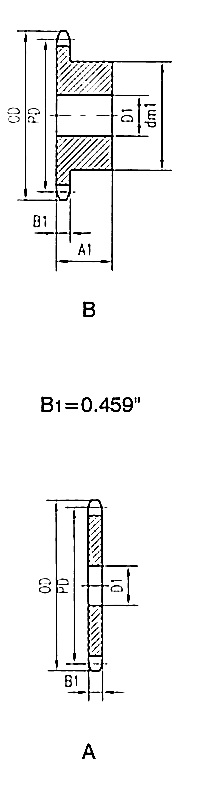

WPS扫描件_60-1图纸

Single-Type B								Single-Type A
Teeth NO.	Catalog No.	OD	Bore		dm1	A1	WT LBS.	Catalog NO.	Stock Bore	WT. LES.
			Stock	Max
8 9 10 11 12	S60B8 S60B9 S60B10 S60B11 S60B12	2.260 2.510 2.760 3.000 3.250	5/8 3/4 3/4 3/4 3/4	5/8 7/8 11/8 15/16 13/8	115/32* 19/16* 115/16* 21/16* 23/8*	11/4 11/4 11/4 11/4 11/4	0.54 0.64 0.99 1.16 1.47	60A10 60A11 60A12	3/4 3/4 3/4	0.44 0.54 0.68




13 14 15 16 17	S60B13 S60B14 S60B15 S60B16 S60B17	3.490 3.740 3.980 4.220 4.460	3/4 3/4 3/4 3/4 3/4	11/2 13/4 17/8 2 21/4	211/32 29/16 27/8 31/16 31/4	11/4 11/4 11/4 11/4 11/4	1.66 2.00 2.51 2.81 3.22	60A13 60A14 60A15 60A16 60A17	3/4 3/4 3/4 3/4 3/4	0.80 0.94 1.08 1.24 1.44




18 19 20 21 22	S60B18 S60B19 S60B20 S60B21 S60B22	4.700 4.950 5.190 5.430 5.670	3/4 3/4 3/4 3/4 3/4	23/8 23/8 23/8 23/4 23/4	31/2 31/2 37/8 4 4	11/4 11/4 11/4 11/4 11/4	3.72 3.92 4.63 5.00 5.25	60A18 60A19 60A20 60A21 60A22	3/4 3/4 3/4 3/4 3/4	1.62 1.84 2.12 2.28 2.48
23 24 25 26 27	S60B23 S60B24 S60B25 S60B26 S60B27	5.910 6.150 6.390 6.630 6.870	3/4 3/4 3/4 3/4 3/4	23/4 23/4 23/4 23/4 23/4	4 4 4 4 4	11/4 11/4 11/4 11/4 11/4	5.48 5.78 6.13 6.38 6.72	60A23 60A24 60A25 60A26 60A27	3/4 23/32 23/32 23/32 23/32	2.68 3.00 3.34 3.54 3.96




28 29 30 31 32	S60B28 S60B29 S60B30 S60B31 S60B32	7.110 7.350 7.590 7.830 8.070	3/4 3/4 3/4 3/4 3/4	23/4 23/4 23/4 23/4 23/4	4 4 4 4 4	11/4 11/4 11/4 11/4 11/4	6.88 7.28 7.58 7.72 8.26	60A28 60A29 60A30 60A31 60A32	23/32 23/32 23/32 23/32 23/32	4.14 4.40 4.78 5.24 5.52
33 34 35 36 37	S60B33 S60B34 S60B35 S60B36 S60B37	8.300 8.540 8.780 9.020 9.260	1 1 1 1 1	23/4 23/4 23/4 23/4 23/4	4 4 4 4 4	11/4 11/4 11/4 11/4 11/4	8.42 8.80 9.04 9.60 10.24	60A33 60A34 60A35 60A36 60A37	15/16 15/16 15/16 15/16 15/16	5.86 6.16 6.78 6.82 7.52
38 39 40 41 42	S60B38 S60B39 S60B40 S60B41 S60B42	9.500 9.740 9.980 10.220 10.460	1 1 1 1 1	23/4 23/4 23/4 23/4 23/4	41/4 41/4 41/4 41/4 41/4	11/4 11/4 11/4 11/4 11/4	10.84 11.36 11.50 12.14 12.74	60A38 60A39 60A40 60A41 60A42	15/16 15/16 15/16 15/16 15/16	7.84 8.28 8.56 9.10 9.84




43 44 45 46 47	S60B44 S60B45 S60B47	10.700 10.940 11.180 11.420 11.650	15/16 15/16 15/16	23/4 23/4 23/4	41/4 41/4 41/4	11/4 11/4 11/4	13.88 13.98 15.00	60A43 60A44 60A45 60A46 60A47	15/16 15/16 15/16 15/16 15/16	10.24 10.76 11.08 11.50 12.32




48 49 50 51 52	S60848 S60B50	11.890 12.130 12.370 12.610 12.850	15/16 15/16	23/4 23/4	41/4 41/4	11/4 11/4	15.82 17.66	60A48 60A49 60A50 60A51 60A52	15/16 15/16 15/16 15/16 15/16	12.42 12.92 13.98 14.58 14.78




53 54 55 56 57	S60B54 S60B56	13.090 13.330 13.570 13.810 14.040	15/16 11/4	23/4 23/4	41/4 41/4	13/4 13/4	21.60 21.88	60A53 60A54 60A55 60A56 60A57	15/16 15/16 11/4 11/4 11/4	15.84 15.92 16.96 17.60 18.62



58 59 60 64 65	S60B60 S60B64 S60B65	14.280 14.520 14.760 15.720 15.960	11/4 11/4 11/4	23/4 23/4 23/4	41/4 41/4 41/4	13/4 13/4 13/4	25.22 27.40 28.92	60A58 60A59 60A60 60A64 60A65	11/4 11/4 11/4 11/4 11/4	19.00 20.02 23.00 23.24 24.42



66 68 70 72 76	S60B68 S60B70 S60B72 S60B76	16.190 16.670 17.150 17.630 18.580	11/4 11/4 11/4 11/4	23/4 23/4 23/4 23/4	41/4 41/4 41/4 41/4	13/4 13/4 2 2	30.28 31.98 34.18 38.06	60A66 60A68 60A70 60A72 60A76	11/4 11/4 11/4 11/4 11/4	25.54 27.20 28.90 32.34 45.50




80 84 90	S60B80 S60B84 S60B90	19.540 20.490 21.930	11/4 11/4 11/4	23/4 31/4 35/16	41/4 43/4 5	2 2 21/4	41.88 46.46 63.20	60A80 60A84 60A90	11/4 11/4 11/4	46.80 48.44 52.02

80-1

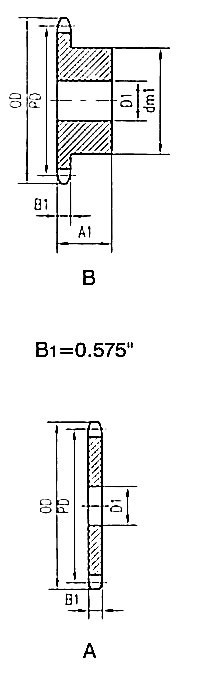

WPS扫描件_80-1图纸

Single-Type B								Single-Type A
Teeth No.	Catalog No.	OD	Bore		dm1	A1	WT LBS	Catalog No.	Stock Bore	WT. LES
Teeth No.	Catalog No.	OD	Stock	Max	dm1	A1	WT LBS	Catalog No.	Stock Bore	WT. LES
8 9 10 11 12	S80B8 SB0B9 S80B10 S80B11 S80B12	3.010 3.350 3.680 4.010 4.330	1 1 1 1 1	1 15/16 11/2 15/8 17/8	115/16* 21/4* 29/16* 213/16* 31/8*	15/8 15/8 15/8 15/8 15/8	1.4 1.6 2.2 3.2 3.4	80A9 80A10 80A11 80A12	15/16 15/16 15/16 15/16	0.8 1.0 1.3 1.5
13 14 15 16 17	S80813 S80B14 S80B15 S80B16 S80B17	4.660 4.980 5.300 5.630 5.950	1 1 1 1 1	2 21/4 21/2 23/4 23/4	3 31/4 313/16 4 4	11/2 11/2 11/2 11/2 11/2	3.5 4.1 5.3 5.9 6.6	80A13 80A14 80A15 80A16 80A17	15/16 15/16 15/16 15/16 15/16	1.8 2.2 2.5 2.9 3.3
18 19 20 21 22	S80B18 S80B19 S80B20 S80B21 SB0B22	6.270 6.590 6.910 7.240 7.560	1 1 1 1 1	23/4 23/4 23/4 23/4 23/4	41/4 41/4 41/4 41/4 41/4	11/2 11/2 11/2 13/4 13/4	7.3 7.8 8.4 9.4 10.0	80A18 80A19 80A20 80A21 80A22	15/16 15/18 15/16 15/10 15/10	3.7 4.1 4.7 4.9 5.5
23 24 25 26 27	S80B23 S80824 S80B25 S80826 S80B27	7.880 8.200 8.520 8.840 9.160	1 1 1 11/4 11/4	23/4 23/4 23/4 31/4 31/4	41/4 41/4 41/4 43/4 43/4	13/4 13/4 13/4 2 2	10.7 11.3 11.9 14.3 15.4	80A23 80A24 80A25 80A26 80A27	15/16 15/16 15/16 13/16 13/16	6.3 6.7 7.2 7.8 8.6
28 29 30 31 32	S80B28 S80B29 SB0B30 S80B31 SB0B32	9.480 9.800 10.110 10.430 10.750	11/4 13/16 13/16 13/16 13/16	31/4 31/4 31/4 31/4 31/4	43/4 43/4 43/4 43/4 43/4	2 2 2 2 2	16.0 17.1 17.4 18.7 19.5	80A28 80A29 80A30 80A31 80A32	13/16 13/16 13/16 13/16 13/16	93 9.8 10.7 11.3 12.11
33 34 35 36 37	S80B33 S80B34 S80B35 S80B36	11.070 11.390 11.710 12.030 12.350	13/16 13/16 13/16 13/16	31/4 31/4 31/4 31/4	43/4 43/4 43/4 43/4	2 2 2 2	19.6 21.3 22.1 23.1	80A33 80A34 80A35 80A36 80A37	13/16 13/16 13/16 13/16 13/16	13.6 14.3 14.8 16.1 16.8
38 39 40 41 42	S80B38 S80B39 S80B40 S80B41 S80B42	12.670 12.990 13.310 13.630 13.940	13/16 13/16 13/16 11/4 11/4	31/4 31/4 31/4 31/4 31/4	43/4 43/4 43/4 43/4 43/4	2 2 2 2 2	24.7 25.6 26.7 27.8 28.7	80A38 80A39 80A40 80A41 80A42	13/16 13/16 13/16 11/4 11/4	17.2 17.9 18.9 21.0 21.8
45 44 45 46 47	S80844 S80B45 S80B46 S80B47	14.260 14.580 14.900 15.220 15.540	11/4 11/4 11/4 11/4	31/4 31/4 31/4 31/4	43/4 43/4 43/4 43/4	2 2 2 2	29.9 31.4 33.1 34.0	80A43 80A44 80A45 80A46 80A47	11/4 11/4 11/4 11/4 11/4	23.6 24.3 25.2 26.6 27.4
48 49 50 51 52	S80848 S80B49 SB0B50	15.860 16.180 16.500 16.810 17.130	11/4 11/4 11/4	31/4 31/4 31/4	43/4 43/4 43/4	2 2 2	35.5 35.8 37.3	80A48 80A49 80A50 80A51 80A52	11/4 11/4 11/4 11/4 11/4	27.8 28.9 30.9 32.2 33.0
53 54 55 56 57	S80B54	17.450 17.770 18.090 18.410 18.730	11/4	31/2	51/4	2	44.7	80A53 80A54 80A55 80A56 80A57	11/4 11/4 11/4 11/4 11/4	34.9 36.6 37.5 39.4 40.4
58 59 60 65 70	SB0B60 S80B65 S80C70	19.040 19.360 19.680 21.270 22.870	11/4 11/4 11/2	31/2 31/2 41/4	51/4 51/4 61/4	2 2 31/2	54.5 61.8 75.7	80A58 80A59 80A60 80A65 80A70	11/4 11/4 11/4 11/4 11/2	41.3 42.9 45.3 52.2 59.8



72 76 80 84 90	S80C72 S80C76 S80C80 S80C84 S80C90	23.500 24.780 26.050 27.330 29.240	11/2 11/2 11/2 11/2 11/2	41/4 41/4 41/4 41/4 41/4	61/4 61/4 61/4 61/4 61/4	31/2 31/2 31/2 31/2 31/2	81.4 87.8 89.9 99.2 106	80A72 80A76 80A80 80AB4 80A90	11/2 11/2 11/2 11/2 11/2	65.7 70.2 79.6 86.1 101
96 112	S80C96 S80C112	31.150 36.240	11/2 11/2	41/4 41/4	61/4 61/4	31/2 31/2	117 154	80A96 80A112	11/2 11/2	120 165

100-1

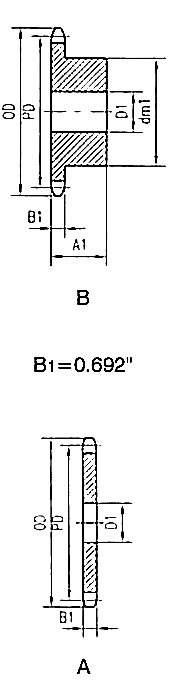

WPS扫描件_100-1图纸

Single-Type B&C								Single-Type A
Teeth No.	Cayalog No.	OD	Bore		dm1	A1	WT L BS	Catalog No.	Stock Bore	WT. LBS
			Stock	Max
7 8 9 10 11	S100B8 S100B9 S100B10 S100B11	3.350 3.770 4.180 4.600 5.010	1 1 1 1	11/4 15/8 17/8 21/4	27/16* 213/16* 31/4* 39/16*	17/8 17/8 17/8 17/8	2.3 3.2 4.1 5.3	100A7 100A8 100A9 100A10 100A11	1 1 1 1 11/4	1.2 1.4 1.6 2.0 2.5




12 13 14 15 16	S100B12 S100B13 S100B14 S100B15 S100B16	5.420 5.820 6.230 6.630 7.030	1 1 11/4 11/4 15/16	21/4 23/8 23/4 3 3	4* 37/8 43/16 41/2 41/2	17/8 15/8 15/8 13/4 13/4	6.4 6.6 7.4 9.2 9.9	100A12 100A13 100A14 100A15 100A16	11/4 11/4 11/4 11/4 11/4	3.0 3.5 4.1 4.7 5.4




17 18 19 20 21	S100B17 S100B18 S100B19 S100B20 S100B21	7.440 7.840 8.240 8.640 9.040	15/16 15/16 15/16 15/16 15/16	3 3 3 3 3	41/2 41/2 41/2 41/2 41/2	13/4 13/4 2 2 2	10.8 11.5 13.1 14.2 15.3	100A17 100A18 100A19 100A20 100A21	11/4 11/4 11/4 11/4 11/4	6.1 7.0 7.8 8.8 9.8




22 23 24 25 26	S100B22 S100B23 S100B24 S100B25 S100B26	9.440 9.840 10.250 10.650 11.050	15/16 11/4 11/4 11/4 11/4	3 3 3 3 35/16	41/2 41/2 41/2 41/2 5	2 2 2 2 2	16.1 17.2 19.2 19.5 21.7	100A22 100A23 100A24 100A25 100A26	11/4 11/4 11/4 11/4 11/4	10.5 11.8 12.8 13.9 15.0




27 28 29 30 31	S100B27 S100B28 S100B29 S100B30	11.440 11.840 12.240 12.640 13.040	11/4 11/4 11/4 11/4	35/16 35/16 35/16 35/16	5 5 5 5	2 2 2 2	23.0 24.4 25.0 26.9	100A27 100A28 100A29 100A30 100A31	11/4 11/4 11/4 11/4 11/4	16.0 17.4 19.6 20.1 21.5




32 33 34 35 36	S100B32 S100B35 S100B36	13.440 13.840 14.240 14.640 15.040	11/4 11/4 11/4	35/16 35/16 35/16	5 5 5	2 21/2 21/2	29.8 36.9 38.6	100S32 100A33 100A34 100A35 100A36	11/4 11/4 11/4 11/4 11/4	22.6 24.1 26.0 27.2 30.0




37 38 39 40 41	S100B38 S100B39 S100B40	15.440 15.840 16.230 16.630 17.030	11/4 11/4 11/4	35/16 35/16 35/16	5 5 5	2 21/2 21/2	41.5 43.6 46.9	100A37 100A38 100A39 100A40 100A41	11/4 11/4 11/4 11/4 11/4	31.0 33.0 35.0 36.0 39.0




42 43 44 45 46	S100B42 S100B45	17.430 17.830 18.230 18.630 19.020	11/4 11/2	35/16 35/16	5 5	21/2 21/2	50.4 54.0	100A42 100A43 100A44 100A45 100A46	11/4 11/2 11/2 11/2 11/2	40.0 43.0 45.0 47.0 48.0




47 48 49 50 51	S100B48	19.420 19.820 20.220 20.620 21.020	11/2	4	6	21/2	66.0	100A47 100A48 100A49 100A50 100A51	11/2 11/2 11/2 11/2 11/2	52.0 54.0 56.0 57.0 63.0
52 53 54 55 56	S100C54	21.420 21.810 22.210 22.610 23.010	11/2	4	6	31/4	78.0	100A52 100A53 100A54 100A55 100A56	11/2 11/2 11/2 11/2 11/2	64.0 66.2 68.0 70.0 72.0
57 58 59 60 70	S100C60 S100C70	23.410 23.810 24.200 24.600 28.580	11/2 11/2	4 51/4	6 7	31/4 33/4	89 125	100A57 100A58 100A59 100A60 100A70	11/2 11/2 11/2 11/2 11/2	75.8 76.0 77.0 80.0 113




72 76 80 84 90	S100C72 S100C76 S100C80 S100C84 S100C90	29.380 30.973 32.570 34.160 36.550	11/2 11/2 11/2 11/2 11/2	51/4 51/4 51/4 51/4 51/4	7 7 7 7 7	33/4 33/4 33/4 33/4 33/4	134 143 151 170 184	100A72 100A76 100A80 100A84 100A90	11/2 11/2 11/2 11/2 11/2	119 133 146 162 193




96	S100C96	38.930	11/2	51/4	7	41/2	203	100A96	11/2	215
