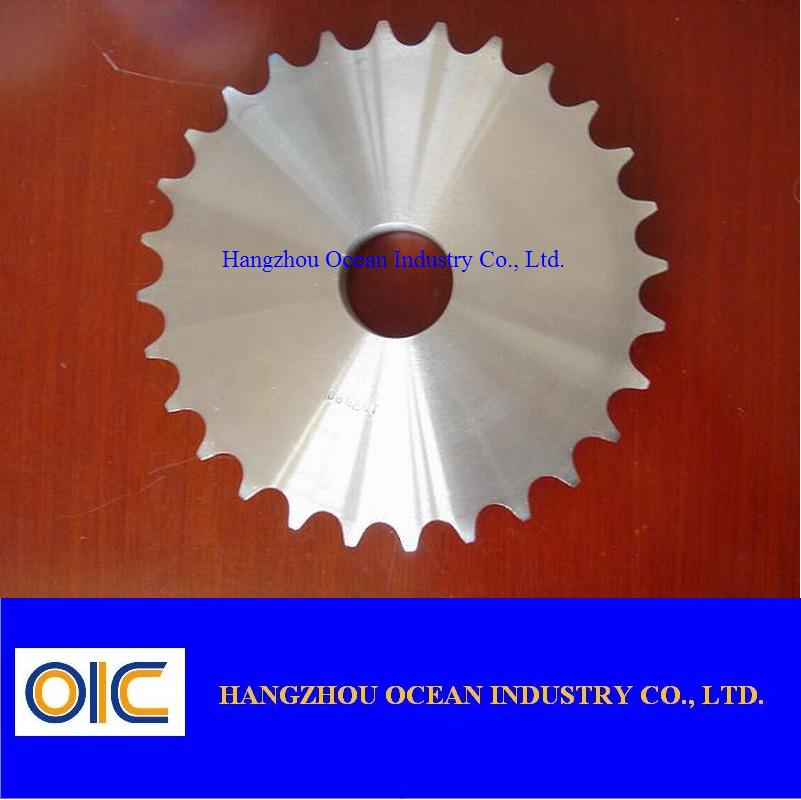

K Standard Sprockets A Type K80A

Quantity:



Inquire Add to Basket

Product Description

Technical Data Sheet

"WE SOLVE YOUR PROBLEMS
AND SELL SOLUTIONS"
* BIG INVENTORY. * REASONABLE PRICES. * DELIVERY ON TIME.

* AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	25.4	mm (1 inch)
Inner Width	(W)	15.88	mm
Bush Dia.	(Dr)	15.88	mm
Tooth Width	(T)	14.6	mm

(Dimension : mm)


Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d		Weight (kg)	Material	Teeth
Type	Teeth	Outside Dia. Do	Pitch Dia. Dp	Stock Bore	Min.	Weight (kg)	Material	Teeth
K80A	10	93	82.19	16	18	0.60	Mild Steel	10
	11	102	90.16	16	18	0.73		11
	12	110	98.14	16	18	0.83		12
	13	118	106.14	16	18	1.00		13
	14	127	114.15	16	18	1.16		14
	15	135	122.17	20	22	1.30		15
	16	143	130.20	20	22	1.50		16
	17	151	138.23	20	22	1.70		17
	18	159	146.27	20	22	1.90		18
	19	167	154.32	20	22	2.10		19
	20	176	162.37	20	22	2.35		20
	21	184	170.42	20	22	2.57		21
	22	192	178.48	26	28	2.82		22
	23	200	186.54	26	28	3.10		23
	24	208	194.60	26	28	3.35		24
	25	216	202.66	26	28	3.65		25
	26	224	210.72	26	28	3.95		26
	27	233	218.79	26	28	4.25		27
	28	241	226.86	26	28	4.60		28
	29	249	234.93	26	28	4.93		29
	30	257	243.00	26	28	5.30		30
	31	265	251.07	26	28	5.63		31
	32	273	259.14	26	28	6.00		32
	33	281	267.21	26	28	6.40		33
	34	289	275.29	26	28	6.80		34
	35	297	283.36	26	28	7.20		35
	36	306	291.43	26	28	7.60		36
	37	314	299.51	26	28	8.00		37
	38	322	307.58	26	28	8.50		38
	39	330	315.66	26	28	8.90		39
	40	338	323.74	26	28	9.40		40
	41	346	331.81	26	28	9.90		41
	42	354	339.89	26	28	10.30		42
	43	362	347.97	26	28	10.80		43
	44	370	356.04	26	28	11.40		44
	45	378	364.12	26	28	11.90		45
	46	387	372.20	26	28	12.40		46
	47	395	380.28	26	28	12.95		47
	48	403	388.36	26	28	13.50		48
	49	411	396.44	26	28	14.08		49
	50	419	404.52	26	28	14.70		50
	52	435	420.68	26	28	15.86		52
	53	443	428.76	26	28	16.48		53
	54	451	436.84	26	28	17.10		54
	55	459	444.92	26	28	17.75		55
	56	468	453.00	26	28	18.40		56
	57	476	461.08	26	28	19.07		57
	58	484	469.16	26	28	19.75		58
	60	500	485.33	26	28	21.10		60
	64	532	517.65	26	28	24.05		64
	65	540	525.73	26	28	24.80		65
	66	548	533.82	26	28	25.58		66
	70	581	566.15	26	28	28.80		70
	75	621	606.56	26	28	33.10		75
	80	662	646.97	26	28	37.60		80
	90	743	727.80	26	28	47.60		90

China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
