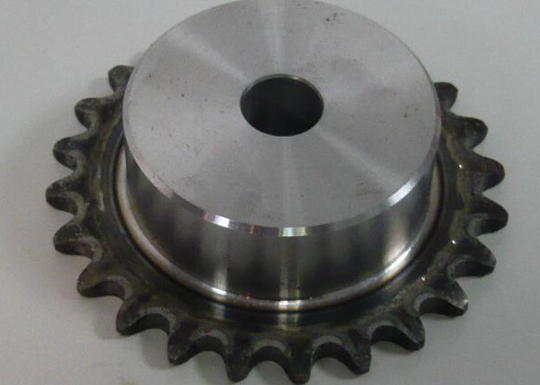

| CHAIN TECHNICAL DATA | | Chain Pitch | 13/4 | | Inner Width | 1.000 | | Roller Dia. | 1 | | Tooth Width (T) | 0.924 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 11 | 7.010 | 1 1/2 | 2 3/4 | 4 1/4 | 2 1/4 | 11.3 | | 12 | 7.580 | 1 1/2 | 3 | 4 1/2 | 2 1/4 | 13.2 | | 13 | 8.150 | 1 1/2 | 3 3/4 | 5 1/2 | 2 3/8 | 18.9 | | 14 | 8.720 | 1 1/2 | 3 3/4 | 5 1/2 | 2 3/8 | 20.4 | | 15 | 9.280 | 1 1/2 | 4 1/4 | 6 1/4 | 2 3/8 | 25.1 | | 16 | 9.850 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 27.9 | | 17 | 10.410 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 29.8 | | 18 | 10.980 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 32.0 | | 19 | 11.540 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 34.1 | | 20 | 12.100 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 36.0 | | 21 | 12.660 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 38.7 | | 22 | 13.220 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 40.6 | | 23 | 13.780 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 42.1 | | 24 | 14.340 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 46.2 | | 25 | 14.900 | 1 1/2 | 4 1/4 | 6 1/4 | 2 1/2 | 47.8 | | 26 | 15.460 | 1 1/2 | 4 1/4 | 6 1/4 | 3 | 57.2 | | 27 | 16.020 | 1 1/2 | 4 1/4 | 6 1/4 | 3 | 58.5 | | 28 | 16.580 | 1 1/2 | 4 1/4 | 6 1/4 | 3 | 62.2 | | 30 | 17.700 | 1 1/2 | 4 1/4 | 6 1/4 | 3 | 69.8 | | 32 | 18.820 | 1 1/2 | 4 1/4 | 6 1/4 | 3 | 76.3
| |
China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
