| CHAIN TECHNICAL DATA | | Chain Pitch | 21/4 | | Inner Width | 1.406 | | Roller Dia. | 1.405 | | Tooth Width (T) | 1.301 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 11 | 9.010 | 1 1/2 | 3 5/8 | 5 1/2 | 3 | 29 | | 12 | 9.750 | 1 1/2 | 4 | 6 | 3 | 32 | | 13 | 10.480 | 1 1/2 | 4 5/8 | 6 3/4 | 3 1/8 | 40 | | 14 | 11.210 | 1 1/2 | 5 1/4 | 7 | 3 1/8 | 44 | | 15 | 11.930 | 1 1/2 | 5 1/4 | 7 | 3 1/8 | 48 | | 16 | 12.660 | 1 1/2 | 5 1/4 | 7 | 3 1/8 | 52 | | 17 | 13.390 | 1 1/2 | 5 1/4 | 7 | 3 1/8 | 58 | | 18 | 14.110 | 1 1/2 | 5 1/4 | 7 | 3 1/8 | 63 | | 19 | 14.830 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 74 | | 20 | 15.560 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 81 | | 21 | 16.280 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 83 | | 22 | 17.000 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 92 | | 23 | 17.720 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 99 | | 24 | 18.440 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 105 | | 25 | 19.160 | 1 1/2 | 5 3/8 | 7 1/2 | 3 3/8 | 113 | | 28 | 21.320 | 1 1/2 | 5 1/2 | 8 | 3 1/2 | 135 | |

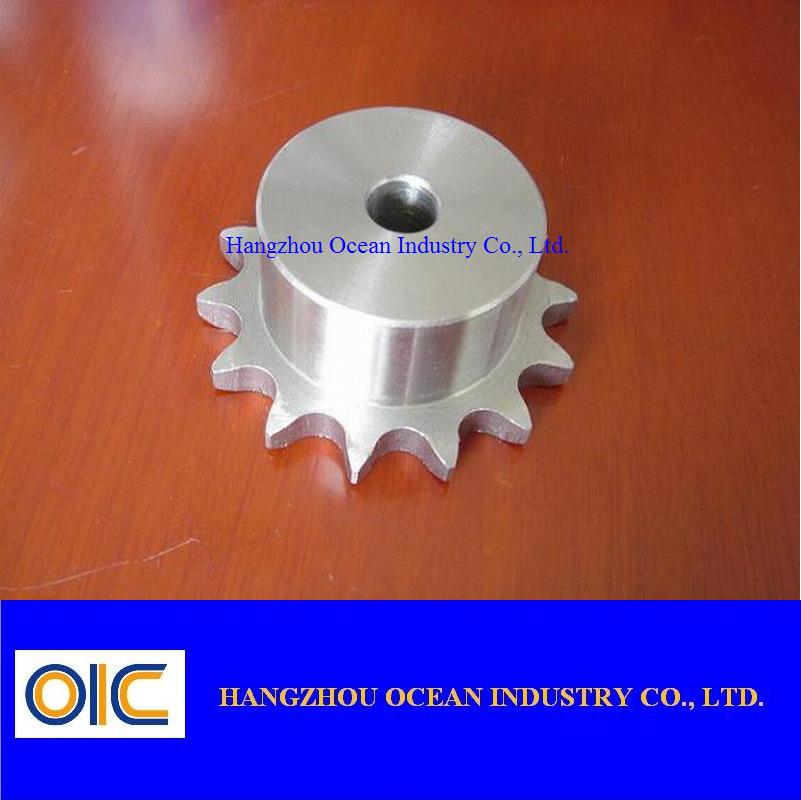

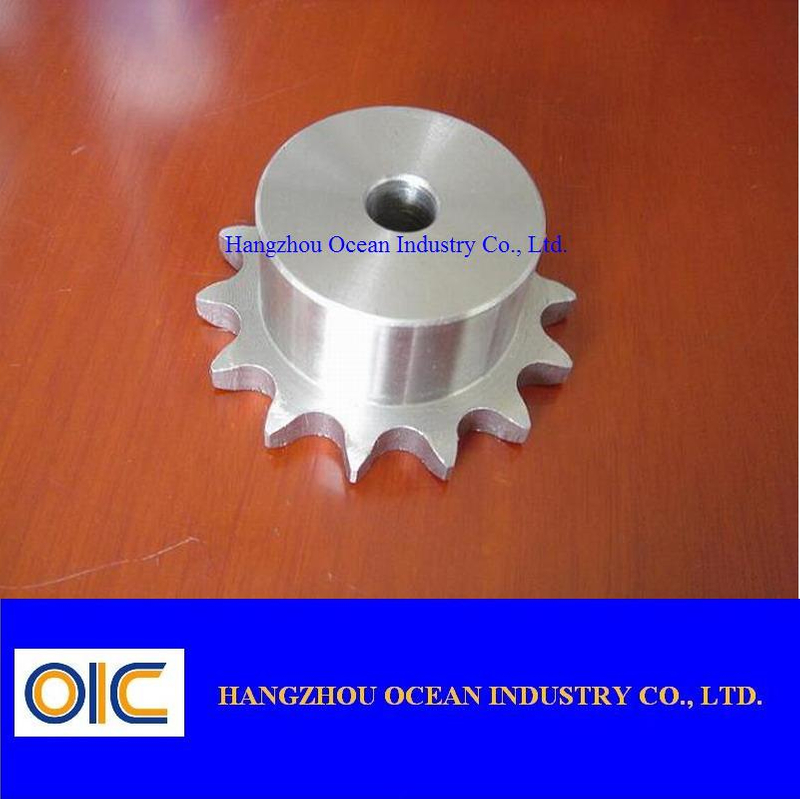

China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
