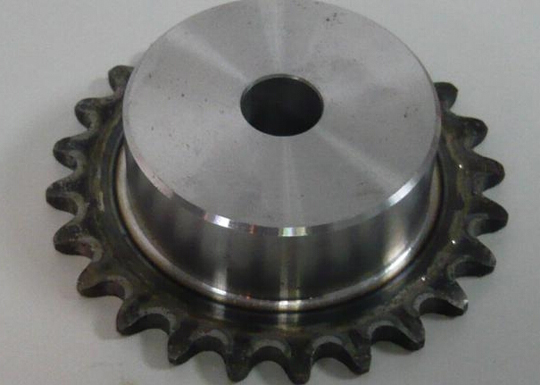

NK Standard Sprockets B Type NK35B

Availability:

Quantity:



Inquire Add to Basket

Product Description

Sprockets.pdf

Technical Data Sheet

CHAIN TECHNICAL DATA Chain Pitch 3/8 Inner Width 0.188 Bush Dia. 0.200 Tooth Width (T) 0.168

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

(Dimension : inch)


No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 8 1.130 3/8 3/8 3/4* 3/4 .07 9 1.260 3/8 3/8 27/32* 3/4 .09 10 1.380 3/8 9/16 31/32* 3/4 .14 11 1.500 3/8 9/16 1 1/16* 3/4 .17 12 1.630 1/2 9/16 1 7/32* 3/4 .20 13 1.750 1/2 11/16 1 1/4* 3/4 .23 14 1.870 1/2 7/8 1 1/4 3/4 .25 15 1.990 1/2 7/8 1 11/32 3/4 .29 16 2.110 1/2 15/16 1 15/32 3/4 .35 17 2.230 1/2 1 1/16 1 19/32 3/4 .42 18 2.350 1/2 1 3/16 1 23/32 3/4 .48 19 2.470 1/2 1 1/4 1 27/32 3/4 .54 20 2.590 1/2 1 5/16 1 15/16 3/4 .59 21 2.710 1/2 1 3/8 2 7/8 .80 22 2.830 1/2 1 3/8 2 7/8 .80 23 2.950 1/2 1 3/8 2 7/8 .82 24 3.070 1/2 1 3/8 2 7/8 .88 25 3.190 1/2 1 3/8 2 7/8 .88 26 3.310 1/2 1 3/8 2 7/8 .90 27 3.430 1/2 1 3/8 2 7/8 .94 28 3.550 1/2 1 3/8 2 7/8 .94 30 3.790 1/2 1 3/8 2 7/8 1.02 32 4.030 1/2 1 3/8 2 7/8 1.24 35 4.390 5/8 1 1/2 2 1/4 7/8 1.50 36 4.510 5/8 1 1/2 2 1/4 7/8 1.56 40 4.990 5/8 1 1/2 2 1/4 1 1.62 42 5.230 5/8 1 1/2 2 1/4 1 1.68 45 5.590 5/8 1 1/2 2 1/4 1 1.78 48 5.950 5/8 1 1/2 2 1/4 1 1.88 54 6.660 5/8 1 1/2 2 1/4 1 2.20 60 7.380 3/4 1 1/2 2 1/4 1 2.48 70 8.580 3/4 1 1/2 2 1/4 1 3.12 72 8.810 3/4 1 1/2 2 1/4 1 3.42 80 9.770 3/4 1 1/2 2 1/4 1 3.82 84 10.250 3/4 1 1/2 2 1/4 1 4.24 96 11.680 3/4 1 1/2 2 1/4 1 5.16 112 13.590 3/4 1 1/2 2 1/4 1 6.70

China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
