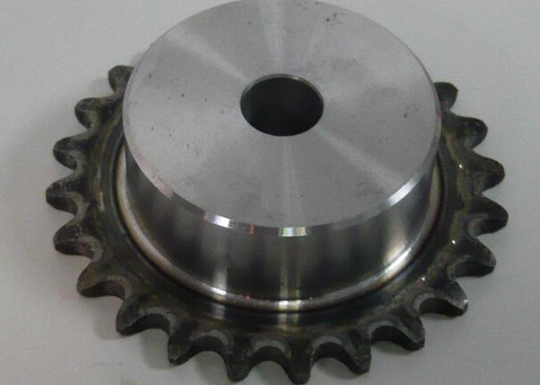

| CHAIN TECHNICAL DATA | | Chain Pitch | 1/2 | | Inner Width | 0.313 | | Roller Dia. | 0.312 | | Tooth Width (T) | 0.284 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 8 | 1.500 | 1/2 | 1/2 | 31/32* | 7/8 | .18 | | 9 | 1.670 | 1/2 | 9/16 | 1 1/16* | 7/8 | .20 | | 10 | 1.840 | 1/2 | 3/4 | 1 1/4* | 7/8 | .27 | | 11 | 2.000 | 1/2 | 7/8 | 1 3/8* | 7/8 | .35 | | 12 | 2.170 | 1/2 | 1 | 1 9/16* | 7/8 | .45 | | 13 | 2.330 | 1/2 | 1 1/16 | 1 9/16 | 7/8 | .50 | | 14 | 2.490 | 1/2 | 1 1/8 | 1 11/16 | 7/8 | .59 | | 15 | 2.650 | 1/2 | 1 1/4 | 1 13/16 | 7/8 | .70 | | 16 | 2.810 | 5/8 | 1 3/8 | 2 | 7/8 | .79 | | 17 | 2.980 | 5/8 | 1 7/16 | 2 1/8 | 1 | 1.04 | | 18 | 3.140 | 5/8 | 11/2 | 2 5/16 | 1 | 1.22 | | 19 | 3.300 | 5/8 | 1 3/4 | 2 1/2 | 1 | 1.43 | | 20 | 3.460 | 5/8 | 1 7/8 | 2 5/8 | 1 | 1.56 | | 21 | 3.620 | 5/8 | 1 7/8 | 2 3/4 | 1 | 1.73 | | 22 | 3.780 | 5/8 | 1 7/8 | 2 7/8 | 1 | 1.96 | | 23 | 3.940 | 5/8 | 2 | 3 | 1 | 2.13 | | 24 | 4.100 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.41 | | 25 | 4.260 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.54 | | 26 | 4.420 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.58 | | 27 | 4.580 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.66 | | 28 | 4.740 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.73 | | 29 | 4.900 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.80 | | 30 | 5.060 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.98 | | 31 | 5.220 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.10 | | 32 | 5.380 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.16 | | 33 | 5.540 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.22 | | 34 | 5.700 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.30 | | 35 | 5.860 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.46 | | 36 | 6.020 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.58 | | 37 | 6.180 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.62 | | 38 | 6.330 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.70 | | 39 | 6.490 | 5/8 | 2 1/4 | 3 1/4 | 1 | 3.76 | | 40 | 6.650 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 4.69 | | 41 | 6.810 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 4.76 | | 42 | 6.970 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 4.82 | | 43 | 7.130 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.12 | | 44 | 7.290 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.15 | | 45 | 7.450 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.30 | | 46 | 7.610 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.57 | | 47 | 7.770 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.44 | | 48 | 7.930 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.84 | | 49 | 8.090 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.90 | | 50 | 8.250 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 5.96 | | 51 | 8.410 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.08 | | 52 | 8.570 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.28 | | 53 | 8.730 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.33 | | 54 | 8.890 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.42 | | 55 | 9.040 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.46 | | 56 | 9.200 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 6.89 | | 57 | 9.360 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 7.02 | | 58 | 9.520 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 7.36 | | 59 | 9.680 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 7.45 | | 60 | 9.840 | 3/4 | 2 3/8 | 3 1/2 | 1 1/8 | 7.86 | | 70 | 11.430 | 3/4 | 2 3/4 | 4 | 1 1/4 | 11.00 | | 72 | 11.750 | 3/4 | 2 3/4 | 4 | 1 1/4 | 11.50 | | 80 | 13.030 | 3/4 | 2 3/4 | 4 | 1 1/4 | 13.40 | | 84 | 13.660 | 3/4 | 2 3/4 | 4 | 1 1/4 | 14.04 | | 96 | 15.570 | 1 | 2 3/4 | 4 | 1 1/4 | 17.56 | | 112 | 18.120 | 1 | 2 3/4 | 4 | 1 1/4 | 22.56
| |
China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
