| CHAIN TECHNICAL DATA | | Chain Pitch | 1/2 | | Inner Width | 0.251 | | Roller Dia. | 0.306 | | Tooth Width (T) | 0.227 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 6 | 1.170 | 3/8 | 3/8 | 21/32* | 7/8 | .07 | | 7 | 1.340 | 3/8 | 3/8 | 3/4* | 7/8 | .10 | | 8 | 1.510 | 1/2 | 1/2 | 63/64* | 7/8 | .19 | | 9 | 1.670 | 1/2 | 5/8 | 1 1/8* | 7/8 | .20 | | 10 | 1.840 | 1/2 | 3/4 | 1 1/4* | 7/8 | .27 | | 11 | 2.000 | 1/2 | 7/8 | 1 7/16* | 7/8 | .35 | | 12 | 2.170 | 1/2 | 15/16 | 1 9/16* | 7/8 | .44 | | 13 | 2.330 | 1/2 | 1 | 1 9/16 | 7/8 | .50 | | 14 | 2.490 | 1/2 | 1 1/4 | 1 3/4 | 7/8 | .57 | | 15 | 2.650 | 1/2 | 1 5/16 | 1 29/32 | 7/8 | .72 | | 16 | 2.810 | 5/8 | 1 3/8 | 2 1/16 | 7/8 | .91 | | 17 | 2.980 | 5/8 | 1 1/2 | 2 15/64 | 1 | 1.09 | | 18 | 3.140 | 5/8 | 1 5/8 | 2 3/8 | 1 | 1.25 | | 19 | 3.300 | 5/8 | 1 3/4 | 2 15/32 | 1 | 1.49 | | 20 | 3.460 | 5/8 | 1 7/8 | 2 3/4 | 1 | 1.64 | | 21 | 3.620 | 5/8 | 1 7/8 | 2 7/8 | 1 | 1.81 | | 22 | 3.780 | 5/8 | 2 | 3 | 1 | 1.93 | | 23 | 3.940 | 5/8 | 2 1/4 | 3 3/16 | 1 | 2.25 | | 24 | 4.100 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.33 | | 25 | 4.260 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.46 | | 26 | 4.420 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.50 | | 27 | 4.580 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.56 | | 28 | 4.740 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.64 | | 30 | 5.060 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.80 | | 32 | 5.380 | 5/8 | 2 1/4 | 3 1/4 | 1 | 2.96 | | 35 | 5.860 | 5/8 | 2 3/8 | 3 1/4 | 1 | 3.12 | | 36 | 6.020 | 5/8 | 2 3/8 | 3 1/4 | 1 | 3.32 | | 40 | 6.650 | 3/4 | 2 3/8 | 3 1/4 | 1 1/16 | 4.06 | | 42 | 6.970 | 3/4 | 2 3/8 | 3 1/2 | 1 1/16 | 4.10 | | 45 | 7.450 | 3/4 | 2 3/8 | 3 1/2 | 1 1/16 | 4.18 | | 48 | 7.930 | 3/4 | 2 3/8 | 3 1/2 | 1 1/16 | 4.92 | | 54 | 8.890 | 3/4 | 2 3/8 | 3 1/2 | 1 1/16 | 5.68 | | 60 | 9.840 | 3/4 | 2 3/8 | 3 1/2 | 1 1/16 | 6.78 | | 70 | 11.430 | 3/4 | 2 3/4 | 4 | 1 3/16 | 9.54 | | 72 | 11.750 | 3/4 | 2 3/4 | 4 | 1 3/16 | 9.64 | | 80 | 13.030 | 3/4 | 2 3/4 | 4 | 1 3/16 | 11.54 | | 84 | 13.660 | 3/4 | 2 3/4 | 4 | 1 3/16 | 12.20 | | 96 | 15.570 | 1 | 2 3/4 | 4 | 1 3/16 | 14.86 | | 112 | 18.120 | 1 | 2 3/4 | 4 | 1 3/16 | 19.16 | |

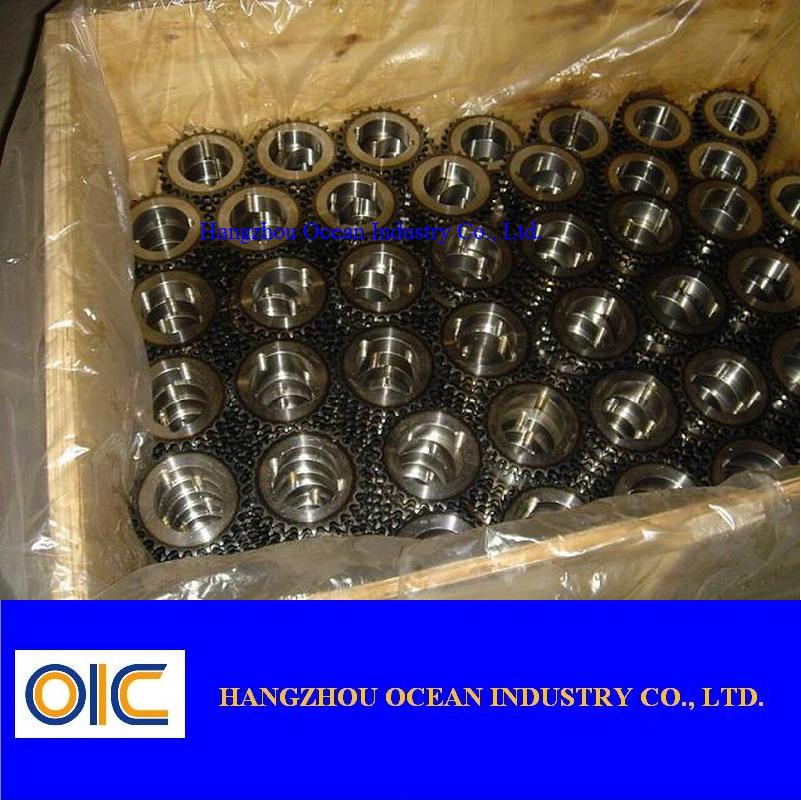

China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
