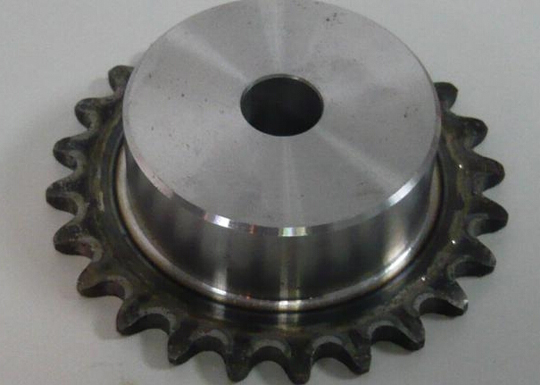

NK Standard Sprockets B Type NK41B

Availability:

Quantity:



Inquire Add to Basket

Product Description

Sprockets.pdf

Technical Data Sheet

CHAIN TECHNICAL DATA Chain Pitch 1/2 Inner Width 0.251 Roller Dia. 0.306 Tooth Width (T) 0.227

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

(Dimension : inch)


No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 6 1.170 3/8 3/8 21/32* 7/8 .07 7 1.340 3/8 3/8 3/4* 7/8 .10 8 1.510 1/2 1/2 63/64* 7/8 .19 9 1.670 1/2 5/8 1 1/8* 7/8 .20 10 1.840 1/2 3/4 1 1/4* 7/8 .27 11 2.000 1/2 7/8 1 7/16* 7/8 .35 12 2.170 1/2 15/16 1 9/16* 7/8 .44 13 2.330 1/2 1 1 9/16 7/8 .50 14 2.490 1/2 1 1/4 1 3/4 7/8 .57 15 2.650 1/2 1 5/16 1 29/32 7/8 .72 16 2.810 5/8 1 3/8 2 1/16 7/8 .91 17 2.980 5/8 1 1/2 2 15/64 1 1.09 18 3.140 5/8 1 5/8 2 3/8 1 1.25 19 3.300 5/8 1 3/4 2 15/32 1 1.49 20 3.460 5/8 1 7/8 2 3/4 1 1.64 21 3.620 5/8 1 7/8 2 7/8 1 1.81 22 3.780 5/8 2 3 1 1.93 23 3.940 5/8 2 1/4 3 3/16 1 2.25 24 4.100 5/8 2 1/4 3 1/4 1 2.33 25 4.260 5/8 2 1/4 3 1/4 1 2.46 26 4.420 5/8 2 1/4 3 1/4 1 2.50 27 4.580 5/8 2 1/4 3 1/4 1 2.56 28 4.740 5/8 2 1/4 3 1/4 1 2.64 30 5.060 5/8 2 1/4 3 1/4 1 2.80 32 5.380 5/8 2 1/4 3 1/4 1 2.96 35 5.860 5/8 2 3/8 3 1/4 1 3.12 36 6.020 5/8 2 3/8 3 1/4 1 3.32 40 6.650 3/4 2 3/8 3 1/4 1 1/16 4.06 42 6.970 3/4 2 3/8 3 1/2 1 1/16 4.10 45 7.450 3/4 2 3/8 3 1/2 1 1/16 4.18 48 7.930 3/4 2 3/8 3 1/2 1 1/16 4.92 54 8.890 3/4 2 3/8 3 1/2 1 1/16 5.68 60 9.840 3/4 2 3/8 3 1/2 1 1/16 6.78 70 11.430 3/4 2 3/4 4 1 3/16 9.54 72 11.750 3/4 2 3/4 4 1 3/16 9.64 80 13.030 3/4 2 3/4 4 1 3/16 11.54 84 13.660 3/4 2 3/4 4 1 3/16 12.20 96 15.570 1 2 3/4 4 1 3/16 14.86 112 18.120 1 2 3/4 4 1 3/16 19.16

China Sprocket manufacturer, chinese Sprocket supplier, produce: chain sprocket,taper lock sprockets,Singapore sprockets,casting sprockets,finished sprockets,plate wheels,chains wheels. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
