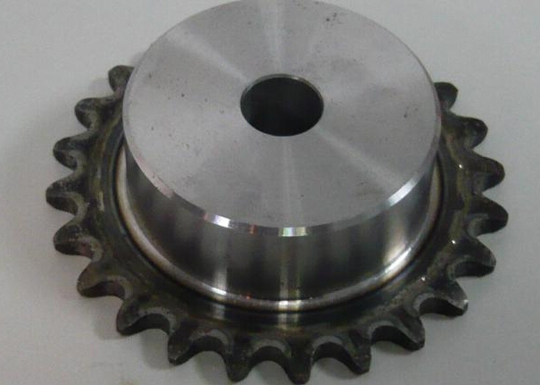

NK Standard Sprockets B Type NK60B

Availability:

Quantity:



Inquire Add to Basket

Product Description

Sprockets.pdf

Technical Data Sheet

CHAIN TECHNICAL DATA
Chain Pitch	3/4
Inner Width	0.500
Roller Dia.	0.469
Tooth Width (T)	0.459

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

(Dimension : inch)

No. Teeth	Outside Diameter Do	Bore (Inches)		Hub (Inches)		Weight Lbs. (App)
No. Teeth	Outside Diameter Do	Stock d	Rec. Max.	Dia. BD	Length Thru BL	Weight Lbs. (App)
8	2.260	5/8	5/8	1 ¹⁵/₃₂*	1 ¹/₄	.54
9	2.510	3/4	7/8	1 ⁹/₁₆*	1 ¹/₄	.64
10	2.760	3/4	1 ¹/₈	1 ¹⁵/₁₆*	1 ¹/₄	.99
11	3.000	3/4	1 ⁵/₁₆	2 ¹/₁₆*	1 ¹/₄	1.16
12	3.250	3/4	1 ³/₈	2 ³/₈*	1 ¹/₄	1.47
13	3.490	3/4	1 ¹/₂	2 ¹¹/₃₂*	1 ¹/₄	1.66
14	3.740	3/4	1 ³/₄	2 ⁹/₁₆	1 ¹/₄	2.00
15	3.980	3/4	1 ⁷/₈	2 ⁷/₈	1 ¹/₄	2.51
16	4.220	3/4	2	3 ¹/₁₆	1 ¹/₄	2.81
17	4.460	3/4	2 ¹/₄	3 ¹/₄	1 ¹/₄	3.22
18	4.700	3/4	2 ³/₈	3 ¹/₂	1 ¹/₄	3.72
19	4.950	3/4	2 ³/₈	3 ¹/₂	1 ¹/₄	3.92
20	5.190	3/4	2 ⁵/₈	3 ⁷/₈	1 ¹/₄	4.63
21	5.430	3/4	2 ³/₄	4	1 ¹/₄	5.00
22	5.670	3/4	2 ³/₄	4	1 ¹/₄	5.25
23	5.910	3/4	2 ³/₄	4	1 ¹/₄	5.48
24	6.150	3/4	2 ³/₄	4	1 ¹/₄	5.78
25	6.390	3/4	2 ³/₄	4	1 ¹/₄	6.13
26	6.630	3/4	2 ³/₄	4	1 ¹/₄	6.38
27	6.870	3/4	2 ³/₄	4	1 ¹/₄	6.72
28	7.110	3/4	2 ³/₄	4	1 ¹/₄	6.88
29	7.350	3/4	2 ³/₄	4	1 ¹/₄	7.28
30	7.590	3/4	2 ³/₄	4	1 ¹/₄	7.58
31	7.830	3/4	2 ³/₄	4	1 ¹/₄	7.72
32	8.070	3/4	2 ³/₄	4	1 ¹/₄	8.26
33	8.300	1	2 ³/₄	4	1 ¹/₄	8.42
34	8.540	1	2 ³/₄	4	1 ¹/₄	8.80
35	8.780	1	2 ³/₄	4	1 ¹/₄	9.04
36	9.020	1	2 ³/₄	4	1 ¹/₄	9.60
37	9.260	1	2 ³/₄	4	1 ¹/₄	10.24
38	9.500	1	2 ³/₄	4 ¹/₄	1 ¹/₄	10.84
39	9.740	1	2 ³/₄	4 ¹/₄	1 ¹/₄	11.36
40	9.980	1	2 ³/₄	4 ¹/₄	1 ¹/₄	11.50
41	10.220	1	2 ³/₄	4 ¹/₄	1 ¹/₄	12.14
42	10.460	1	2 ³/₄	4 ¹/₄	1 ¹/₄	12.74
43	10.700	1	2 ³/₄	4 ¹/₄	1 ¹/₄	13.00
44	10.940	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	13.88
45	11.180	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	13.98
46	11.420	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	14.60
47	11.650	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	15.00
48	11.890	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	15.82
49	12.130	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	15.90
50	12.370	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	17.66
51	12.610	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	16.98
52	12.850	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	17.93
53	13.090	15/16	2 ³/₄	4 ¹/₄	1 ¹/₄	17.99
54	13.330	15/16	2 ³/₄	4 ¹/₄	1 ³/₄	21.60
55	13.570	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	21.14
56	13.810	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	21.88
57	14.040	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	22.26
58	14.280	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	22.80
59	14.520	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	23.86
60	14.760	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	25.22
64	15.720	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	27.40
65	15.960	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	28.92
66	16.190	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	30.10
68	16.670	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	30.38
70	17.150	1 ¹/₄	2 ³/₄	4 ¹/₄	1 ³/₄	31.98
72	17.630	1 ¹/₄	2 ³/₄	4 ¹/₄	2	34.18
76	18.580	1 ¹/₄	2 ³/₄	4 ¹/₄	2	38.06
80	19.540	1 ¹/₄	2 ³/₄	4 ¹/₄	2	41.88
84	20.490	1 ¹/₄	3 ¹/₄	4 ³/₄	2	46.46
90	21.930	1 ¹/₄	3 ⁵/₁₆	5	2 ¹/₄	63.20
96	23.360	1 ¹/₄	3 ³/₄	5 ¹/₂	2 ¹/₄	63.08
112	27.180	1 ¹/₄	3 ³/₄	5 ¹/₂	2 ¹/₄	81.78
