| CHAIN TECHNICAL DATA | | Chain Pitch | | 3/8 | | Inner Width | | 0.188 | | Bush Dia. | | 0.200 | | Tooth Width | (T)
(M) | 0.162
0.561 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 12 | 1.630 | 1/2 | 9/16 | 63/64 | 1 1/4 | .32 | | 13 | 1.750 | 1/2 | 11/16 | 1 7/64 | 1 1/4 | .36 | | 14 | 1.870 | 1/2 | 7/8 | 1 1/4 | 1 1/4 | .44 | | 15 | 1.990 | 1/2 | 15/16 | 1 13/32 | 1 1/4 | .56 | | 16 | 2.110 | 1/2 | 15/16 | 1 15/32 | 1 1/4 | .64 | | 17 | 2.230 | 1/2 | 1 1/16 | 1 19/32 | 1 1/4 | .74 | | 18 | 2.350 | 1/2 | 1 3/16 | 1 23/32 | 1 1/4 | .84 | | 19 | 2.470 | 1/2 | 1 5/16 | 1 7/8 | 1 1/4 | .96 | | 20 | 2.590 | 3/4 | 1 5/16 | 1 15/16 | 1 3/8 | 1.08 | | 21 | 2.710 | 3/4 | 1 3/8 | 2 1/16 | 1 3/8 | 1.24 | | 22 | 2.830 | 3/4 | 1 7/16 | 2 3/16 | 1 3/8 | 1.42 | | 23 | 2.950 | 3/4 | 1 1/2 | 2 1/4 | 1 3/8 | 1.54 | | 24 | 3.070 | 3/4 | 1 1/2 | 2 1/4 | 1 3/8 | 1.62 | | 25 | 3.190 | 3/4 | 1 1/2 | 2 1/4 | 1 3/8 | 1.66 | | 26 | 3.310 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 1.98 | | 30 | 3.790 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 2.34 | | 36 | 4.510 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 3.00 | | 42 | 5.230 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 3.80 | | 48 | 5.950 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 4.66 | | 52 | 6.430 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 5.40 | | 60 | 7.380 | 3/4 | 1 3/4 | 2 1/2 | 1 3/8 | 6.84 | | 68 | 8.340 | 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 10.01 | | 72 | 8.810 | 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 11.04 | | 76 | 9.290 | 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 11.94 | | 84 | 10.250 | 3/4 | 2 3/8 | 3 1/2 | 1 1/2 | 14.98 | | 95 | 11.560 | 1 | 2 3/8 | 3 1/2 | 1 1/2 | 17.42 | | 96 | 11.680 | 1 | 2 3/8 | 3 1/2 | 1 1/2 | 18.14 | | 102 | 12.400 | 1 | 2 3/8 | 3 1/2 | 1 1/2 | 19.92 | |
- Maximum Bores shown will accommodate Standard Keyseat and Setscrew over Keyseat.
Slightly larger Bores are passible with no Ks., Shallow Ks., or S.S. at angle to Ks.

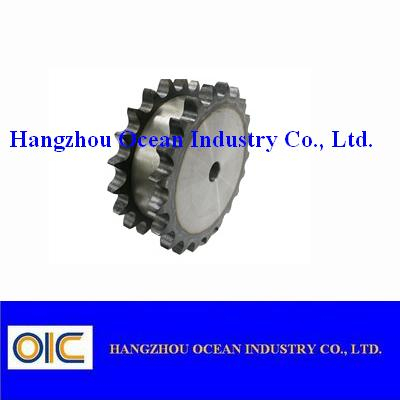

NOTE : Double 35 stock sprockets with 25 teeth or less have Hardened Teeth. |
