| CHAIN TECHNICAL DATA | | Chain Pitch | | 1/2 | | Inner Width | | 0.313 | | Roller Dia. | | 0.312 | | Tooth Width | (T)
(M) | 0.275
0.841 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 11 | 2.000 | 1/2 | 3/4 | 1 7/16* | 11/2 | .62 | | 12 | 2.170 | 1/2 | 15/16 | 1 9/16* | 11/2 | .76 | | 13 | 2.330 | 1/2 | 1 | 1 1/2 | 11/2 | .86 | | 14 | 2.490 | 1/2 | 1 1/8 | 1 11/16 | 11/2 | 1.08 | | 15 | 2.650 | 1/2 | 1 1/4 | 1 13/16 | 11/2 | 1.24 | | 16 | 2.810 | 5/8 | 1 3/8 | 2 | 11/2 | 1.42 | | 17 | 2.980 | 5/8 | 1 7/16 | 2 1/8 | 11/2 | 1.64 | | 18 | 3.140 | 5/8 | 11/2 | 2 5/16 | 11/2 | 1.92 | | 19 | 3.300 | 5/8 | 1 3/4 | 2 1/2 | 11/2 | 2.22 | | 20 | 3.460 | 5/8 | 1 7/8 | 2 5/8 | 1 5/8 | 2.64 | | 21 | 3.620 | 5/8 | 1 7/8 | 2 3/4 | 1 5/8 | 2.94 | | 22 | 3.780 | 5/8 | 1 7/8 | 2 7/8 | 1 5/8 | 3.18 | | 23 | 3.940 | 5/8 | 2 | 3 | 1 5/8 | 3.52 | | 24 | 4.100 | 5/8 | 2 1/4 | 3 1/4 | 1 5/8 | 4.04 | | 25 | 4.260 | 5/8 | 2 1/4 | 3 1/4 | 1 5/8 | 4.26 | | 26 | 4.420 | 5/8 | 2 1/4 | 3 1/4 | 1 5/8 | 4.48 | | 30 | 5.060 | 7/8 | 2 1/4 | 3 1/4 | 1 5/8 | 5.34 | | 35 | 5.860 | 7/8 | 2 1/4 | 3 1/4 | 1 5/8 | 6.80 | | 36 | 6.020 | 15/16 | 2 1/2 | 3 3/4 | 1 5/8 | 7.20 | | 40 | 6.650 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 9.40 | | 42 | 6.970 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 10.20 | | 45 | 7.450 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 11.36 | | 48 | 7.930 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 12.66 | | 52 | 8.570 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 14.46 | | 54 | 8.890 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 15.48 | | 60 | 9.840 | 15/16 | 2 1/2 | 3 3/4 | 1 3/4 | 18.60 | | 68 | 11.120 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 24.96 | | 72 | 11.750 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 27.88 | | 76 | 12.390 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 30.18 | | 84 | 13.660 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 36.24 | | 95 | 15.410 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 38.84 | | 96 | 15.570 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 39.50 | | 102 | 16.530 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 42.72 | | 112 | 18.120 | 1 3/16 | 2 3/4 | 4 1/4 | 2 1/8 | 55.54 | |
- *Has recessed groove in hub for chain clearance.
Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger Bores are passible with no Ks., Shallow Ks., or S.S. at angle to Ks.

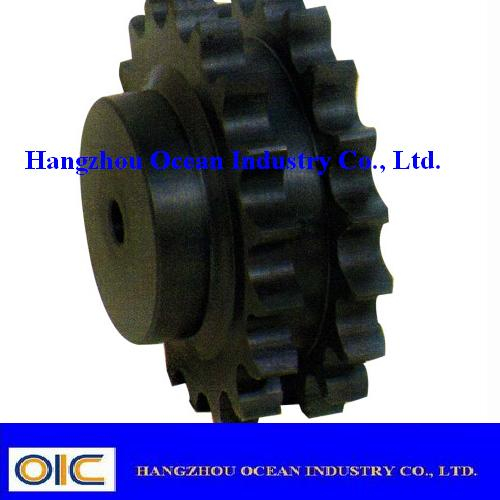

NOTE : Double 40 stock sprockets with 25 teeth or less have Hardened Teeth. |
