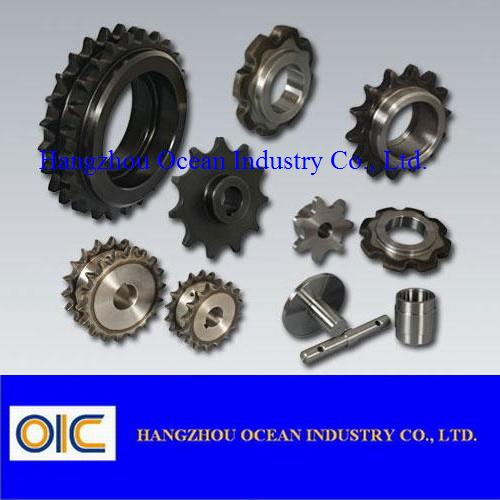

| CHAIN TECHNICAL DATA | | Chain Pitch | | 5/8 | | Inner Width | | 0.375 | | Roller Dia. | | 0.400 | | Tooth Width | (T)
(M) | 0.332
1.045 | | "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS" - BIG INVENTORY.
- REASONABLE PRICES.
- DELIVERY ON TIME.
- AVAILABLE MADE-TO-ORDER SPROCKET.
|
(Dimension : inch)
No.
Teeth | Outside
Diameter
Do | Bore (Inches) | Hub (Inches) | Weight
Lbs.
(App) | Stock
d | Rec.
Max. | Dia.
BD | Length
Thru
BL | | 11 | 2.500 | 5/8 | 15/16 | 1 15/32 | 1 3/4 | .96 | | 12 | 2.710 | 5/8 | 1 1/8 | 1 11/16 | 1 3/4 | 1.25 | | 13 | 2.910 | 5/8 | 1 5/16 | 1 7/8 | 1 3/4 | 1.56 | | 14 | 3.110 | 5/8 | 1 3/8 | 2 1/16 | 1 3/4 | 1.86 | | 15 | 3.320 | 3/4 | 1 1/2 | 2 5/16 | 1 3/4 | 2.22 | | 16 | 3.520 | 3/4 | 1 3/4 | 2 1/2 | 1 3/4 | 2.62 | | 17 | 3.720 | 3/4 | 1 7/8 | 2 11/16 | 1 3/4 | 3.04 | | 18 | 3.920 | 3/4 | 1 15/16 | 2 15/16 | 1 3/4 | 3.58 | | 19 | 4.120 | 1 | 2 1/8 | 3 1/8 | 1 3/4 | 3.90 | | 20 | 4.320 | 1 | 2 1/4 | 3 1/4 | 1 3/4 | 4.26 | | 21 | 4.520 | 1 | 2 3/8 | 3 1/2 | 1 3/4 | 4.90 | | 22 | 4.720 | 1 | 2 3/8 | 3 9/16 | 1 7/8 | 5.58 | | 23 | 4.920 | 1 | 2 1/2 | 3 5/8 | 1 7/8 | 6.10 | | 24 | 5.120 | 1 | 2 1/2 | 3 5/8 | 1 7/8 | 6.50 | | 25 | 5.320 | 1 | 2 1/2 | 3 5/8 | 1 7/8 | 6.94 | | 26 | 5.520 | 1 | 2 1/2 | 3 3/4 | 1 7/8 | 7.54 | | 30 | 6.320 | 1 | 2 1/2 | 3 3/4 | 1 7/8 | 9.40 | | 32 | 6.720 | 1 | 2 1/2 | 3 3/4 | 1 7/8 | 10.46 | | 35 | 7.320 | 1 | 2 1/2 | 3 3/4 | 1 7/8 | 12.28 | | 36 | 7.520 | 1 3/16 | 2 3/4 | 4 | 2 1/8 | 13.94 | | 40 | 8.320 | 1 3/16 | 2 3/4 | 4 | 2 1/8 | 16.54 | | 42 | 8.720 | 1 3/16 | 2 3/4 | 4 | 2 1/8 | 17.92 | | 45 | 9.310 | 1 3/16 | 2 3/4 | 4 | 2 1/8 | 20.30 | | 48 | 9.910 | 1 3/16 | 2 3/4 | 4 1/4 | 2 3/8 | 24.08 | | 52 | 10.710 | 1 3/16 | 2 3/4 | 4 1/4 | 2 3/8 | 27.42 | | 54 | 11.110 | 1 3/16 | 2 3/4 | 4 1/4 | 2 3/8 | 29.16 | | 60 | 12.300 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 35.88 | | 68 | 13.890 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 44.98 | | 72 | 14.690 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 50.22 | | 76 | 15.486 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 45.64 | | 84 | 17.080 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 51.64 | | 95 | 19.270 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 64.32 | | 96 | 19.470 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 67.42 | | 102 | 20.660 | 1 5/16 | 3 | 4 1/2 | 2 3/8 | 72.68 | | 112 | 22.650 | 1 5/16 | 3 5/16 | 5 1/4 | 2 3/8 | 90.22 | |
- Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger Bores are passible with no Ks., Shallow Ks., or S.S. at angle to Ks.
NOTE : Double 50 stock sprockets with 25 teeth or less have Hardened Teeth. |
